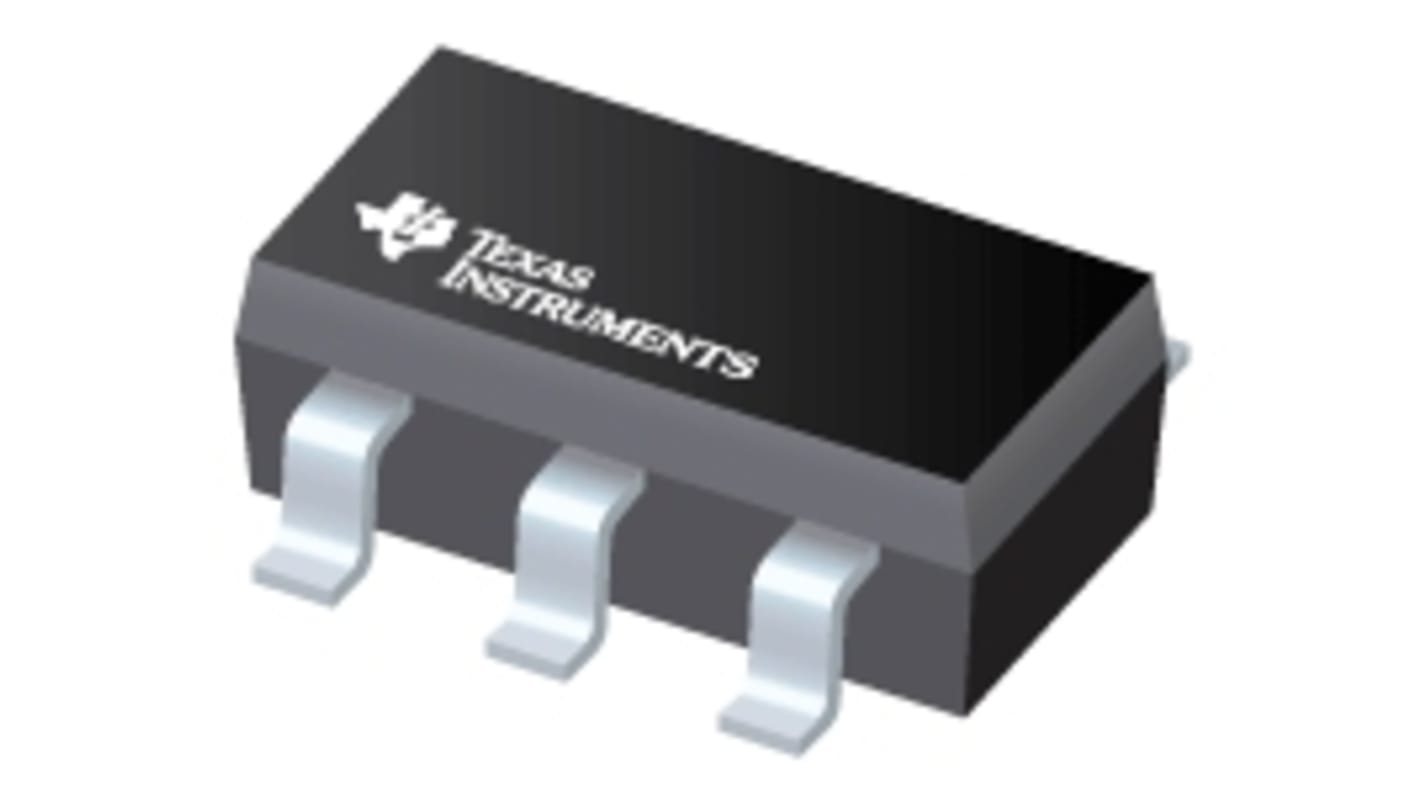

Texas Instruments TPS22942DCKR Low Side, Current Limit Load Power Switch IC 5-Pin, SC-70
- RS Stock No.:
- 252-8767
- Mfr. Part No.:
- TPS22942DCKR
- Brand:
- Texas Instruments
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£5.53
(exc. VAT)
£6.64
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 5,730 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.553 | £5.53 |
| 50 - 90 | £0.526 | £5.26 |
| 100 - 240 | £0.472 | £4.72 |
| 250 - 490 | £0.449 | £4.49 |
| 500 + | £0.438 | £4.38 |
*price indicative
- RS Stock No.:
- 252-8767
- Mfr. Part No.:
- TPS22942DCKR
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Power Switch Type | Current Limit Load | |
| Product Type | Power Switch IC | |
| Power Switch Topology | Low Side | |
| Mount Type | Surface | |
| Package Type | SC-70 | |
| Minimum Supply Voltage | 1.62V | |
| Pin Count | 5 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Operating Current | 100mA | |
| Length | 2.15mm | |
| Height | 1.1mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Series | TPS2294x | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Power Switch Type Current Limit Load | ||
Product Type Power Switch IC | ||
Power Switch Topology Low Side | ||
Mount Type Surface | ||
Package Type SC-70 | ||
Minimum Supply Voltage 1.62V | ||
Pin Count 5 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Operating Current 100mA | ||
Length 2.15mm | ||
Height 1.1mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
Series TPS2294x | ||
