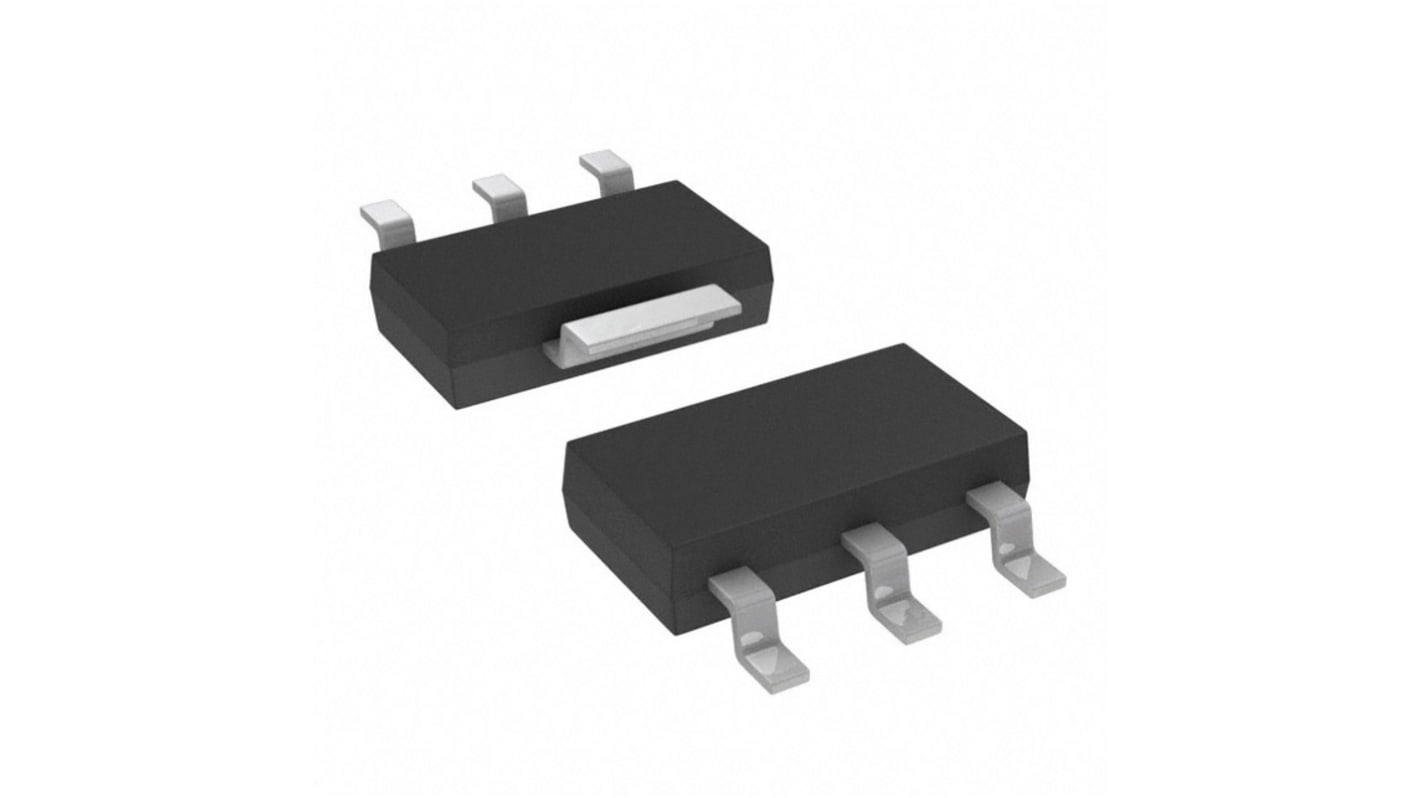

Infineon BTS3207NHUMA1 Low Side Power Switch IC 4-Pin, PG-SOT223-4
- RS Stock No.:
- 250-0577
- Mfr. Part No.:
- BTS3207NHUMA1
- Brand:
- Infineon
Subtotal (4000 units, on reels of 4000)*
£1,392.00
(exc. VAT)
£1,672.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 03 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 4000 + | £0.348 | £1,392.00 |
*price indicative
- RS Stock No.:
- 250-0577
- Mfr. Part No.:
- BTS3207NHUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Topology | Low Side | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 500mΩ | |
| Number of Outputs | 5 | |
| Power Rating | 3.8W | |
| Interface Type | Discrete | |
| Mount Type | Surface | |
| Package Type | PG-SOT223-4 | |
| Pin Count | 4 | |
| Maximum Supply Voltage | 42V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Operating Current | 0.64A | |
| Height | 1.6mm | |
| Width | 3.5mm | |
| Length | 6.5mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC | |
| Series | HITFET BTS 3207N | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Topology Low Side | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 500mΩ | ||
Number of Outputs 5 | ||
Power Rating 3.8W | ||
Interface Type Discrete | ||
Mount Type Surface | ||
Package Type PG-SOT223-4 | ||
Pin Count 4 | ||
Maximum Supply Voltage 42V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Operating Current 0.64A | ||
Height 1.6mm | ||
Width 3.5mm | ||
Length 6.5mm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC | ||
Series HITFET BTS 3207N | ||
The Infineon N channel vertical power FET in smart SIPMOS technology. It is fully protected by embedded protection functions. It is used in variety of applications like all kinds of resistive, inductive and capacitive loads in switching or linear applications, the μC compatible power switch for 12 V DC applications, it also replaces electromechanical relays and discrete circuits.
Fast demagnetization of inductive loads
Optimized Electromagnetic Compatibility (EMC)
Overload protection, current limitation, short circuit protection and thermal shutdown with restart
Electrostatic Discharge Protection (ESD) and Analog driving possible
