Infineon BTF60702ERVXUMA1, 1High Side Power Switch IC

View all Power Switch ICs
Bulk discount available

Subtotal 10 units (supplied on a continuous strip)*

£35.10

(exc. VAT)

£42.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,046 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
10 - 24£3.51
25 - 49£3.43
50 - 99£3.21
100 +£2.99

*price indicative

Packaging Options:
RS Stock No.:
250-0573P
Mfr. Part No.:
BTF60702ERVXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Power Switch Topology

High Side

Switch On Resistance

135mΩ

Number of Channels

1

Maximum Operating Supply Voltage

48 V

Maximum Operating Current

3A

Number of Outputs

1

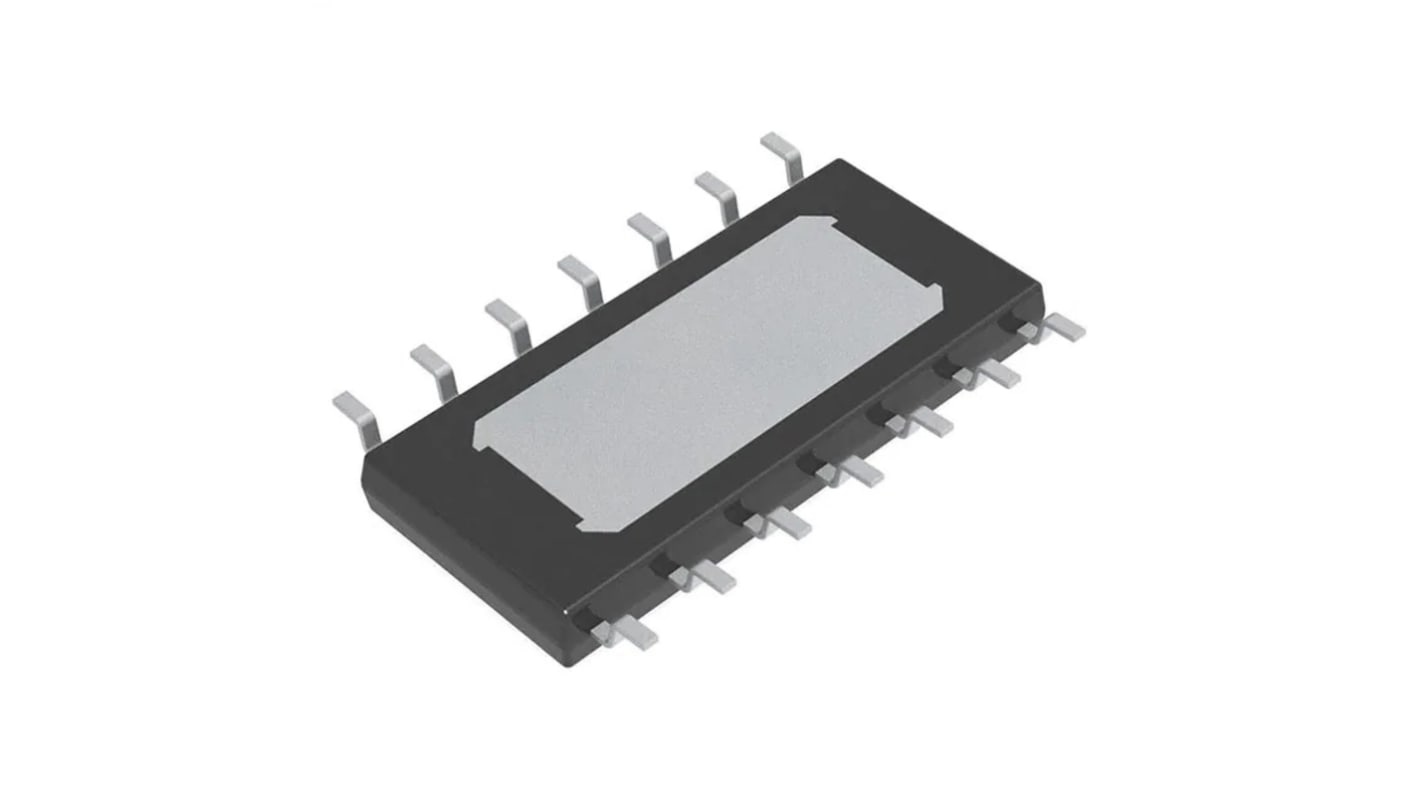

The Infineon makes this 60 mΩ dual channel smart High-Side power switch, embedded in a PG-TDSO-14, exposed pad package, providing protective functions and diagnosis. The power transistor is built by a N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 HV technology. It is specially designed to drive valve applications in the harsh automotive environment. For lighting applications the nominal bulb load of P10W+P5W 24 V or P10W 12 V is considered.

Fast demagnetization of inductive loads
Optimized Electromagnetic Compatibility (EMC)
Overload protection, current limitation, short circuit protection, thermal shutdown with restart
Reverse battery protection with external resistor and Electrostatic Discharge (ESD) protection
