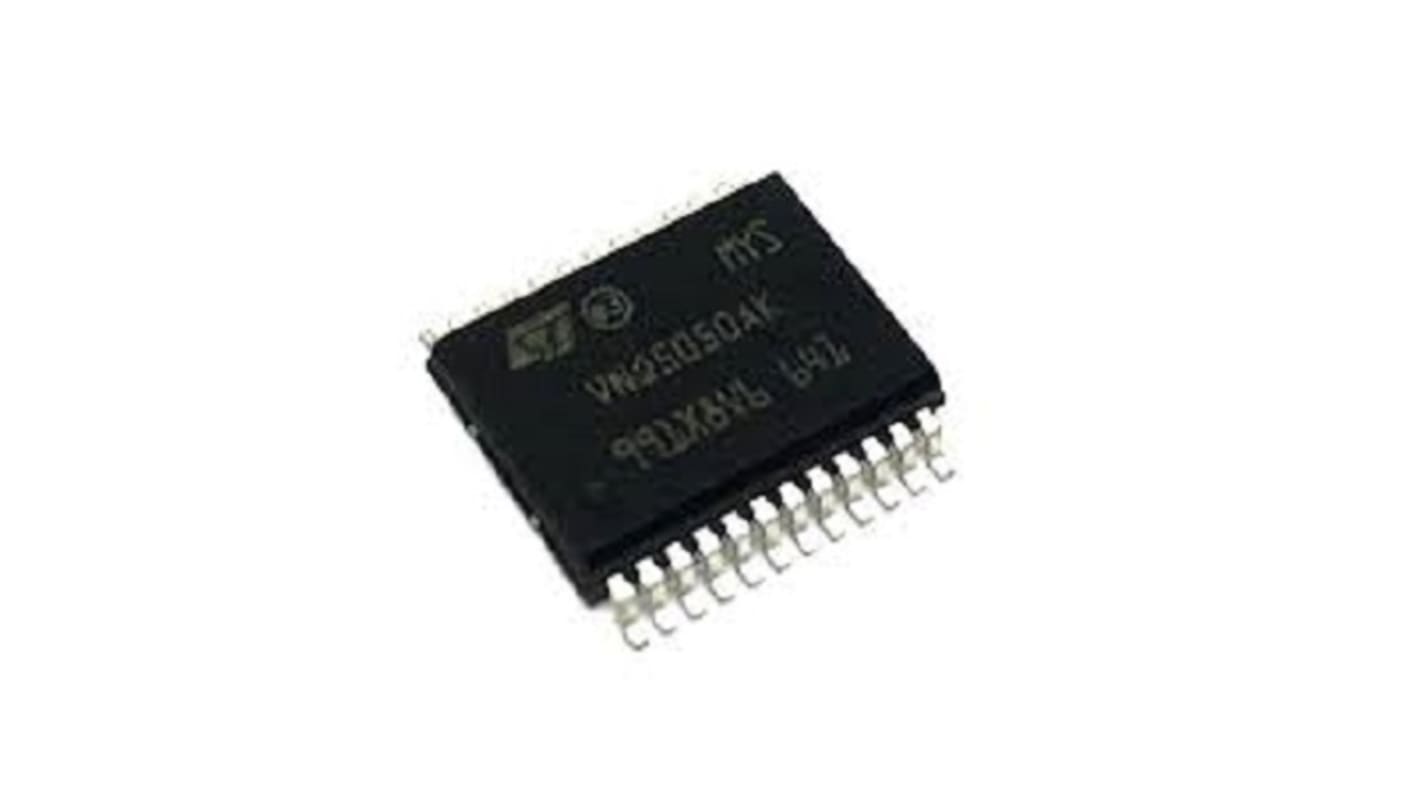

STMicroelectronics High Side Power Switch IC 24-Pin, PowerSSO-24
- RS Stock No.:
- 249-6727
- Mfr. Part No.:
- IPS1025HTR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 1000 units)*
£3,427.00
(exc. VAT)
£4,112.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £3.427 | £3,427.00 |
*price indicative
- RS Stock No.:
- 249-6727
- Mfr. Part No.:
- IPS1025HTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Power Switch Topology | High Side | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 15mΩ | |
| Mount Type | Surface | |
| Package Type | PowerSSO-24 | |
| Minimum Supply Voltage | 8V | |
| Maximum Supply Voltage | 60V | |
| Pin Count | 24 | |
| Operating Current | 5.6A | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Height | 2.47mm | |
| Standards/Approvals | IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-2 | |
| Length | 10.5mm | |
| Width | 7.6 mm | |
| Automotive Standard | No | |
| Series | IPS1025H | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Power Switch Topology High Side | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 15mΩ | ||
Mount Type Surface | ||
Package Type PowerSSO-24 | ||
Minimum Supply Voltage 8V | ||
Maximum Supply Voltage 60V | ||
Pin Count 24 | ||
Operating Current 5.6A | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Height 2.47mm | ||
Standards/Approvals IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-2 | ||
Length 10.5mm | ||
Width 7.6 mm | ||
Automotive Standard No | ||
Series IPS1025H | ||
The STMicroelectronics single high-side switch ICs able to drive capacitive, resistive or inductive loads with one side connected to ground with overload event diagnostic pin over-temperature event diagnostic pin.
8 V to 60 V operating supply voltage range
Fast demagnetization of inductive loads
Output overload and over-temperature protections
Case over-temperature protection
Ground disconnection protection
Package Power SSO-24
