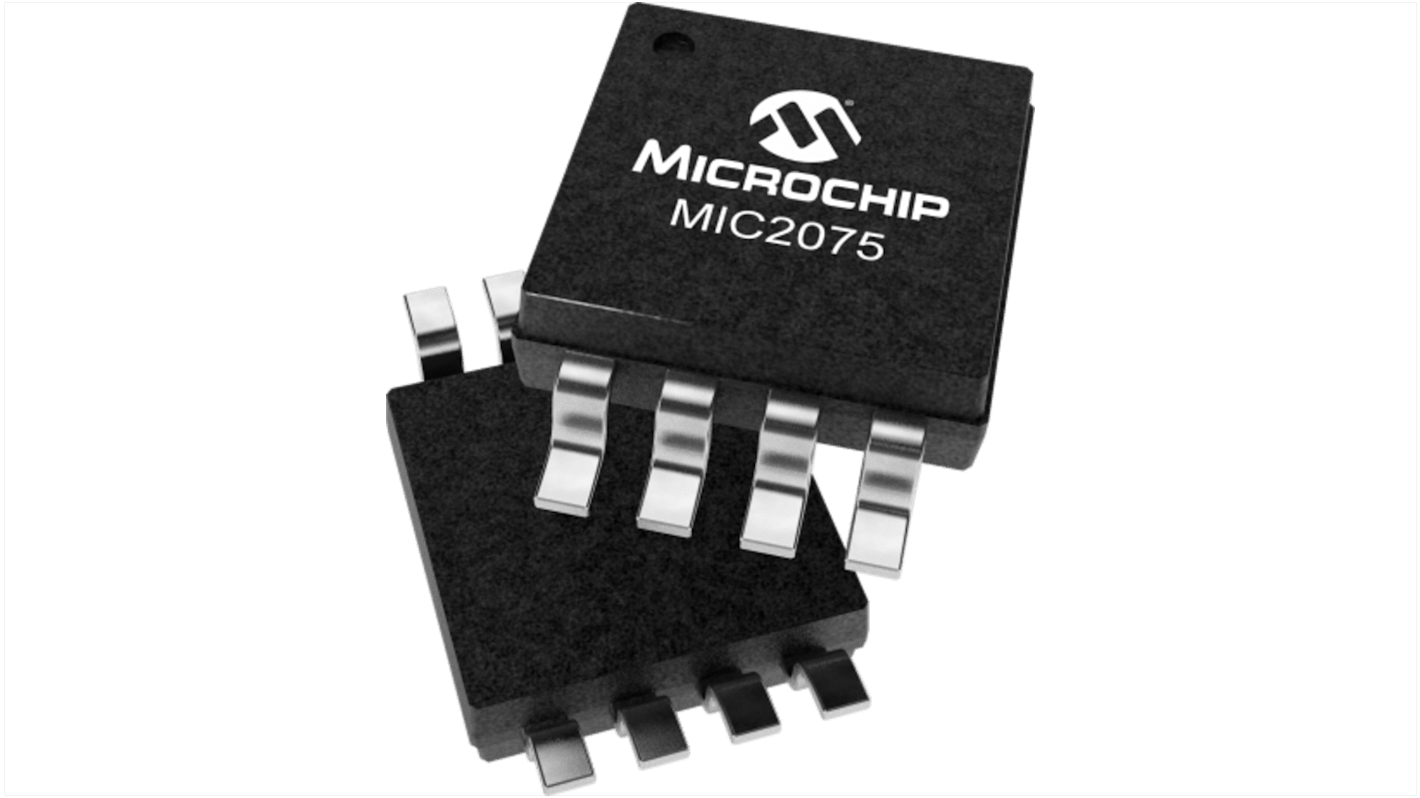

Microchip MIC2075-1YMM-TR High Side 1, High Side Power Switch IC 8-Pin, SOIC
- RS Stock No.:
- 239-5599
- Mfr. Part No.:
- MIC2075-1YMM-TR
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.75
(exc. VAT)
£9.30
(inc. VAT)
Add 80 units to get free delivery
In Stock
- Plus 2,400 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.775 | £7.75 |
| 50 - 90 | £0.647 | £6.47 |
| 100 - 240 | £0.588 | £5.88 |
| 250 - 990 | £0.577 | £5.77 |
| 1000 + | £0.566 | £5.66 |
*price indicative
- RS Stock No.:
- 239-5599
- Mfr. Part No.:
- MIC2075-1YMM-TR
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Power Switch Type | High Side | |
| Power Switch Topology | High Side | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 90mΩ | |
| Number of Outputs | 5 | |
| Number of Inputs | 1 | |
| Interface Type | Serial | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 2.7V | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Operating Current | 500mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Length | 4.93mm | |
| Height | 1.63mm | |
| Width | 3.94 mm | |
| Automotive Standard | No | |
| Series | MIC2075 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Power Switch Type High Side | ||
Power Switch Topology High Side | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 90mΩ | ||
Number of Outputs 5 | ||
Number of Inputs 1 | ||
Interface Type Serial | ||
Mount Type Surface | ||
Minimum Supply Voltage 2.7V | ||
Package Type SOIC | ||
Pin Count 8 | ||
Maximum Supply Voltage 5.5V | ||
Operating Current 500mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Length 4.93mm | ||
Height 1.63mm | ||
Width 3.94 mm | ||
Automotive Standard No | ||
Series MIC2075 | ||
The Microchip MIC2075 series of high-side MOSFET switches are optimized for general-purpose power distribution requiring circuit protection. The MIC2025/75 are internally current limited and have thermal shutdown that protects the device and load. The MIC2075 offers “smart” thermal shutdown that reduces current consumption in fault modes. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output.
Single channel power distribution switch with circuit breaker mode
Maximum on-Resistance of 140 mΩ
Operating range of 2.7 V to 5.5 V
Minimum continuous output current of 500 mA
Short-circuit protection with thermal shutdown
Ambient temperature range is –40°C to +85°C
