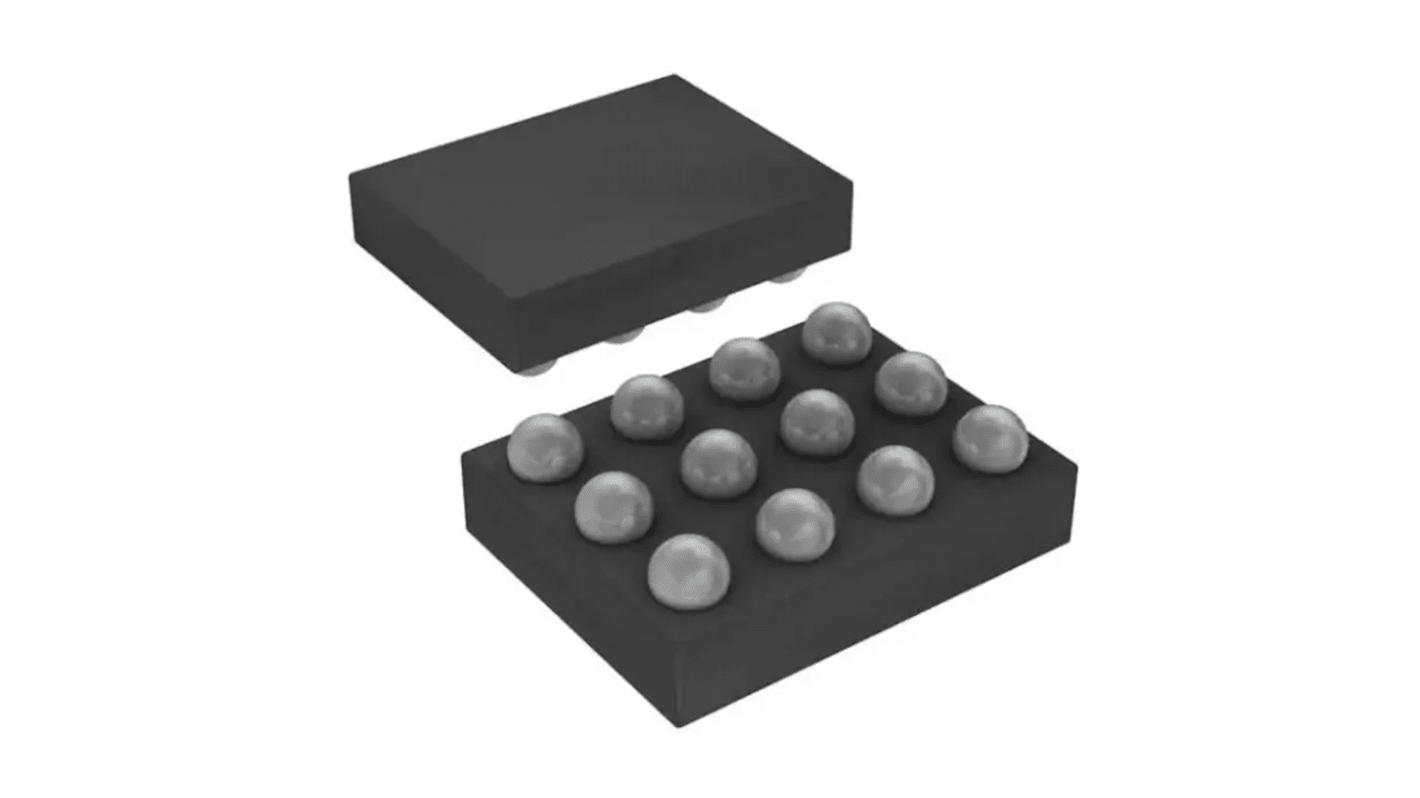

onsemi Low Side 2, Low Side Power Switch IC 12-Pin, WLCSP

View all Power Switch ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
233-6800
Mfr. Part No.:
FPF3381UCX
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Power Switch Topology

Low Side

Power Switch Type

Low Side

Product Type

Power Switch IC

Number of Outputs

3

Number of Inputs

2

Mount Type

Surface

Minimum Supply Voltage

-0.3V

Package Type

WLCSP

Maximum Supply Voltage

30V

Pin Count

12

Minimum Operating Temperature

-40°C

Operating Current

3.3mA

Maximum Operating Temperature

125°C

Height

0.75mm

Width

3 mm

Standards/Approvals

RoHS

Length

3mm

Series

FPF3381

Automotive Standard

No

The ON Semiconductor FPF3381UCX is an OVP with integrated ultra−low on−resistance single channel switch. The device contains an N−MOSFET that can operate over an input voltage range of 2.8 V to 23 V and can support a maximum continuous current of 5 A. When the input voltage exceeds the over−voltage threshold, the internal FET is turned off immediately to prevent damage to the protected downstream components. The device is available in a small 12−bumps WLCSP package and operate over the free−air temperature range of −40°C to +85°C.

The device offers Over-voltage protection up to +28 V

It has an integrated TVS of ±110 V for IEC61000-4-5

It has internal low RDS(on) NMOS transistors of typical 15 mꭥ

It offers Programmable Over-Voltage Lockout (OVLO)
