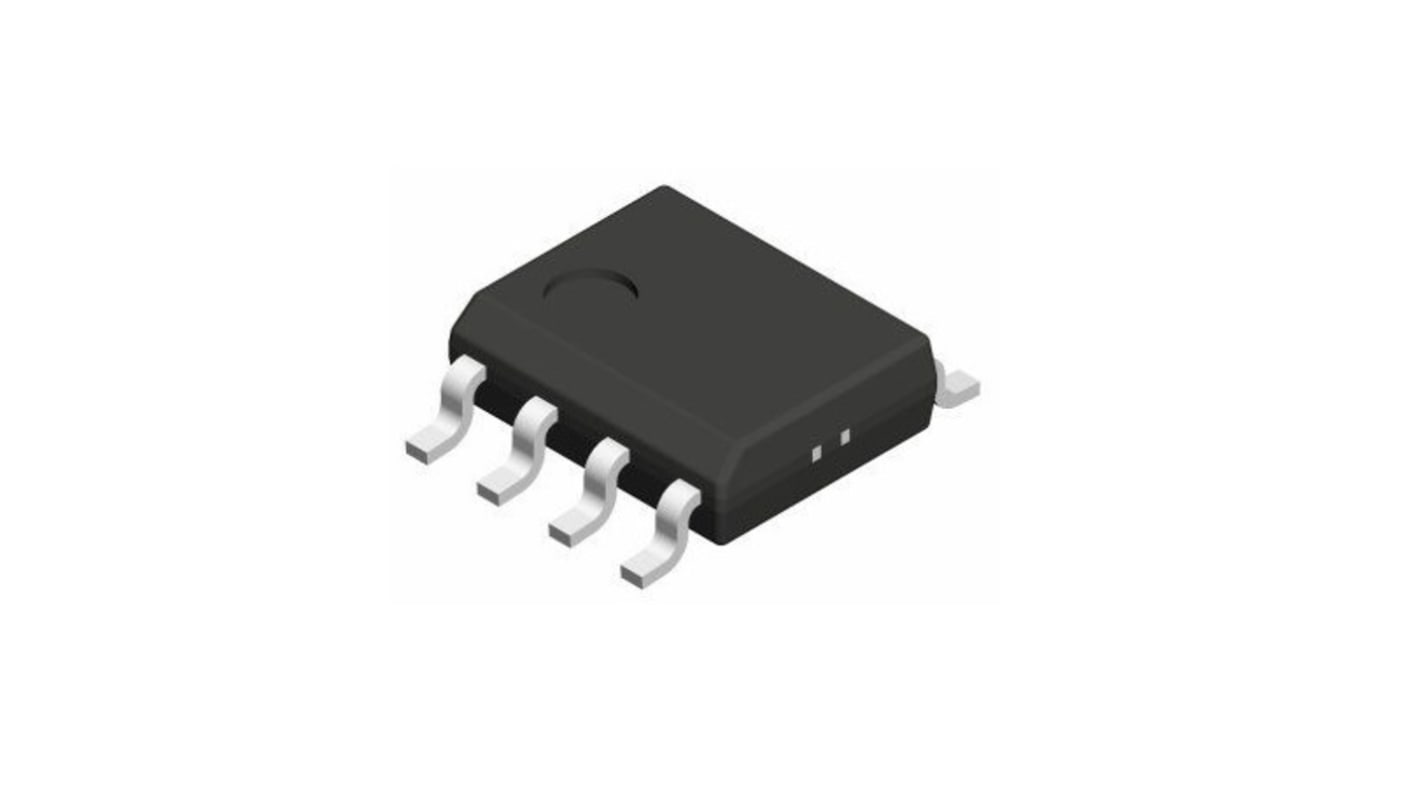

onsemi NCV8412ADDR2G Low Side 1, Low Side Power Switch IC 8-Pin, SOIC
- RS Stock No.:
- 229-6434
- Mfr. Part No.:
- NCV8412ADDR2G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 5 units)*
£10.51
(exc. VAT)
£12.61
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 2,110 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £2.102 | £10.51 |
| 50 - 95 | £1.812 | £9.06 |
| 100 - 495 | £1.57 | £7.85 |
| 500 - 995 | £1.38 | £6.90 |
| 1000 + | £1.256 | £6.28 |
*price indicative
- RS Stock No.:
- 229-6434
- Mfr. Part No.:
- NCV8412ADDR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Power Switch IC | |
| Power Switch Type | Low Side | |
| Power Switch Topology | Low Side | |
| Switch On Resistance RdsOn | 145mΩ | |
| Number of Outputs | 2 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 42V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Operating Current | 5.9A | |
| Standards/Approvals | RoHS | |
| Series | NCV8412 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Power Switch IC | ||
Power Switch Type Low Side | ||
Power Switch Topology Low Side | ||
Switch On Resistance RdsOn 145mΩ | ||
Number of Outputs 2 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
Maximum Supply Voltage 42V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Operating Current 5.9A | ||
Standards/Approvals RoHS | ||
Series NCV8412 | ||
Automotive Standard No | ||
The ON Semiconductor NCV8412 series is a three terminal protected low side smart discrete FET. The protection features include delta thermal shutdown, overcurrent, over temperature, ESD and integrated drain to gate clamping for overvoltage protection. The device also offers fault indication via the gate pin. This device is suitable for harsh automotive environments.
Higher reliability and damage prevention
Best in class RSC performance
Analog drive capability
Pb free
