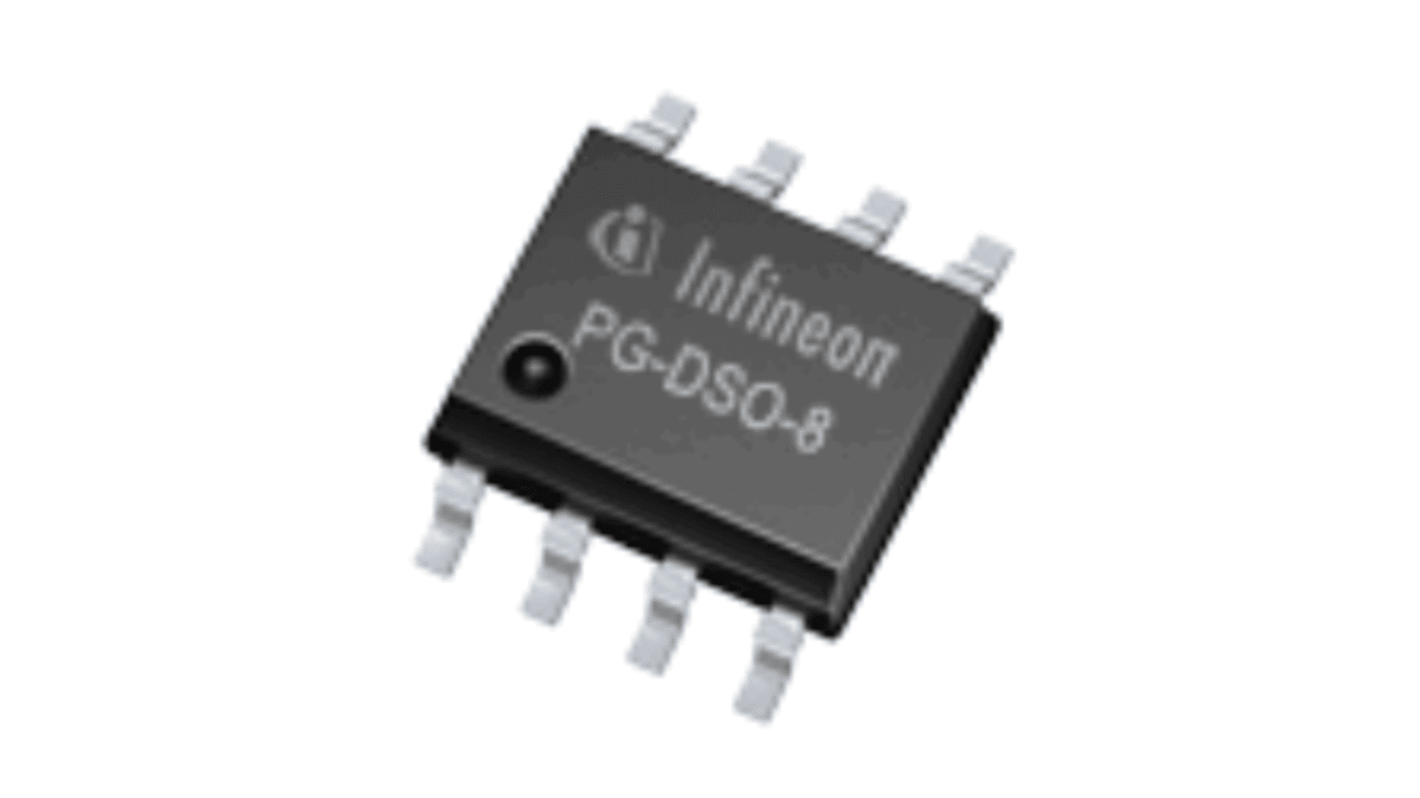

Infineon BTS4175SGAXUMA1 1, Low Side Power Switch IC 8-Pin, TDSO-8
- RS Stock No.:
- 229-1771
- Mfr. Part No.:
- BTS4175SGAXUMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 10 units)*
£8.59
(exc. VAT)
£10.31
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.859 | £8.59 |
| 50 - 90 | £0.816 | £8.16 |
| 100 - 240 | £0.799 | £7.99 |
| 250 - 490 | £0.747 | £7.47 |
| 500 + | £0.696 | £6.96 |
*price indicative
- RS Stock No.:
- 229-1771
- Mfr. Part No.:
- BTS4175SGAXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Type | Low Side | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 125mΩ | |
| Number of Outputs | 5 | |
| Power Rating | 1.5W | |
| Number of Inputs | 1 | |
| Interface Type | CMOS | |
| Mount Type | Surface | |
| Package Type | TDSO-8 | |
| Minimum Supply Voltage | 6V | |
| Maximum Supply Voltage | 31V | |
| Pin Count | 8 | |
| Operating Current | 0.002A | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Length | 5mm | |
| Width | 6 mm | |
| Standards/Approvals | RoHS, AEC | |
| Height | 1.75mm | |
| Series | BTS4175SGA | |
| Automotive Standard | AEC | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Type Low Side | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 125mΩ | ||
Number of Outputs 5 | ||
Power Rating 1.5W | ||
Number of Inputs 1 | ||
Interface Type CMOS | ||
Mount Type Surface | ||
Package Type TDSO-8 | ||
Minimum Supply Voltage 6V | ||
Maximum Supply Voltage 31V | ||
Pin Count 8 | ||
Operating Current 0.002A | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Length 5mm | ||
Width 6 mm | ||
Standards/Approvals RoHS, AEC | ||
Height 1.75mm | ||
Series BTS4175SGA | ||
Automotive Standard AEC | ||
The Infineon single channel smart high side power switch. It is embedded in a PG-DSO-8-24 package, providing protective functions and diagnostics. The power transistor is built by a n channel power MOSFET with charge pump. The device is monolithically integrated in smart technology. It is specially designed to drive relay, R5W lamp or LED in the harsh automotive environment.
It has CMOS compatible inputs
It has ESD protection
It is RoHS compliant and AEC qualified
