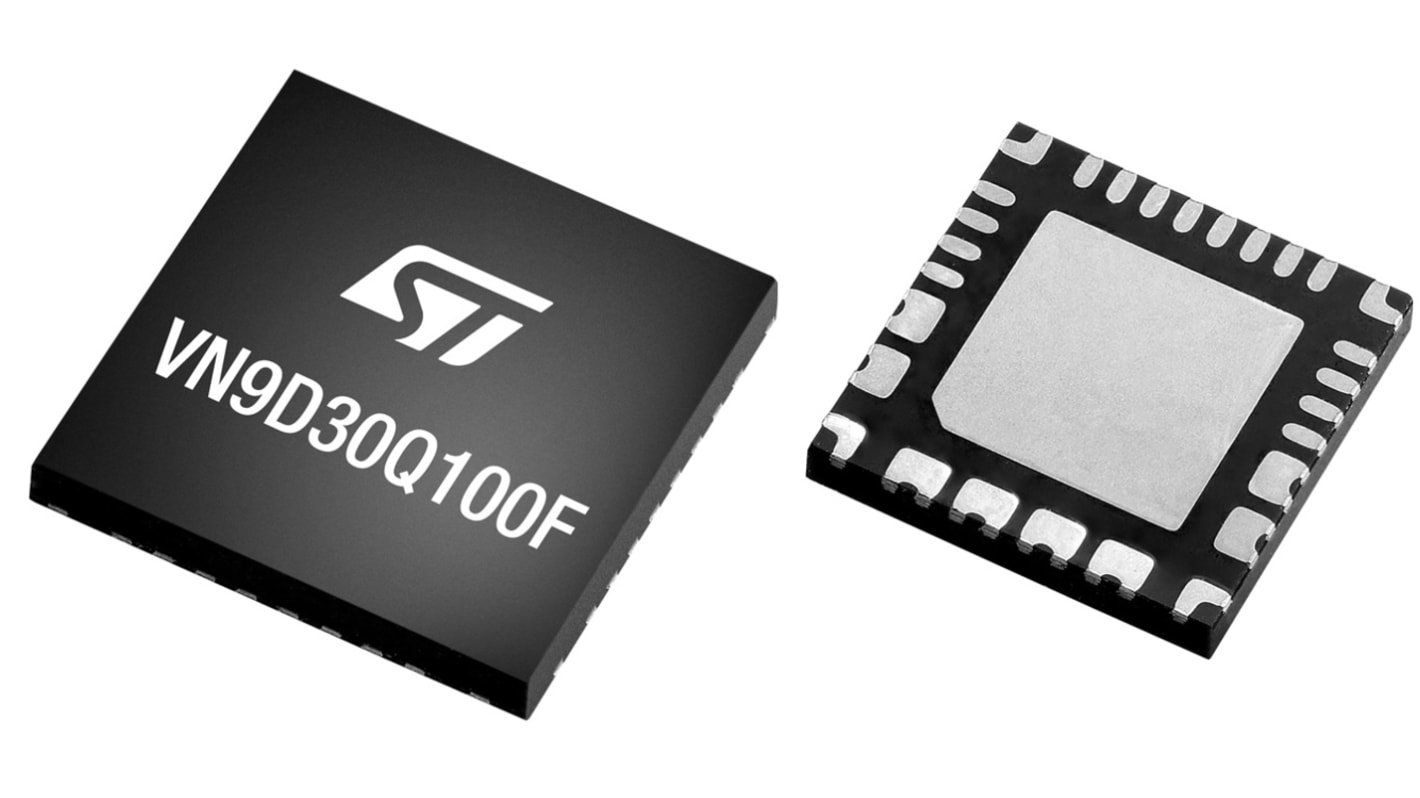

STMicroelectronics VN9D30Q100FTR 6High Side, High Side Power Switch IC, QFN
- RS Stock No.:
- 228-3062
- Mfr. Part No.:
- VN9D30Q100FTR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 3000 units)*
£6,735.00
(exc. VAT)
£8,082.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 + | £2.245 | £6,735.00 |
*price indicative
- RS Stock No.:
- 228-3062
- Mfr. Part No.:
- VN9D30Q100FTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Power Switch Type | High Side | |
Power Switch Topology | High Side | |
Switch On Resistance | 33 mO, 90 mO | |
Number of Channels | 6 | |
Maximum Operating Supply Voltage | 28 V | |
Number of Outputs | 6 | |
Maximum Operating Current | 31.5A | |
Package Type | QFN | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Power Switch Type High Side | ||
Power Switch Topology High Side | ||
Switch On Resistance 33 mO, 90 mO | ||
Number of Channels 6 | ||
Maximum Operating Supply Voltage 28 V | ||
Number of Outputs 6 | ||
Maximum Operating Current 31.5A | ||
Package Type QFN | ||
The STMicroelectronics VN9D30Q100F is a device made using STMicroelectronics VIPower technology. It is intended for driving resistive or inductive loads directly connected to ground. The device is protected against voltage transient on VCC pin. Programming, control and diagnostics are implemented via the SPI bus.
Extreme low voltage operation for deep cold cranking applications
(compliant with LV124, revision 2013)
24-bit ST-SPI for full diagnostic and digital current sense feedback
Integrated 10-bit ADC for digital current sense
Integrated PWM engine with independent phase shift and frequency
generation (for each channel)
Programmable Bulb/LED mode for all channels
Advanced limp home functions for robust fail-safe system
Very low standby current
Optimized electromagnetic emissions
Very low electromagnetic susceptibility
Control through direct inputs and / or SPI
(compliant with LV124, revision 2013)
24-bit ST-SPI for full diagnostic and digital current sense feedback
Integrated 10-bit ADC for digital current sense
Integrated PWM engine with independent phase shift and frequency
generation (for each channel)
Programmable Bulb/LED mode for all channels
Advanced limp home functions for robust fail-safe system
Very low standby current
Optimized electromagnetic emissions
Very low electromagnetic susceptibility
Control through direct inputs and / or SPI
