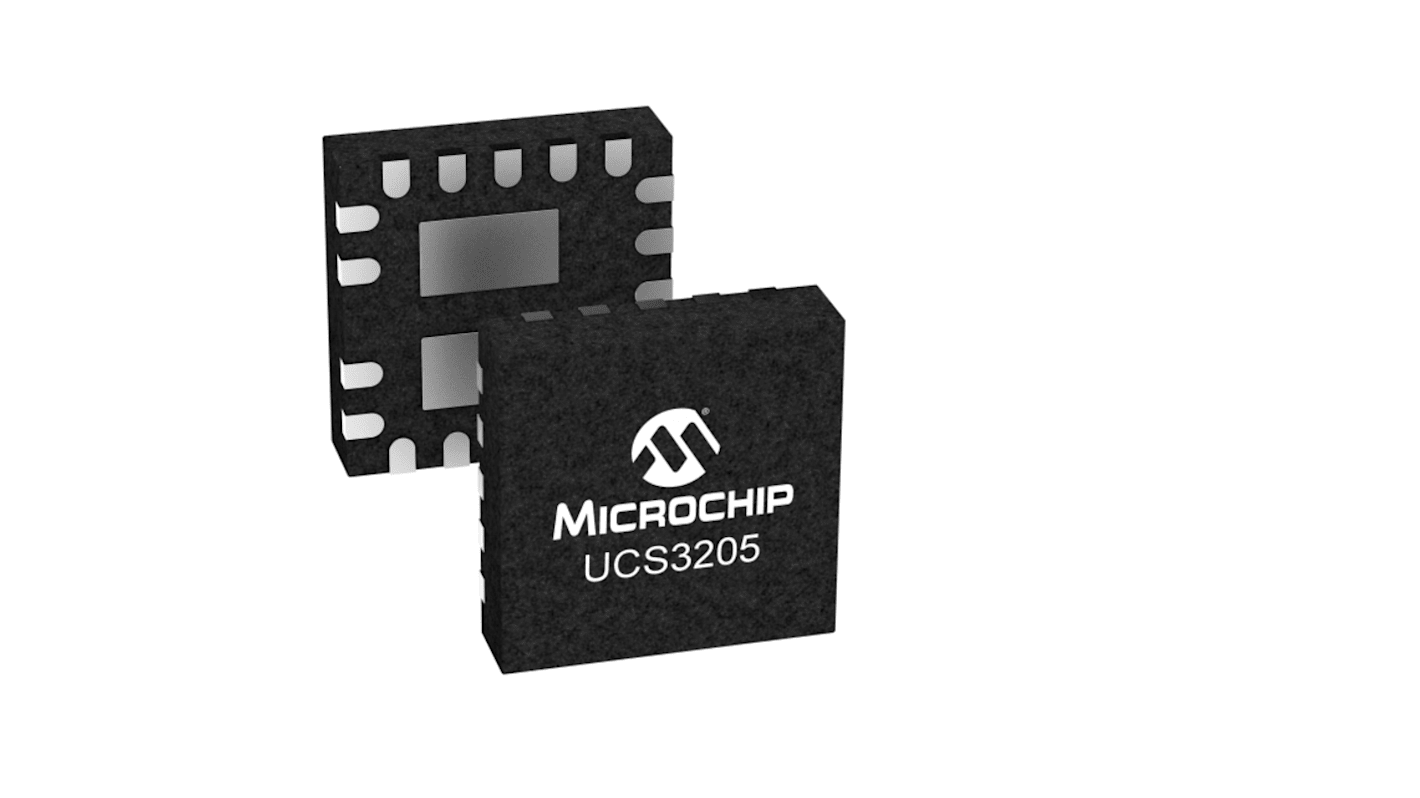

Microchip UCS3205-E/Q8A, 1, Bi-Directional Load Switch Power Control Switch 8-Pin, VQFN-19

View all Power Switch ICs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
216-3123
Mfr. Part No.:
UCS3205-E/Q8A
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Power Switch Type

Bi-Directional Load Switch

Switch On Resistance

30mΩ

Number of Channels

1

Maximum Operating Supply Voltage

22 V

Maximum Operating Current

5A

Number of Outputs

1

Package Type

VQFN-19

Pin Count

8

The Microchip UCS3205 is 5A, 22V bi-directional load switch with Fast Role Swap (FRS) capability, configurable over-current limiting, configurable auto-recovery or latch off fault response, over-voltage lockout, back-voltage protection, slew rate control, quick output discharge and a scaled analog output of the forward current passing through the switch. In addition, it has a thermal shutdown feature. This device is perfect for USB power delivery port management applications, supporting up to 5A at 20V for 100W power delivery specified loads.

Integrated bi-directional n-channel load switch, protection, and monitoring capabilities
5A Continuous current support
USB power delivery support
Fast role swap capability that meets the USB power delivery specification requirements
22V bidirectional blocking capability
