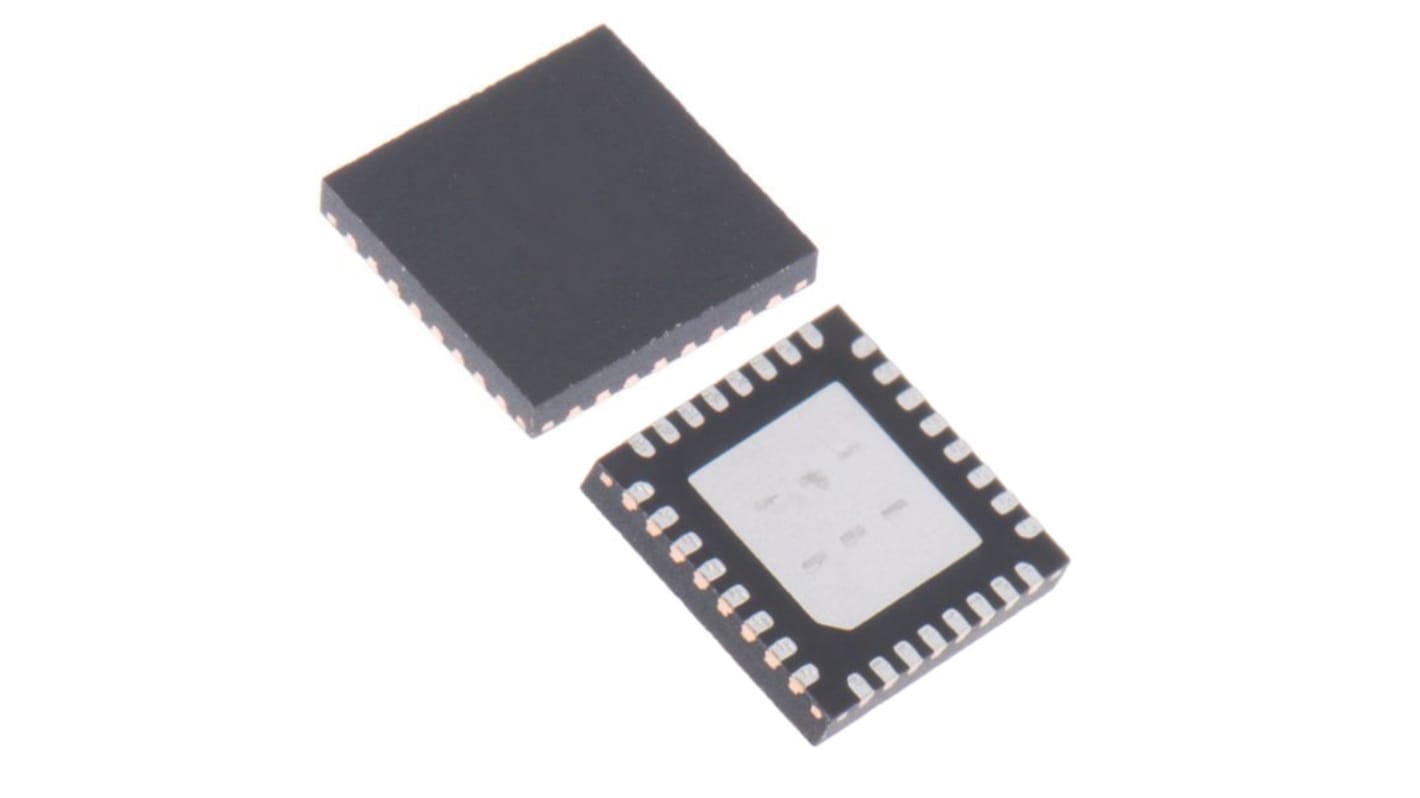

Maxim Integrated High Side 4, High Side Power Switch IC 32-Pin, TDFN

View all Power Switch ICs

Subtotal 2 units (supplied in a tube)*

£8.60

(exc. VAT)

£10.32

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Last RS stock
  • Final 154 unit(s), ready to ship
Units
Per unit
2 +£4.30

*price indicative

Packaging Options:
RS Stock No.:
190-8218P
Mfr. Part No.:
MAX4999ETJ+
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Power Switch Topology

High Side

Power Switch Type

High Side

Product Type

Power Switch IC

Switch On Resistance RdsOn

12Ω

Number of Outputs

4

Number of Inputs

4

Mount Type

Surface

Minimum Supply Voltage

3V

Package Type

TDFN

Maximum Supply Voltage

3.6V

Pin Count

32

Minimum Operating Temperature

-40°C

Operating Current

5A

Maximum Operating Temperature

85°C

Width

3 mm

Length

3mm

Standards/Approvals

No

Automotive Standard

AEC-Q100

Increased Flexibility and Performance

Multiplexer Supports USB 2.0 Standard

-3dB Bandwidth: 1200MHz (typ)

Low On-Resistance and Power Management Features Minimize System Losses

6.5Ω (typ) On-Resistance (RON)

Single +3.0V to +3.6V Power-Supply Voltage

Enable Input Puts All Channels in High-Impedance State (Standby Mode)

Low Operating Current (1μA) and Ultra-Low Quiescent Current (30nA) in Standby Mode

Reduce Component Count and Design Complexity

Low Threshold Eliminates the Need for Translators in 1.8V Low-Voltage Systems

Saves Board Space

32-Pin, 5mm x 5mm, TQFN Package

Applications

Keyboard, Video, Mouse (KVM)

Mass Storage

Servers/RAID

Workstations
