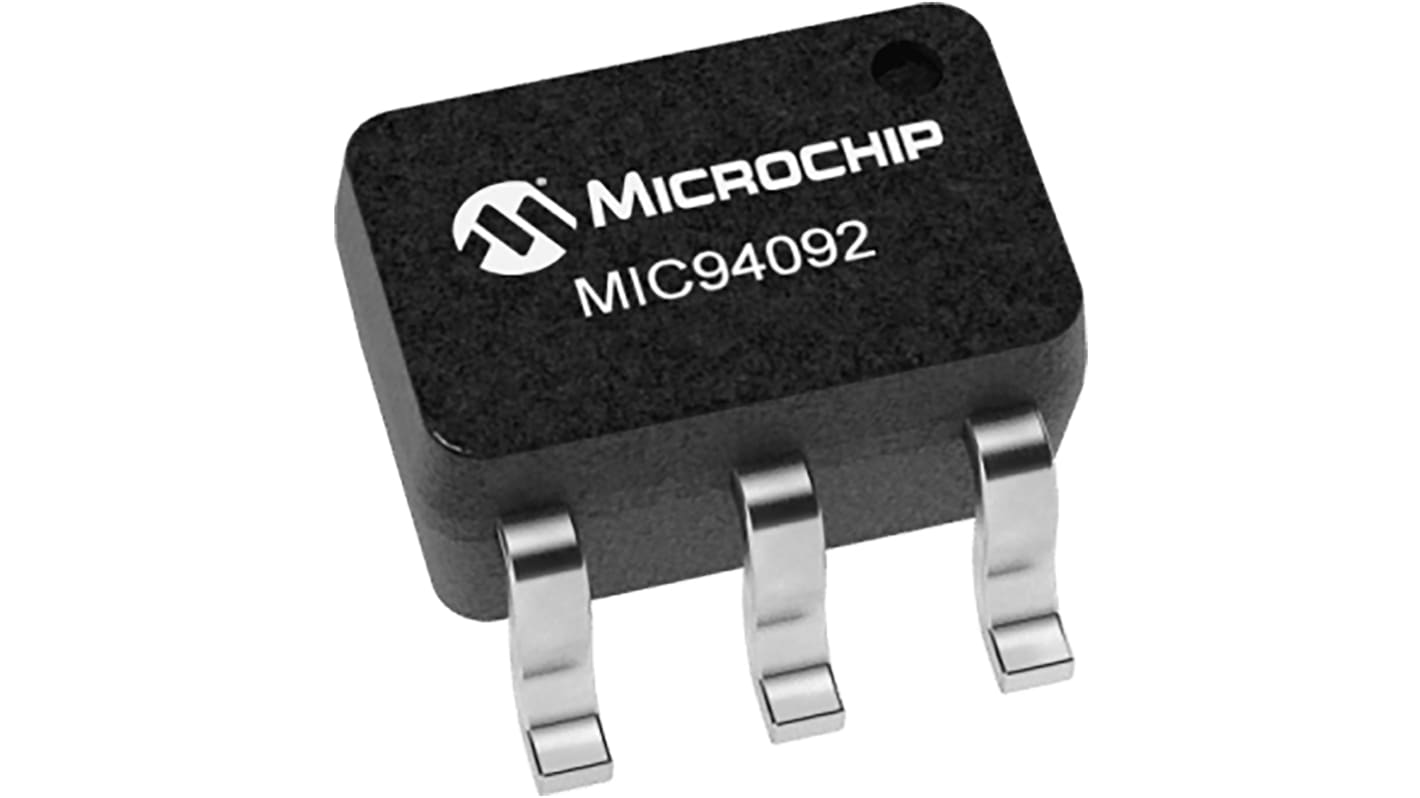

Microchip MIC94092YC6-TR, 1High Side, Load Power Switch IC 6-Pin, SC-70
- RS Stock No.:
- 177-3263
- Mfr. Part No.:
- MIC94092YC6-TR
- Brand:
- Microchip
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 177-3263
- Mfr. Part No.:
- MIC94092YC6-TR
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Power Switch Type | Load | |
Power Switch Topology | High Side | |
Switch On Resistance | 375mΩ | |
Number of Channels | 1 | |
Maximum Operating Supply Voltage | 5.5 V | |
Maximum Operating Current | 1.2 (Continuous)A | |
Mounting Type | Surface Mount | |
Package Type | SC-70 | |
Pin Count | 6 | |
Maximum Operating Temperature | +125 °C | |
Minimum Operating Temperature | -40 °C | |
Dimensions | 2.25 x 1.35 x 1mm | |
Series | MIC94092 | |
Select all | ||
---|---|---|
Brand Microchip | ||
Power Switch Type Load | ||
Power Switch Topology High Side | ||
Switch On Resistance 375mΩ | ||
Number of Channels 1 | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum Operating Current 1.2 (Continuous)A | ||
Mounting Type Surface Mount | ||
Package Type SC-70 | ||
Pin Count 6 | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 2.25 x 1.35 x 1mm | ||
Series MIC94092 | ||
The MIC94090/1/2/3/4/5 is a family of high-side load switches designed for operation from 1.7V to 5.5V input voltage. The load switch pass element is an internal 130mΩ RDS(ON) P-channel MOSFET which enables the device to support up to 1.2A continuous current. Additionally, the load switch supports 1.5V logic level control and shutdown features.The MIC94090 and MIC94091 feature rapid turn on.
1.7V to 5.5V input voltage range
1.2A continuous operating current
130mΩ R DS(ON)
Internal level shift for CMOS/TTL control logic
Ultra low quiescent current
Micro-power shutdown current
Rapid turn-on: MIC94090/1
Soft-Start: MIC94092/3 (790μs), MIC94094/5 (120μs)
Load discharge circuit: MIC94091/3/5
Industry standard SC-70-6 package
1.2A continuous operating current
130mΩ R DS(ON)
Internal level shift for CMOS/TTL control logic
Ultra low quiescent current
Micro-power shutdown current
Rapid turn-on: MIC94090/1
Soft-Start: MIC94092/3 (790μs), MIC94094/5 (120μs)
Load discharge circuit: MIC94091/3/5
Industry standard SC-70-6 package
