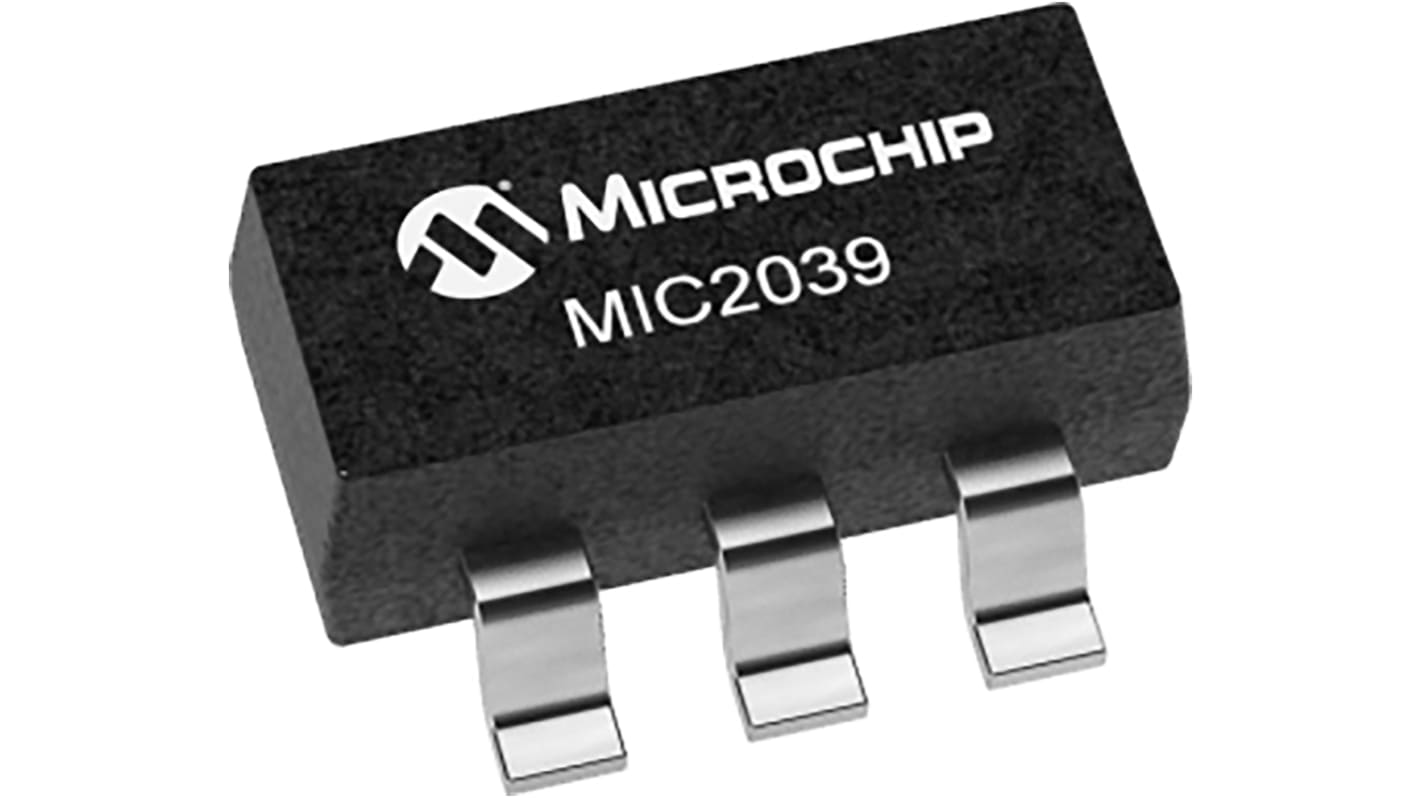

Microchip High Side 1, Current Limit Load Power Switch IC 6-Pin, SOT-23
- RS Stock No.:
- 177-2884
- Mfr. Part No.:
- MIC2039AYM6-TR
- Brand:
- Microchip
Subtotal (1 reel of 3000 units)*
£1,791.00
(exc. VAT)
£2,148.00
(inc. VAT)
Add 3000 units to get free delivery
Temporarily out of stock
- Shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.597 | £1,791.00 |
*price indicative
- RS Stock No.:
- 177-2884
- Mfr. Part No.:
- MIC2039AYM6-TR
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Power Switch Topology | High Side | |
| Power Switch Type | Current Limit Load | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 75mΩ | |
| Number of Outputs | 5 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | -0.3V | |
| Package Type | SOT-23 | |
| Maximum Supply Voltage | 5.5V | |
| Pin Count | 6 | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Operating Current | 300μA | |
| Length | 3mm | |
| Width | 3 mm | |
| Standards/Approvals | No | |
| Series | MIC2039 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Power Switch Topology High Side | ||
Power Switch Type Current Limit Load | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 75mΩ | ||
Number of Outputs 5 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Minimum Supply Voltage -0.3V | ||
Package Type SOT-23 | ||
Maximum Supply Voltage 5.5V | ||
Pin Count 6 | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Operating Current 300μA | ||
Length 3mm | ||
Width 3 mm | ||
Standards/Approvals No | ||
Series MIC2039 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- US
The MIC2039 is a high-side MOSFET power distribution switch providing increased system reliability by using 5% current limit accuracy. The MIC2039 has an operating input voltage range from 2.5V to 5.5V, is internally current limited, and has thermal shutdown to protect the device and system.
±5% current limit accuracy
Input supply range from 2.5V to 5.5V
Low quiescent current: 100μA typical (switch ON)
75mΩ typical RDS(ON) at 5.0V
0.2A to 2.5A adjustable output current
Kickstart - momentary secondary current limit threshold (120ms period)
Soft-start functionality
Undervoltage lockout (UVLO)
Fast 10μs short-circuit response time (non-Kickstart options)
Fault status output flag
Logic controlled enable (active-high, active-low)
Thermal shutdown
Pin compatible with the MIC2009/MIC2019
6-pin 2mm x 2mm thin DFN and 6-pin SOT-23 packages
Junction temperature range from −40°C to +125°C
