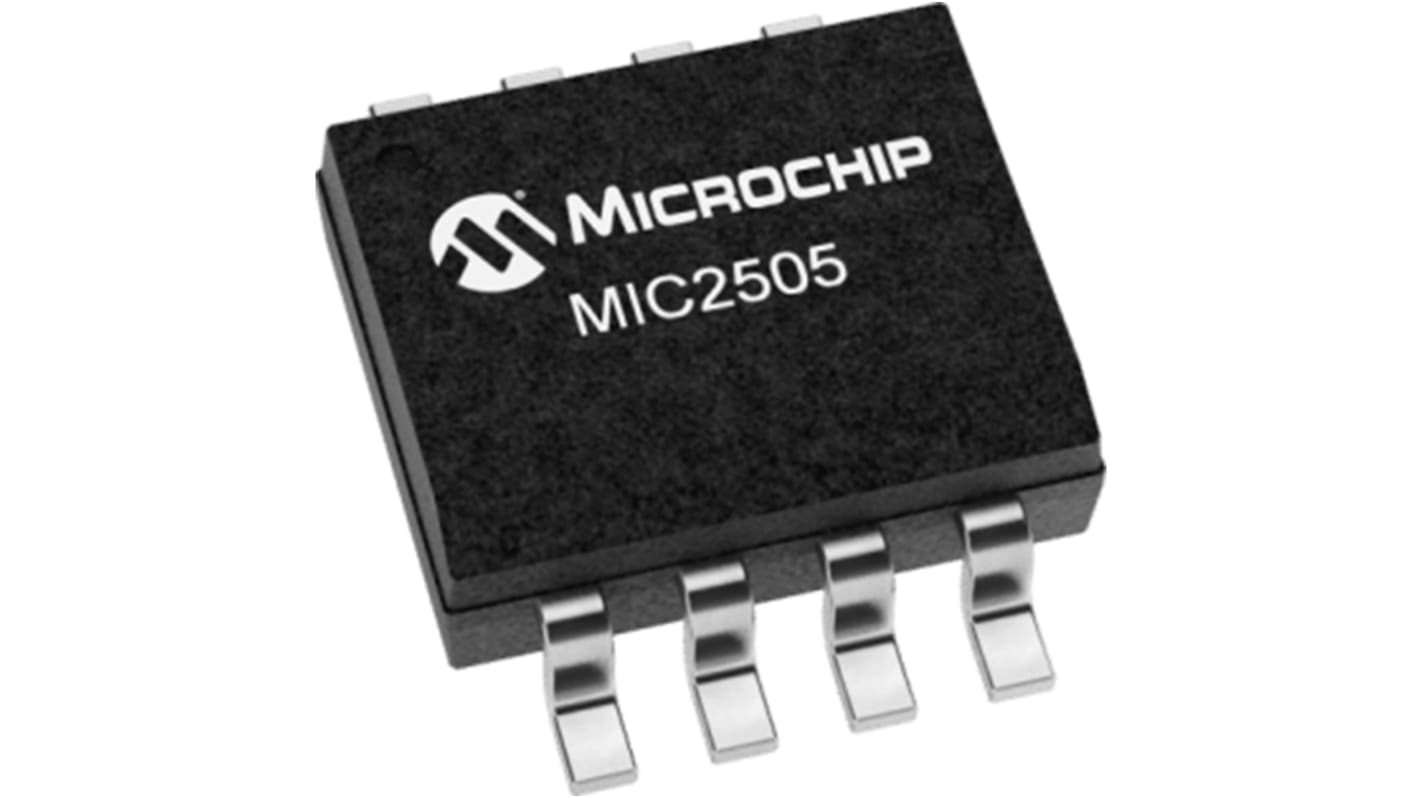

Microchip MIC2505YMHigh Side Power Switch IC 8-Pin, SOIC

View all Power Switch ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
177-0332
Mfr. Part No.:
MIC2505YM
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Power Switch Topology

High Side

Switch On Resistance

75mΩ

Maximum Operating Supply Voltage

7.5 V

Maximum Operating Current

4A

Number of Outputs

1

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

8

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

Dimensions

4.93 x 3.94 x 1.48mm

The MIC2505, MIC2505-1, MIC2505-2, and MIC2506 are single and dual integrated high-side power switches that consist of TTL compatible control/enable inputs, a charge pump, and protected N-channel MOSFETs. The MIC2505/6 family can be used instead of separate high-side drivers and MOSFETs in many low-voltage applications.

Low MOSFET on resistance to 2.7V
30mΩ typical at 5V (MIC2505-series)
35mΩ typical at 3.3V (MIC2505-series)
75mΩ typical at 5V (each MIC2506 output)
80mΩ typical at 3.3V (each MIC2506 output)
2.7V to 7.5V input
Low MOSFET on resistance to 2.7V
30mΩ typical at 5V (MIC2505-series)
35mΩ typical at 3.3V (MIC2505-series)
75mΩ typical at 5V (each MIC2506 output)
80mΩ typical at 3.3V (each MIC2506 output)
2.7V to 7.5V input
Thermal shutdown
2.5V undervoltage lockout (UVLO)
Open-load detection (MIC2505BN/M and MIC2506BN/M only)
Open-drain fault flag
5ms (slow) turn-on and fast turnoff
Logic-level control/enable input
