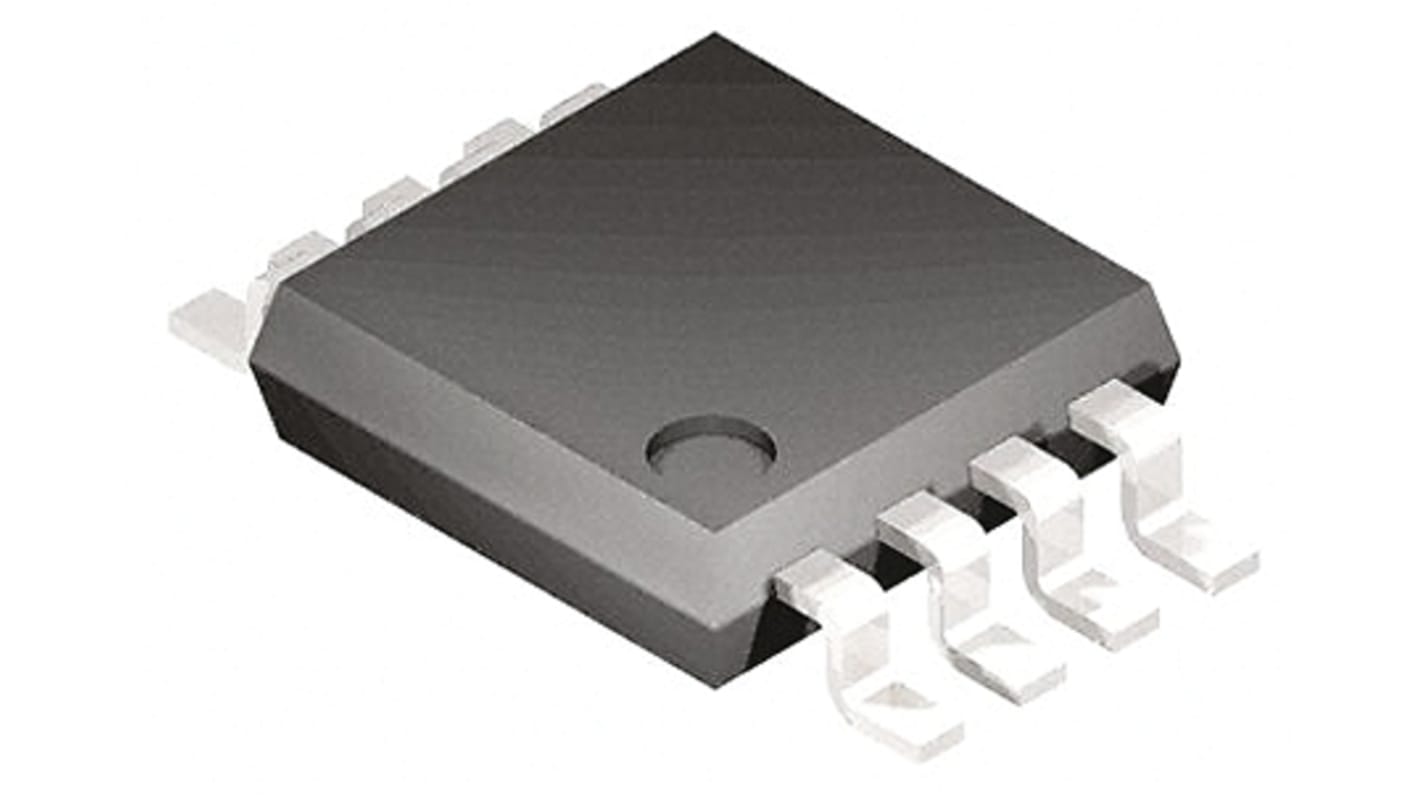

Infineon High Side 1, High Side Power Switch Power Switch IC 8-Pin, DSO
- RS Stock No.:
- 165-5919
- Mfr. Part No.:
- BTS4300SGAXUMA1
- Brand:
- Infineon
Subtotal (1 reel of 2500 units)*
£1,247.50
(exc. VAT)
£1,497.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.499 | £1,247.50 |
*price indicative
- RS Stock No.:
- 165-5919
- Mfr. Part No.:
- BTS4300SGAXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Type | High Side Power Switch | |
| Product Type | Power Switch IC | |
| Power Switch Topology | High Side | |
| Switch On Resistance RdsOn | 600mΩ | |
| Number of Outputs | 5 | |
| Power Rating | 0.8W | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Package Type | DSO | |
| Minimum Supply Voltage | 5V | |
| Maximum Supply Voltage | 34V | |
| Pin Count | 8 | |
| Operating Current | 0.4A | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Height | 1.45mm | |
| Width | 4 mm | |
| Standards/Approvals | No | |
| Length | 5mm | |
| Series | BTS4300SGA | |
| Automotive Standard | AEC | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Type High Side Power Switch | ||
Product Type Power Switch IC | ||
Power Switch Topology High Side | ||
Switch On Resistance RdsOn 600mΩ | ||
Number of Outputs 5 | ||
Power Rating 0.8W | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Package Type DSO | ||
Minimum Supply Voltage 5V | ||
Maximum Supply Voltage 34V | ||
Pin Count 8 | ||
Operating Current 0.4A | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Height 1.45mm | ||
Width 4 mm | ||
Standards/Approvals No | ||
Length 5mm | ||
Series BTS4300SGA | ||
Automotive Standard AEC | ||
- COO (Country of Origin):
- CN
PROFET Smart High-Side Power Switch, Single-Channel, Infineon
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown
Overvoltage protection
Electrostatic discharge (ESD) protection
