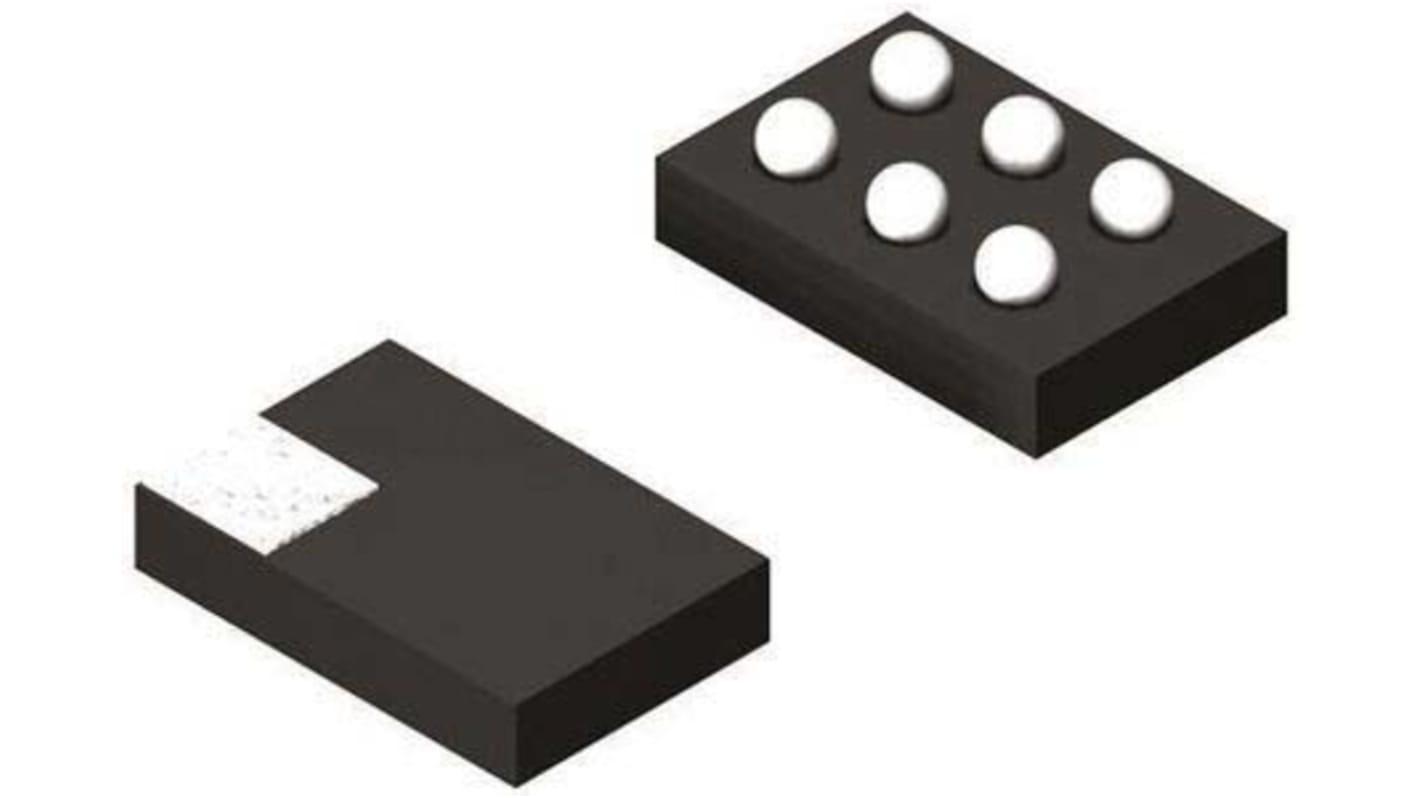

Analog Devices ADP1290ACBZ-R7, 1High Side, High Side Switch Power Switch IC 6-Pin, WLCSP
- RS Stock No.:
- 153-3233
- Mfr. Part No.:
- ADP1290ACBZ-R7
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 153-3233
- Mfr. Part No.:
- ADP1290ACBZ-R7
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Power Switch Topology | High Side | |
| Power Switch Type | High Side Switch | |
| Switch On Resistance | 70mΩ | |
| Number of Channels | 1 | |
| Maximum Operating Supply Voltage | 13.2 V | |
| Maximum Operating Current | 2A | |
| Mounting Type | Surface Mount | |
| Package Type | WLCSP | |
| Pin Count | 6 | |
| Maximum Operating Temperature | +105 °C | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 1 x 1.5 x 0.38mm | |
| Series | ADP1290 | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Power Switch Topology High Side | ||
Power Switch Type High Side Switch | ||
Switch On Resistance 70mΩ | ||
Number of Channels 1 | ||
Maximum Operating Supply Voltage 13.2 V | ||
Maximum Operating Current 2A | ||
Mounting Type Surface Mount | ||
Package Type WLCSP | ||
Pin Count 6 | ||
Maximum Operating Temperature +105 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 1 x 1.5 x 0.38mm | ||
Series ADP1290 | ||
The ADP1290 is a high-side load switch designed for operation between 2.3 V and 13.2 V. This load switch provides power domain isolation, helping to extend battery operation. The device contains a low on-resistance, N-channel MOSFET that supports more than 2 A of continuous current and minimizes power loss. In addition, RDSON is constant independent of the VIN voltage.
Low RDSON of 40 mΩ
Wide input voltage range: 2.3 V to 13.2 V
2 A continuous operating current, TJ = <85°C
1.2 V logic compatible enable input
Low 15 μA quiescent current,
Ultrasmall 1.0 mm x 1.5 mm, 6-ball, 0.5 mm pitch WLCSP
Wide input voltage range: 2.3 V to 13.2 V
2 A continuous operating current, TJ = <85°C
1.2 V logic compatible enable input
Low 15 μA quiescent current,
Ultrasmall 1.0 mm x 1.5 mm, 6-ball, 0.5 mm pitch WLCSP
