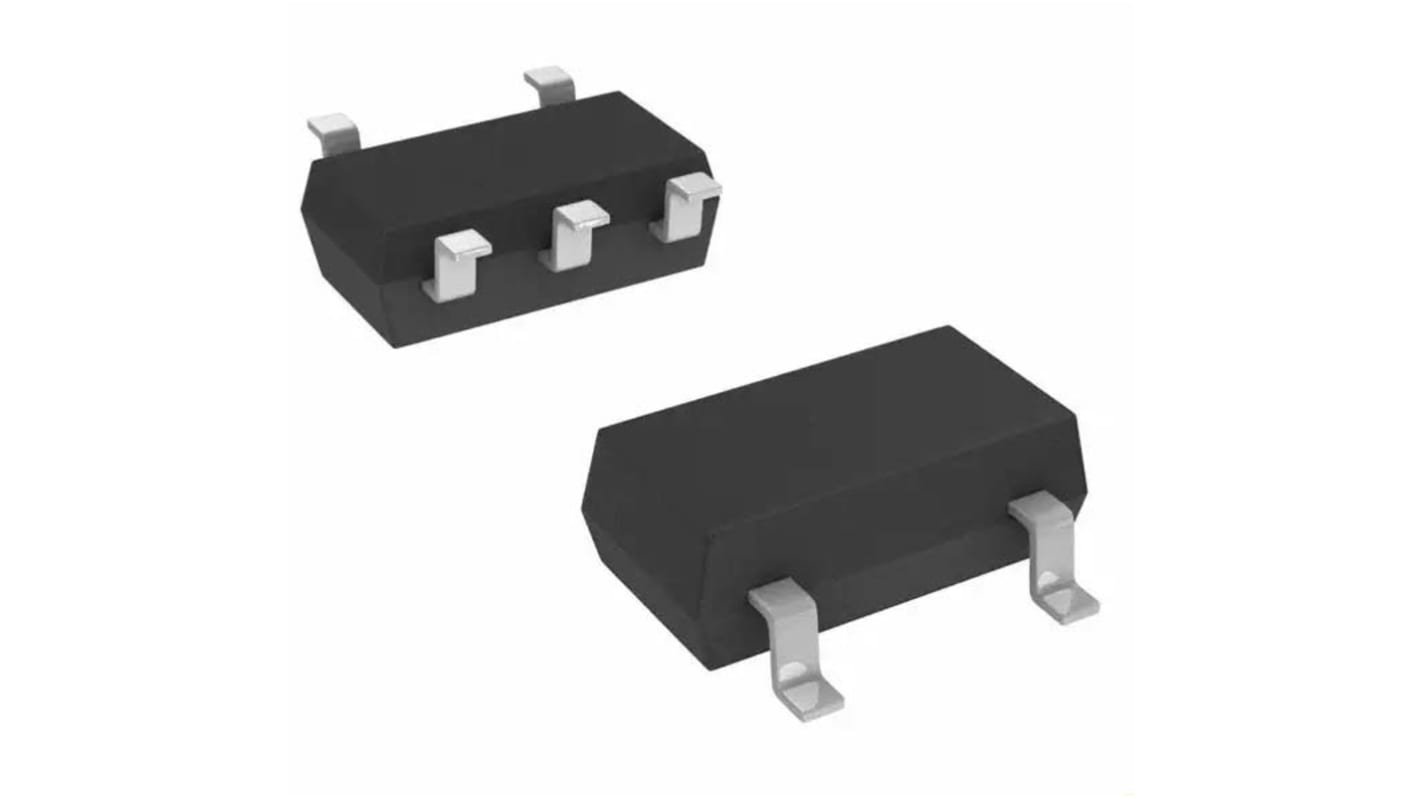

DiodesZetex AP22814AW5-7High Side Power Switch IC 5-Pin, SOT25
- RS Stock No.:
- 146-4707
- Mfr. Part No.:
- AP22814AW5-7
- Brand:
- DiodesZetex
Subtotal (1 reel of 3000 units)*
£396.00
(exc. VAT)
£474.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.132 | £396.00 |
*price indicative
- RS Stock No.:
- 146-4707
- Mfr. Part No.:
- AP22814AW5-7
- Brand:
- DiodesZetex
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Power Switch Topology | High Side | |
| Switch On Resistance | 65mΩ | |
| Maximum Operating Supply Voltage | 2.4 V | |
| Maximum Operating Current | 3.8A | |
| Number of Outputs | 1 | |
| Mounting Type | Surface Mount | |
| Package Type | SOT25 | |
| Pin Count | 5 | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 3.1 x 1.7 x 1.3mm | |
Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Power Switch Topology High Side | ||
Switch On Resistance 65mΩ | ||
Maximum Operating Supply Voltage 2.4 V | ||
Maximum Operating Current 3.8A | ||
Number of Outputs 1 | ||
Mounting Type Surface Mount | ||
Package Type SOT25 | ||
Pin Count 5 | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 3.1 x 1.7 x 1.3mm | ||
