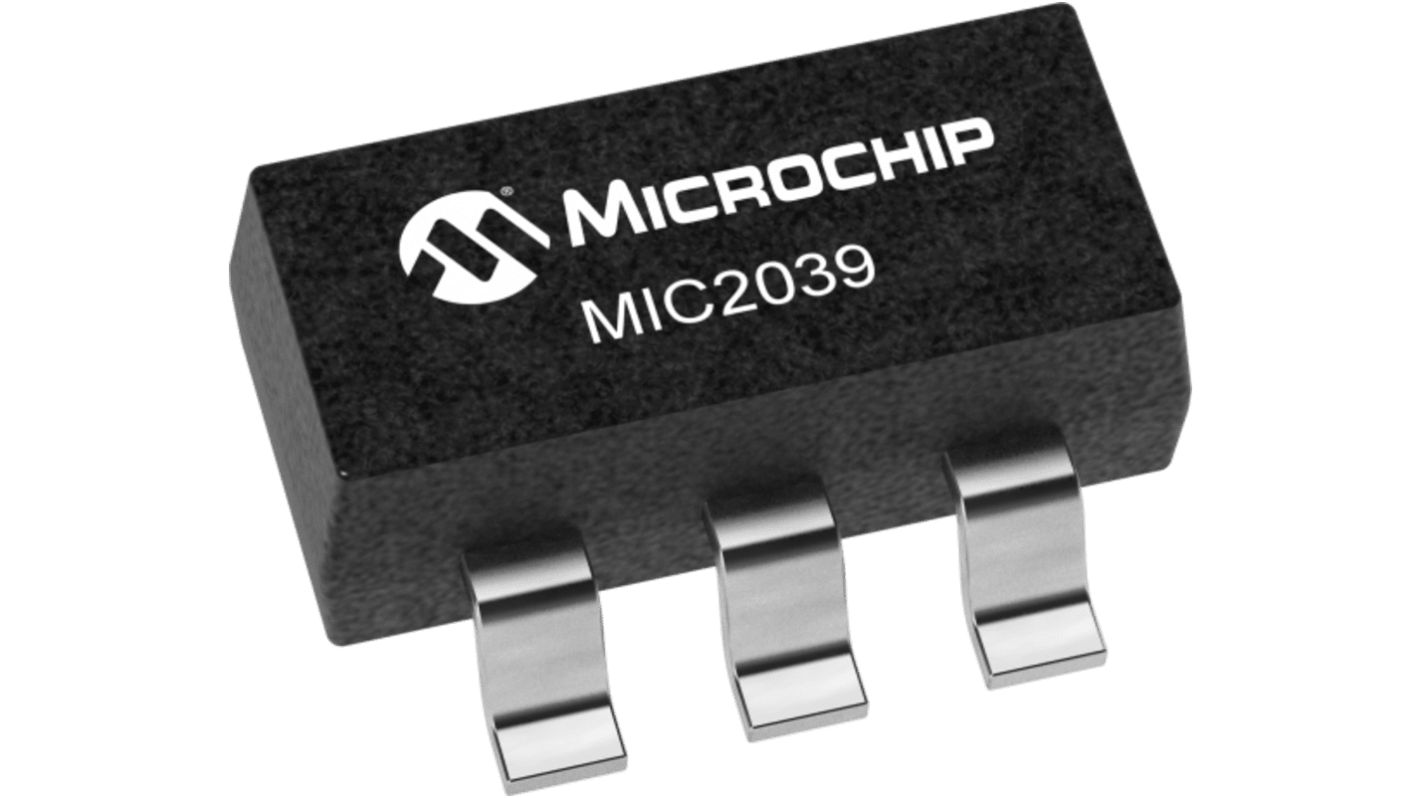

Microchip MIC2039BYM6-TR High Side 1, High Side Power Switch IC 6-Pin, SOT-23-6

View all Power Switch ICs

Subtotal (1 reel of 3000 units)*

£1,665.00

(exc. VAT)

£1,998.00

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Temporarily out of stock
  • Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.555£1,665.00

*price indicative

RS Stock No.:
598-142
Mfr. Part No.:
MIC2039BYM6-TR
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Power Switch Topology

High Side

Product Type

Power Switch IC

Power Switch Type

High Side

Switch On Resistance RdsOn

125mΩ

Number of Outputs

1

Number of Inputs

1

Mount Type

Surface

Minimum Supply Voltage

2.5V

Package Type

SOT-23-6

Maximum Supply Voltage

5.5V

Pin Count

6

Minimum Operating Temperature

40°C

Maximum Operating Temperature

125°C

Operating Current

300μA

Standards/Approvals

RoHS Compliant

Automotive Standard

No

Series

MIC2039

The Microchip High side MOSFET power distribution switch provides increased system reliability by using 5% current limit accuracy. It has an operating input voltage range from 2.5V to 5.5V, is internally current limited, and has thermal shutdown to protect the device and system. It is offered with either active-high or active-low logic level enable input controls. The device has an open drain fault status output flag with a built-in 32ms delay that asserts low during overcurrent or thermal shutdown conditions. The switch features an adjustable output current limit that is resistor programmable from 0.2A to 2.5A.

Soft start functionality

Undervoltage lockout

Fault status output flag

Logic controlled enable

Thermal shutdown
