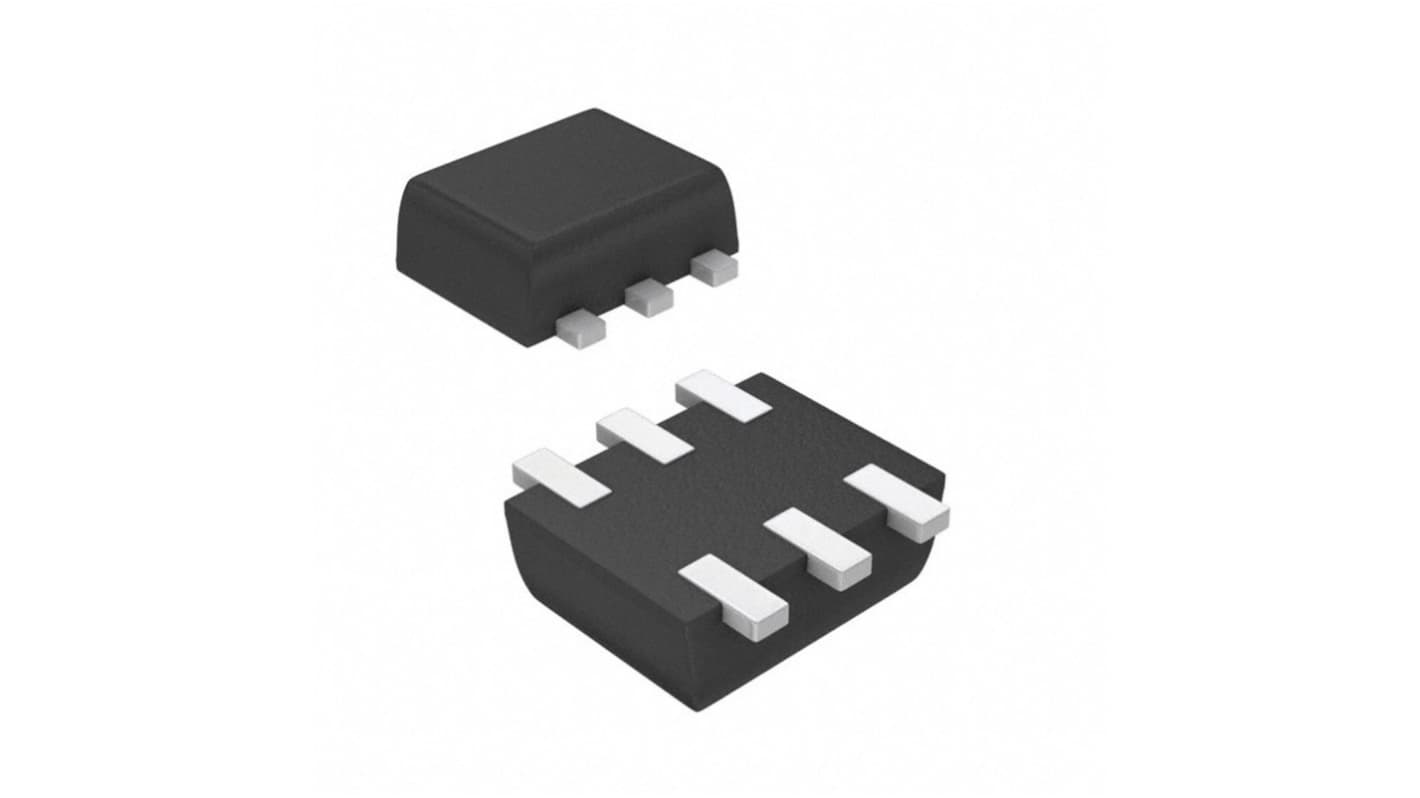

MPS MP5075GTF-P 1, Load Switch Power Control Switch 6-Pin, SOT-563

View all Power Switch ICs
Bulk discount available

Subtotal (1 tape of 10 units)*

£4.80

(exc. VAT)

£5.80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
10 - 90£0.48£4.80
100 - 240£0.456£4.56
250 +£0.422£4.22

*price indicative

Packaging Options:
RS Stock No.:
337-697
Mfr. Part No.:
MP5075GTF-P
Brand:
MPS
Find similar products by selecting one or more attributes.
Select all

Brand

MPS

Product Type

Power Control Switch

Power Switch Type

Load Switch

Switch On Resistance RdsOn

38mΩ

Number of Outputs

1

Power Rating

1W

Number of Inputs

1

Mount Type

Surface Mount

Minimum Supply Voltage

3V

Package Type

SOT-563

Maximum Supply Voltage

5.5V

Pin Count

6

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Standards/Approvals

RoHS

Width

1.6 mm

Length

1.6mm

Series

MP5075

COO (Country of Origin):
CN
The MPS International Ltd Low RDS(ON) Load Switch provides up to 2.4A of load protection over a 3V to 5.5V voltage range with a small RDS(ON) in a space saving package. It is a very high efficiency and space saving solution for notebooks, tablets, and other portable and battery operated applications. With a fixed soft start function, it can prevent inrush current during circuit start up.

Typical 3A current limit

Output discharge function

Internal fixed 450μs soft start time

<200ns short circuit protection response time

Thermal protection
