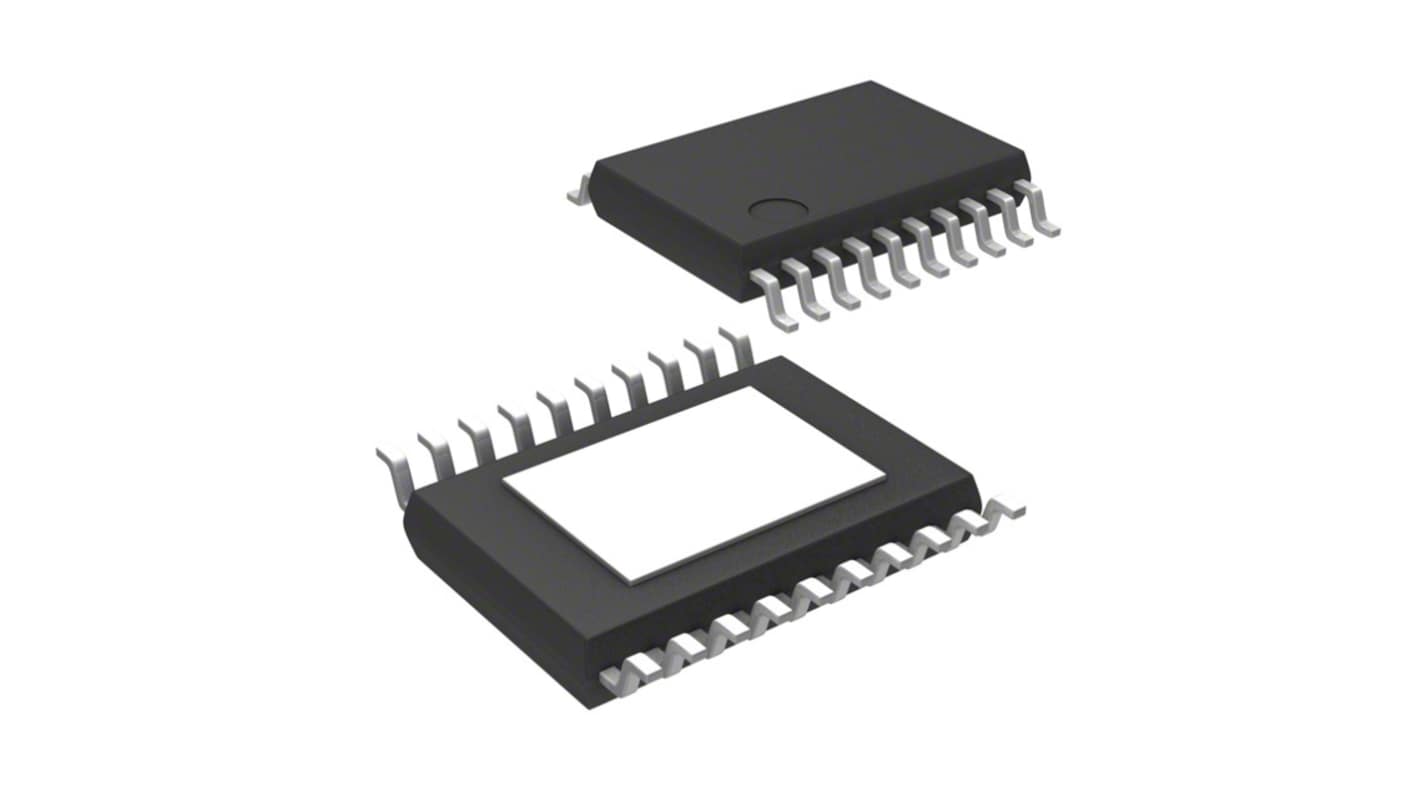

MPS MP4570GF-P, 1Low Side, Step-Down Converter Power Control Switch 20-Pin, TSSOP-20 EP
- RS Stock No.:
- 337-654
- Mfr. Part No.:
- MP4570GF-P
- Brand:
- MPS
Bulk discount available
Subtotal (1 tape of 5 units)*
£11.00
(exc. VAT)
£13.20
(inc. VAT)
FREE delivery for orders over £50.00
New product - Preorder today
- 999,999,995 unit(s) shipping from 23 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
5 - 45 | £2.20 | £11.00 |
50 - 95 | £2.09 | £10.45 |
100 + | £1.936 | £9.68 |
*price indicative
- RS Stock No.:
- 337-654
- Mfr. Part No.:
- MP4570GF-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MPS | |
Power Switch Topology | Low Side | |
Power Switch Type | Step-Down Converter | |
Number of Channels | 1 | |
Maximum Operating Supply Voltage | 4.5 → 55 V | |
Number of Outputs | 1 | |
Maximum Operating Current | 3A | |
Package Type | TSSOP-20 EP | |
Pin Count | 20 | |
Select all | ||
---|---|---|
Brand MPS | ||
Power Switch Topology Low Side | ||
Power Switch Type Step-Down Converter | ||
Number of Channels 1 | ||
Maximum Operating Supply Voltage 4.5 → 55 V | ||
Number of Outputs 1 | ||
Maximum Operating Current 3A | ||
Package Type TSSOP-20 EP | ||
Pin Count 20 | ||
- COO (Country of Origin):
- CN
The MPS International Ltd Frequency programmable step down switching converter with integrated internal high side and low side power MOSFETs. It can provide 3A continuous output current with peak current control for excellent transient response and efficiency performance. The wide 4.5V to 55V input voltage range accommodates a variety of step down applications, including those applications in industrial, PoE, automotive and printer with DC high voltage bus.
Support external SYNC clock
OVP protection
Current limit decreasing during output short for better thermal performance
Power good indication
Thermal shutdown protection
OVP protection
Current limit decreasing during output short for better thermal performance
Power good indication
Thermal shutdown protection
