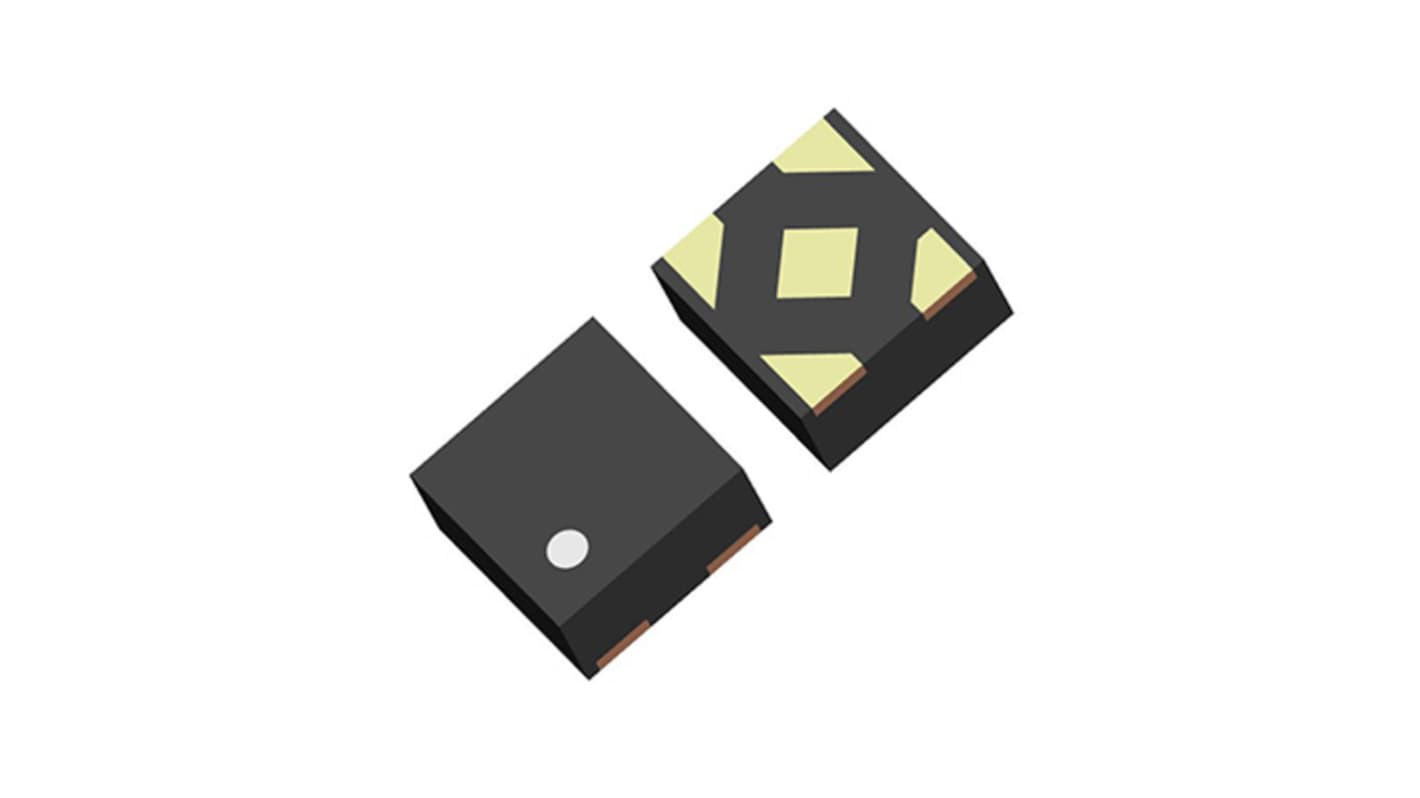

Nisshinbo Micro Devices RP110L121D-TR Low Side/High Side, Low Side Power Switch IC 4-Pin, DFN1010-4

View all Power Switch ICs
Bulk discount available

Subtotal (1 tape of 20 units)*

£5.58

(exc. VAT)

£6.70

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Stock information currently inaccessible
Units
Per unit
Per Tape*
20 - 180£0.279£5.58
200 - 480£0.265£5.30
500 - 980£0.245£4.90
1000 - 1980£0.226£4.52
2000 +£0.218£4.36

*price indicative

Packaging Options:
RS Stock No.:
276-969
Mfr. Part No.:
RP110L121D-TR
Brand:
Nisshinbo Micro Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Nisshinbo Micro Devices

Power Switch Topology

Low Side/High Side

Power Switch Type

Low Side

Product Type

Power Switch IC

Switch On Resistance RdsOn

60Ω

Number of Outputs

1

Mount Type

Board

Package Type

DFN1010-4

Maximum Supply Voltage

5.25V

Pin Count

4

Maximum Operating Temperature

85°C

Operating Current

150mA

Minimum Operating Temperature

-40°C

Standards/Approvals

No

Automotive Standard

No

Series

RP110x

COO (Country of Origin):
JP
The Nisshinbo Micro Devices Voltage LDO Regulator is able to prolong the battery life of each system. The external capacitor is 0.1μF with phase compensation. The IC also has a constant slope circuit as a soft start circuit, which does not require any external capacitor. It minimizes the inrush current and prevents the output voltage overshoot at the start up.

High output voltage accuracy

Extremely low supply current

Low ON resistance
