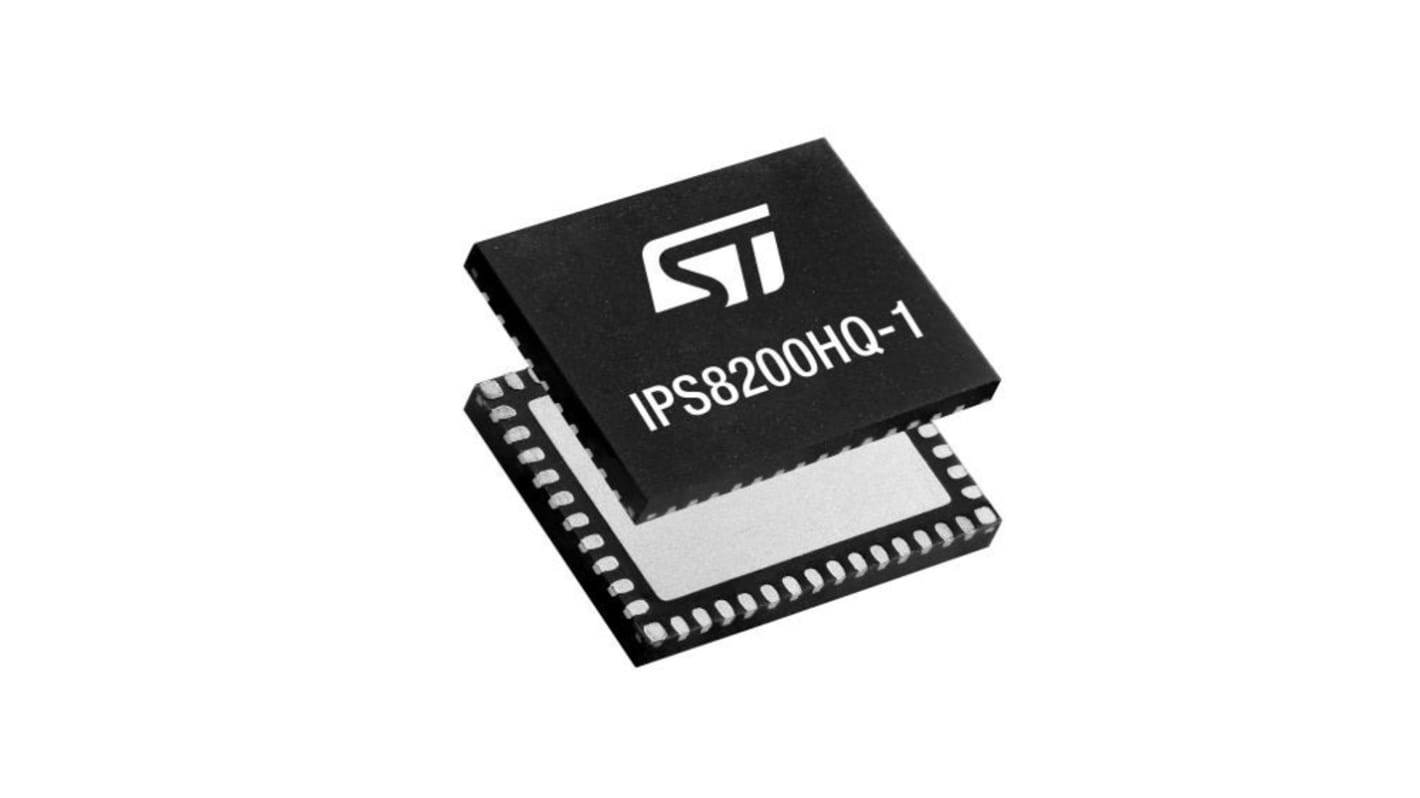

STMicroelectronics IPS8200HQ 8High Side, High Side Power Switch IC 48-Pin, VFQFPN

View all Power Switch ICs

Subtotal (1 reel of 2500 units)*

£15,217.50

(exc. VAT)

£18,260.00

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
Per Reel*
2500 +£6.087£15,217.50

*price indicative

RS Stock No.:
151-680
Mfr. Part No.:
IPS8200HQ
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Power Switch Type

High Side

Power Switch Topology

High Side

Number of Channels

8

Maximum Operating Supply Voltage

36 V

Number of Outputs

8

Maximum Operating Current

1A

Package Type

VFQFPN

Pin Count

48

COO (Country of Origin):
PH
The STMicroelectronics Solid relay is octal high-side smart power solid-state relay. It is designed using VIPower technology, and intended to drive any kind of load with one side connected to the ground. Both ICs operates from 10.5 V to 36 V and feature a very low supply current, parallel or 4-wire SPI control interface, a 4x2 LED matrix, and a micropower step-down switching regulator with a peak current control loop mode.

Common fault open drain output
IC warning temperature detection
Fast demagnetization of inductive loads
