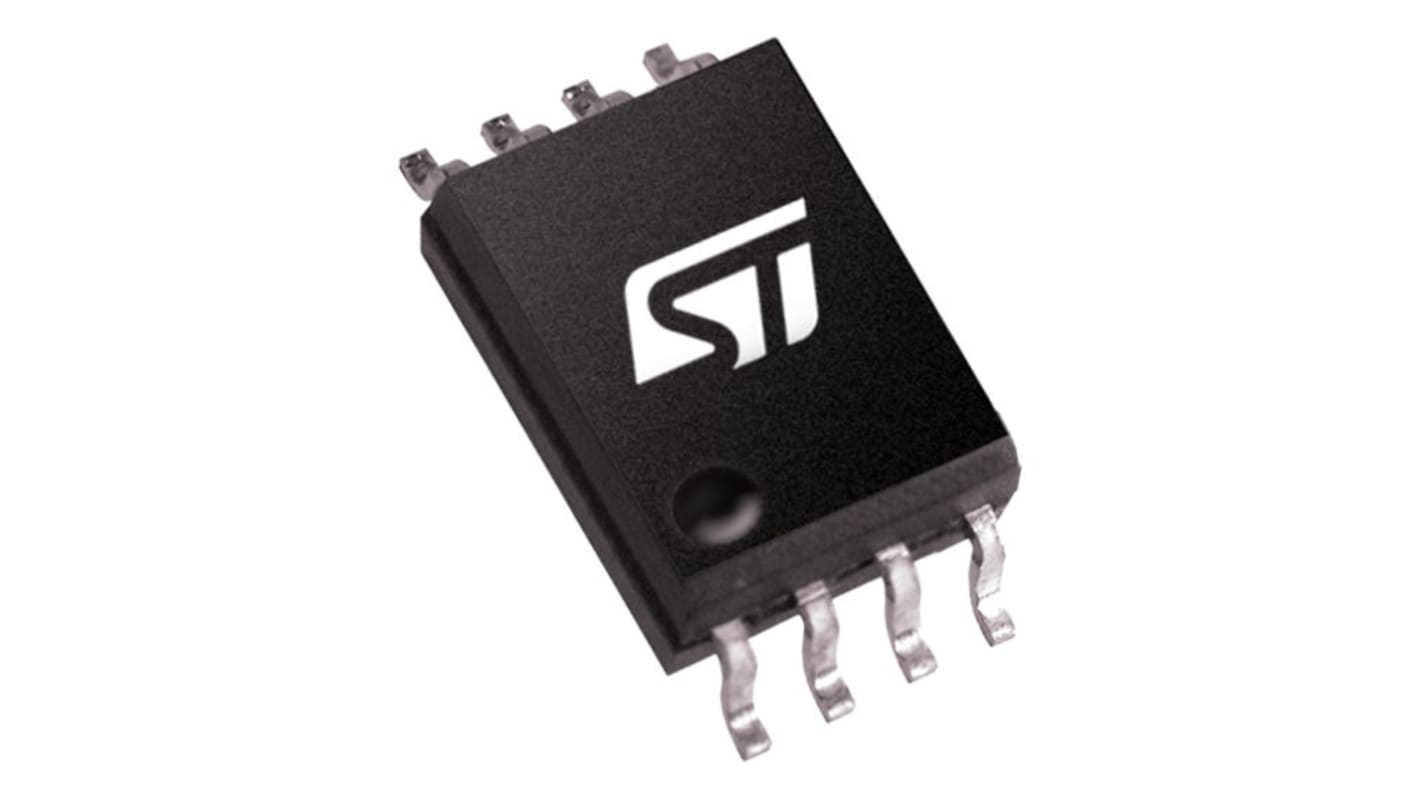

STMicroelectronics STMPS2252MTR High Side 1, High Side Power Switch IC 8-Pin, SO-8
- RS Stock No.:
- 151-544
- Mfr. Part No.:
- STMPS2252MTR
- Brand:
- STMicroelectronics
Get a bulk buy discount
Add 5000 more to save 2%
View bulk pricing optionsSubtotal (1 reel of 2500 units)*
£1,092.50
(exc. VAT)
£1,310.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 May 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* | Saving |
|---|---|---|---|
| 2500 - 2500 | £0.437 | £1,092.50 | - |
| 5000 + | £0.427 | £1,067.50 | 2% |
*price indicative
- RS Stock No.:
- 151-544
- Mfr. Part No.:
- STMPS2252MTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Power Switch IC | |
| Power Switch Topology | High Side | |
| Power Switch Type | High Side | |
| Number of Outputs | 2 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 2.7V | |
| Package Type | SO-8 | |
| Maximum Supply Voltage | 5.5V | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Operating Current | 500mA | |
| Height | 1.75mm | |
| Standards/Approvals | UL Components (UL File number:E354278) | |
| Width | 4mm | |
| Length | 5mm | |
| Series | STMPS22 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Power Switch IC | ||
Power Switch Topology High Side | ||
Power Switch Type High Side | ||
Number of Outputs 2 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Minimum Supply Voltage 2.7V | ||
Package Type SO-8 | ||
Maximum Supply Voltage 5.5V | ||
Pin Count 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Operating Current 500mA | ||
Height 1.75mm | ||
Standards/Approvals UL Components (UL File number:E354278) | ||
Width 4mm | ||
Length 5mm | ||
Series STMPS22 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The STMicroelectronics Power distribution switches are intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices incorporate 100 mΩ MOSFET high side power switches for power distribution systems that require multiple power switches in a single package.
Thermal protection
8 kV ESD protection
Reverse current protection
Fault blanking
CMOS and TTL compatible inputs
2.5 MS typical rise time
Under voltage lockout
