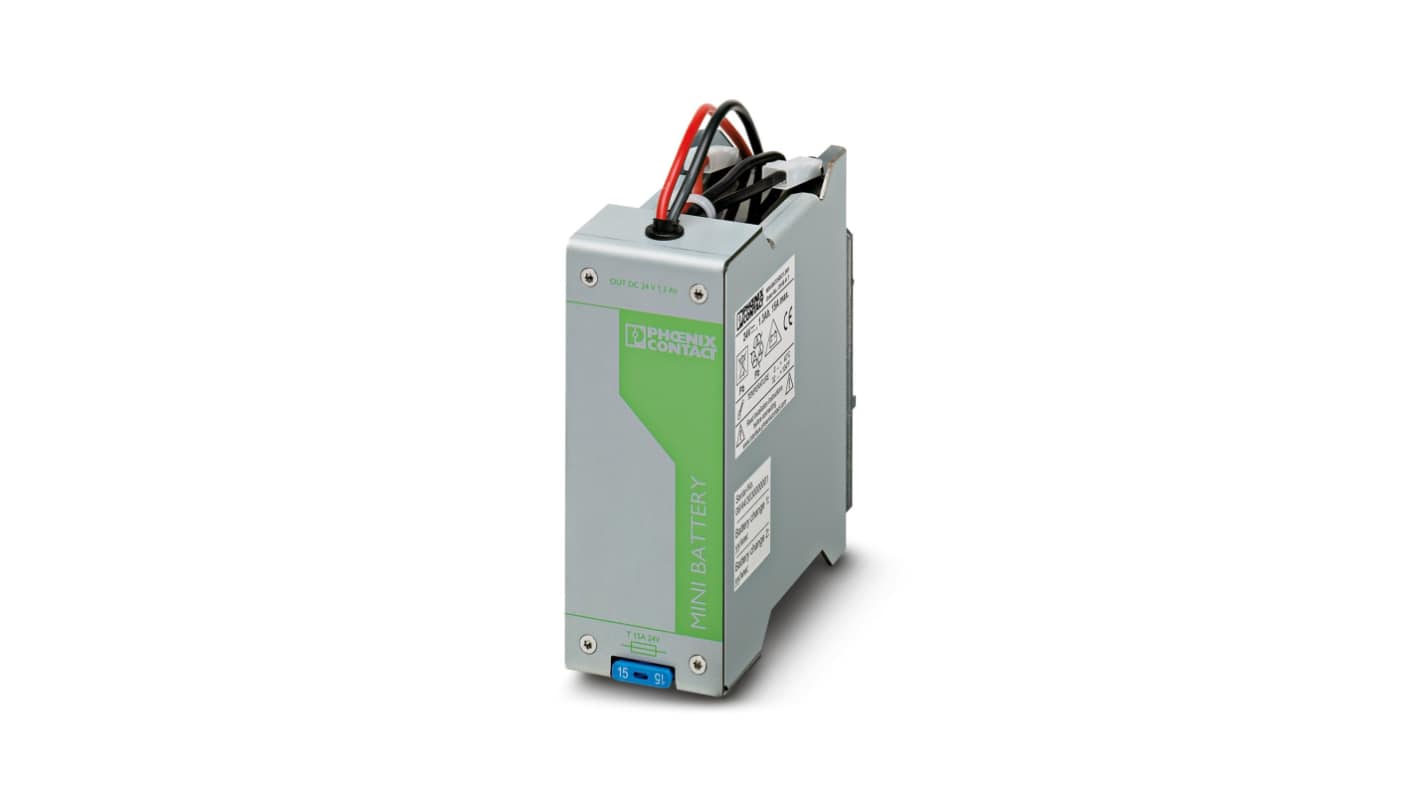

Phoenix Contact Battery Module, for use with Energy Storage Device, MINI-BAT/24DC/1.3AH Series
- RS Stock No.:
- 168-2509
- Distrelec Article No.:
- 169-96-368
- Mfr. Part No.:
- 2866417
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 168-2509
- Distrelec Article No.:
- 169-96-368
- Mfr. Part No.:
- 2866417
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Accessory Type | Battery Module | |
| For Use With | Energy Storage Device | |
| Series | MINI-BAT/24DC/1.3AH | |
| Input Voltage | 24V dc | |
| Output Voltage | 24V dc | |
| Output Current | 15A | |
| AC or DC Output Voltage | dc | |
| AC or DC Input Voltage | dc | |
| Rated Input Voltage | 24V | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Accessory Type Battery Module | ||
For Use With Energy Storage Device | ||
Series MINI-BAT/24DC/1.3AH | ||
Input Voltage 24V dc | ||
Output Voltage 24V dc | ||
Output Current 15A | ||
AC or DC Output Voltage dc | ||
AC or DC Input Voltage dc | ||
Rated Input Voltage 24V | ||
- COO (Country of Origin):
- CN
Uninterruptible Power Supplies
Uninterruptible battery power supply units are the ideal solution to an unstable mains supply. With IQ technology they provide information regarding the charging state, remaining runtime and the service life of your rechargeable battery module. Now, also available, a UPS with integrated rechargeable battery.
Phoenix Contact MINI-BAT/24DC/1.3AH Series Battery Module, 24V DC Input Voltage, 15A Output Current - 2866417
This battery module is designed for energy storage applications, featuring lead AGM technology. The unit measures 52mm in width, 130mm in height, and 110mm in depth, providing a compact yet powerful solution for energy management. Capable of delivering 24V DC output at a maximum of 15A, it ensures reliability for various energy storage requirements.
Features & Benefits
• Supports maximum buffer time for enhanced energy management
• Operates efficiently within an ambient temperature range of 0°C to 40°C
• Delivers a steady 15A output for demanding applications
• Utilises lead AGM technology for superior performance
• EAC certified for compliance with international standards
• Constructed with IP20 protection against solid objects
• Operates efficiently within an ambient temperature range of 0°C to 40°C
• Delivers a steady 15A output for demanding applications
• Utilises lead AGM technology for superior performance
• EAC certified for compliance with international standards
• Constructed with IP20 protection against solid objects
Applications
• Used for energy storage in automation systems
• Suitable for backup power in electrical installations
• Employed in high current supply scenarios in mechanical industries
• Ideal for requiring 24V DC battery modules
• Suitable for backup power in electrical installations
• Employed in high current supply scenarios in mechanical industries
• Ideal for requiring 24V DC battery modules
What is the expected buffer time at different current loads?
The battery module can provide a buffer time of 20 minutes at a load of 2A and 5 minutes at 5A, allowing for critical time during power outages.
How should this battery module be disposed of after use?
The battery must be disposed of according to national regulations and should not be thrown in household waste. Consider returning it for proper recycling.
Can multiple units be connected in parallel?
Yes, the design allows for connections in parallel, enabling increased output capacity while maintaining reliability and performance.
What ambient conditions can this battery module withstand?
This unit functions optimally in environments ranging from 0°C to 40°C, with a maximum relative humidity of 95% during operation.
