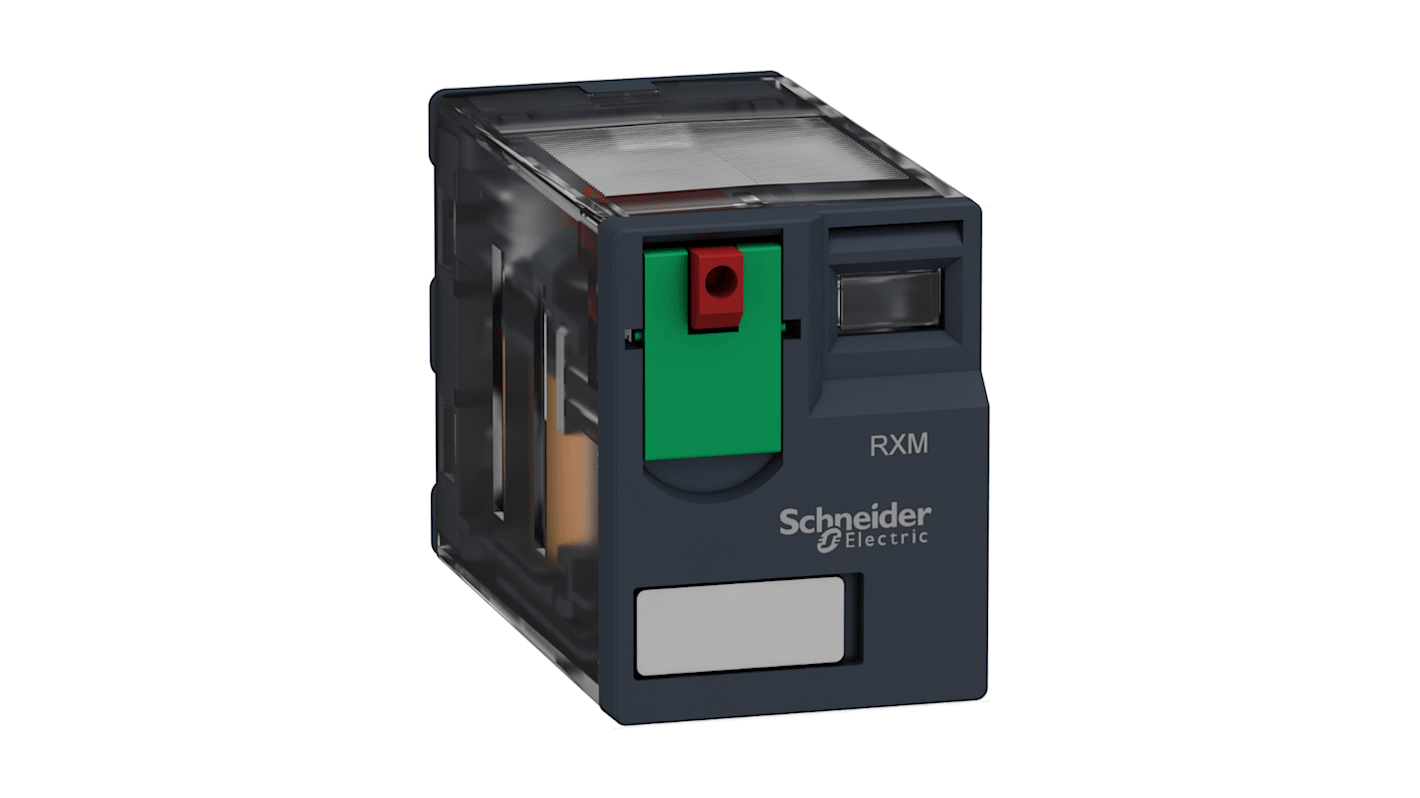

Schneider Electric Power Relay, 24 V ac Coil, 8 A Switching Current, 4PDT

RS Stock No.:: 884-1294
Mfr. Part No.:: RXM4AB1B7
Brand:: Schneider Electric

Schneider Electric Power Relay, 24 V ac Coil, 8 A Switching Current, 4PDT

Subtotal (1 unit)*

£7.92

(exc. VAT)

£9.50

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

144 unit(s) ready to ship
Plus 24 unit(s) ready to ship from another location
Plus 80 unit(s) shipping from 20 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£7.92

*price indicative

RS Stock No.:: 884-1294
Mfr. Part No.:: RXM4AB1B7
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Power Relay
	Coil Voltage	24 V ac
	Contact Configuration	4PDT
	Series	Harmony Relay RXM
	Terminal Type	Plug-In
	Switching Current	8 A
	Switching AC Voltage	250 V ac
	Switching DC Voltage	28 V dc
	Switching Power	1.5kVA
	Minimum Operating Temperature	-40°C
	Coil Resistance	180Ω
	Maximum Operating Temperature	55°C
	Standards/Approvals	CSA, CE
	Length	21mm
	Coil Power	1.2W
	Height	27mm
	Width	47.7 mm
	Contact Material	Silver Alloy

	Select all
	Brand Schneider Electric
	Product Type Power Relay
	Coil Voltage 24 V ac
	Contact Configuration 4PDT
	Series Harmony Relay RXM
	Terminal Type Plug-In
	Switching Current 8 A
	Switching AC Voltage 250 V ac
	Switching DC Voltage 28 V dc
	Switching Power 1.5kVA
	Minimum Operating Temperature -40°C
	Coil Resistance 180Ω
	Maximum Operating Temperature 55°C
	Standards/Approvals CSA, CE
	Length 21mm
	Coil Power 1.2W
	Height 27mm
	Width 47.7 mm
	Contact Material Silver Alloy

COO (Country of Origin):: CN

Schneider Electric Harmony Relay RXM Series Power Relay, 24V AC Coil Voltage, 4PDT Contact Configuration - RXM4AB1B7

This power relay is a versatile plug-in device designed for reliable performance across various applications. With a coil voltage of 24V AC and a compact size of 21 x 47.7 x 27 mm, it seamlessly integrates into existing control systems. The relay operates with a maximum switching current of 8 A, making it suitable for industrial use while adhering to international safety standards.

Features & Benefits

• Utilises a coil resistance of 180 Ω for efficient performance

• Offers a robust 8 A switching current capability for demanding tasks

• Equipped with 4 changeover contacts providing versatile switching options

• Designed for plug-in mounting, facilitating rapid installation

• Achieves a lifespan of 100,000 cycles, ensuring long-term reliability

• Complies with CE, UL and RoHS certifications for assured safety

Applications

• Utilised in automation systems for machinery control

• Ideal for electrical panels requiring reliable switching solutions

• Employed in HVAC systems to manage power to units

• Used in security systems for system activation and deactivation

• Suitable for lighting control circuits in commercial buildings

What is the maximum switching capacity of this relay?

The maximum switching capacity for this relay is 1500 VA for AC and 168 W for DC, allowing it to handle significant loads effectively.

How does the relay perform under different environmental conditions?

This relay can operate within a temperature range of -40 to +55 °C, making it suitable for diverse environments in the industrial sector.

What are the benefits of its 4 changeover contacts?

The 4 changeover contacts allow for flexible configurations, enabling the relay to control multiple circuits simultaneously, enhancing overall system efficiency.
