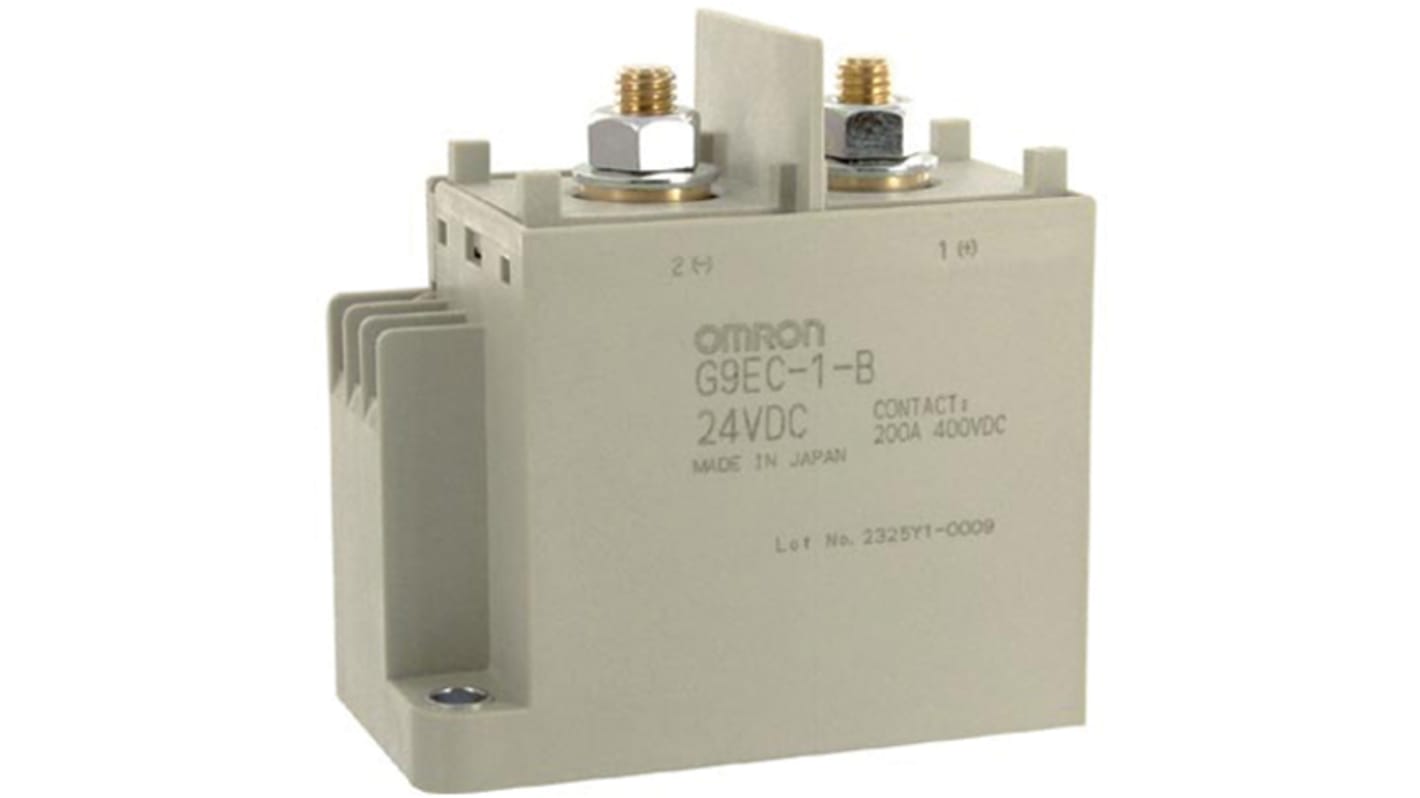

Omron Panel Mount Non-Latching Relay, 24V dc Coil, 200A Switching Current, SPST
- RS Stock No.:
- 871-9503
- Mfr. Part No.:
- G9EC-1-B DC24
- Brand:
- Omron
Discontinued
- RS Stock No.:
- 871-9503
- Mfr. Part No.:
- G9EC-1-B DC24
- Brand:
- Omron
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mounting Type | Panel Mount | |
| Switching Current | 200A | |
| Terminal Type | Screw | |
| Maximum Switching Voltage DC | 400V | |
| Length | 98mm | |
| Coil Resistance | 51.2 Ω | |
| Coil Power | 11W | |
| Isolation Coil To Contact | 2.5kV ac | |
| Maximum Operating Temperature | +50°C | |
| Series | G9EC | |
| Life | 200000 (Mechanical) Operations, 3000 (Electrical) Operations | |
| Minimum Operating Temperature | -40°C | |
| Height | 86.7mm | |
| Depth | 44mm | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type Panel Mount | ||
Switching Current 200A | ||
Terminal Type Screw | ||
Maximum Switching Voltage DC 400V | ||
Length 98mm | ||
Coil Resistance 51.2 Ω | ||
Coil Power 11W | ||
Isolation Coil To Contact 2.5kV ac | ||
Maximum Operating Temperature +50°C | ||
Series G9EC | ||
Life 200000 (Mechanical) Operations, 3000 (Electrical) Operations | ||
Minimum Operating Temperature -40°C | ||
Height 86.7mm | ||
Depth 44mm | ||
Application Power | ||
- COO (Country of Origin):
- JP
G9EA Series
DC power relays capable of interrupting high capacity DC loads while enabling compact, low-noise, safe applications
Gas injected and hermetically sealed construction
Capable of switching 400V 60A DC loads and interrupting 600A at 300Vdc max
Dimensions; L73xW36xH67.2 mm
Gas injected and hermetically sealed construction
Capable of switching 400V 60A DC loads and interrupting 600A at 300Vdc max
Dimensions; L73xW36xH67.2 mm
Approvals
UL; CSA
