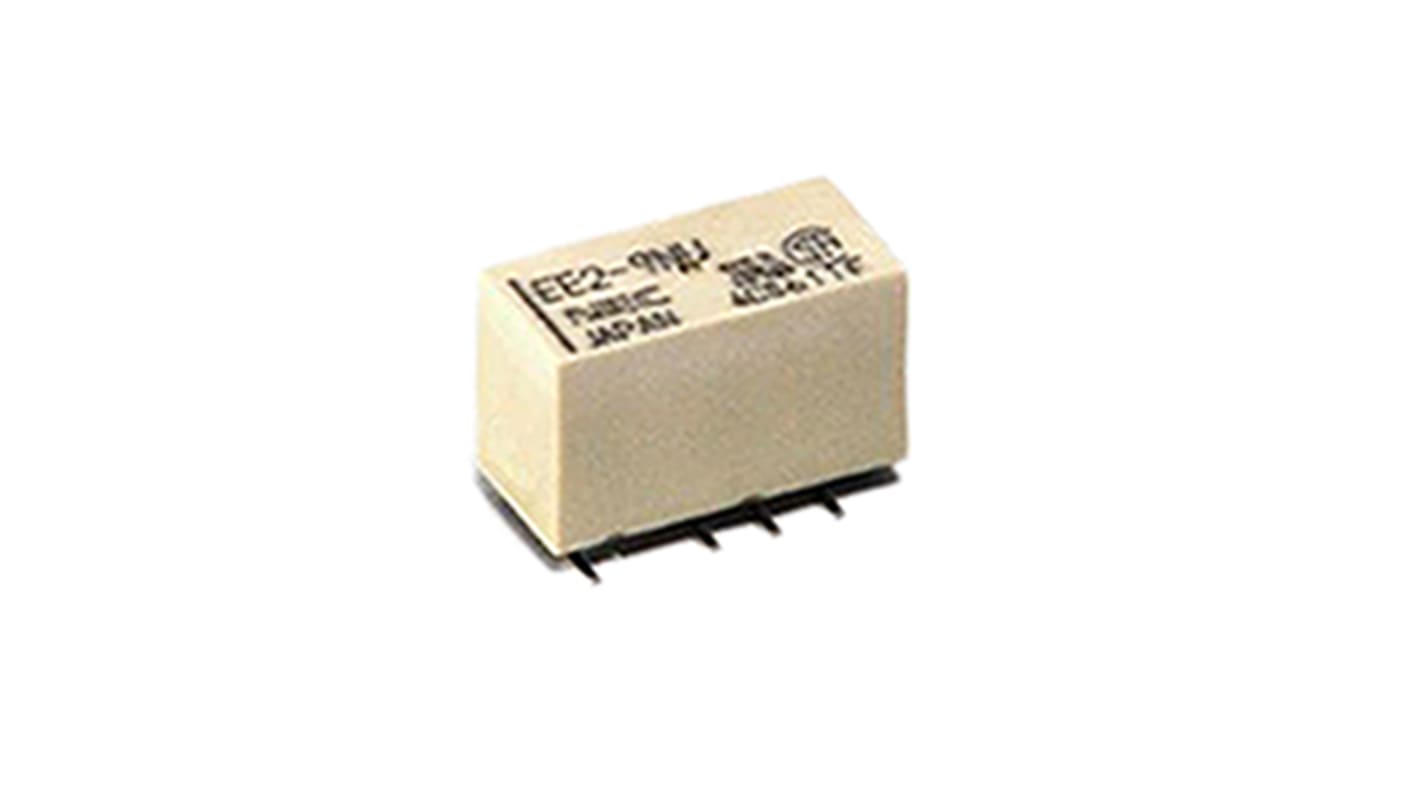

KEMET Surface Mount Non-Latching Relay, 12V dc Coil, DPDT
- RS Stock No.:
- 870-5390
- Mfr. Part No.:
- EE2-12NUH-L
- Brand:
- KEMET
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 870-5390
- Mfr. Part No.:
- EE2-12NUH-L
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Surface Mount | |
| Number of Poles | 1 | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 220V | |
| Length | 15mm | |
| Coil Resistance | 1.028 kΩ | |
| Coil Power | 140mW | |
| Depth | 7.5mm | |
| Height | 9mm | |
| Contact Material | Silver Alloy | |
| Standards Met | CSA, UL Recognized E73266 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Isolation Coil To Contact | 1.5kV ac | |
| Maximum Switching Power AC | 125VA | |
| Maximum Switching Power DC | 60 W | |
| Application | Electronic Switching Systems, PBX, Telecommunications, Terminal Equipment | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type Surface Mount | ||
Number of Poles 1 | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 220V | ||
Length 15mm | ||
Coil Resistance 1.028 kΩ | ||
Coil Power 140mW | ||
Depth 7.5mm | ||
Height 9mm | ||
Contact Material Silver Alloy | ||
Standards Met CSA, UL Recognized E73266 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 1.5kV ac | ||
Maximum Switching Power AC 125VA | ||
Maximum Switching Power DC 60 W | ||
Application Electronic Switching Systems, PBX, Telecommunications, Terminal Equipment | ||
Kemet EE2 Series
Kemet EE2 miniature signal relays are compact and slim, consuming minimal board space with a surface mount configuration. The EE2 series offer low power consumption and a high breakdown voltage which make the range suitable for electronic switching, PBX and terminal equipment.
Low power consumption
Compact and lightweight
Low magnetic interference
High Breakdown Voltage
Compact and lightweight
Low magnetic interference
High Breakdown Voltage
