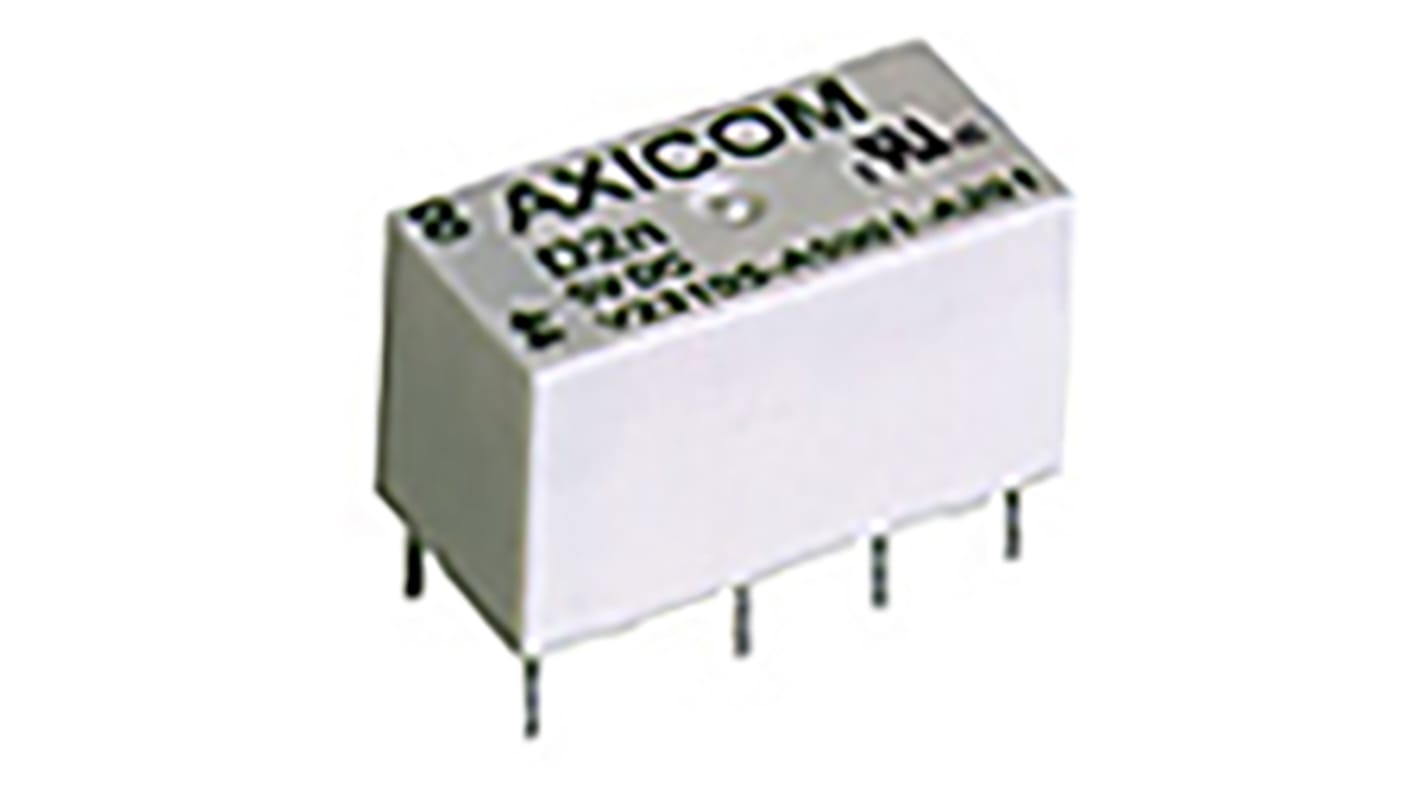

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 3A Switching Current, DPDT
- RS Stock No.:
- 864-0079
- Mfr. Part No.:
- V23105A5505A201
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 864-0079
- Mfr. Part No.:
- V23105A5505A201
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 3A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 220V dc | |
| Length | 20.2mm | |
| Coil Resistance | 1050Ω | |
| Coil Power | >500mW | |
| Depth | 10mm | |
| Isolation Coil To Contact | 1.05kVrms | |
| Maximum Operating Temperature | +85°C | |
| Series | D2n | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Height | 10.8mm | |
| Life | 15000000 (Mechanical) Operations, 300000 (Electrical) Operations | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 3A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 220V dc | ||
Length 20.2mm | ||
Coil Resistance 1050Ω | ||
Coil Power >500mW | ||
Depth 10mm | ||
Isolation Coil To Contact 1.05kVrms | ||
Maximum Operating Temperature +85°C | ||
Series D2n | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Height 10.8mm | ||
Life 15000000 (Mechanical) Operations, 300000 (Electrical) Operations | ||
T77 Series
10 Amp miniature PCB Relay
Immersion cleanable case
Operating Temperature Range -40 → +85°C
Contact Material Ag Alloy
Immersion cleanable case
Operating Temperature Range -40 → +85°C
Contact Material Ag Alloy
