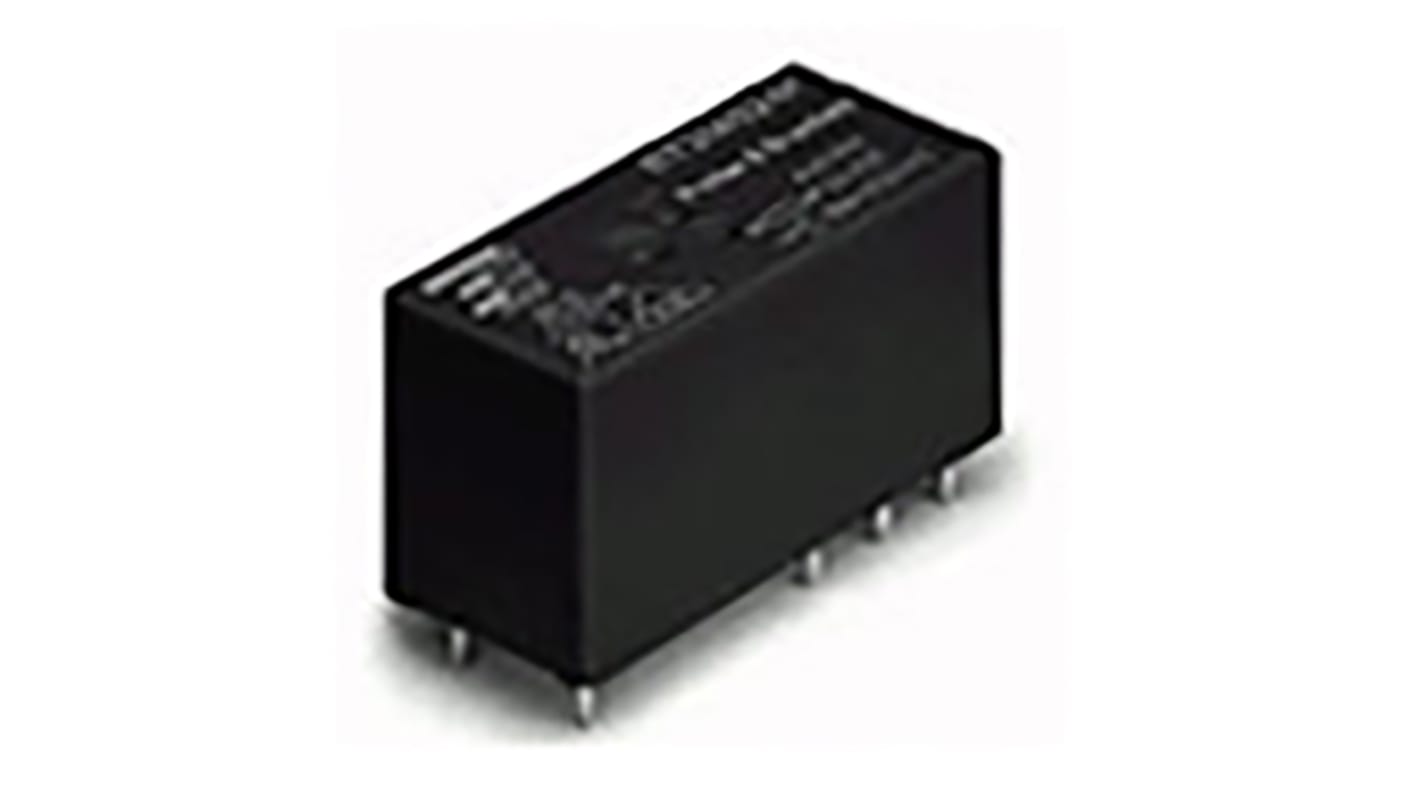

TE Connectivity PCB Mount Non-Latching Relay, 24V dc Coil, 16A Switching Current, SPDT

View all Power Relays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
864-0007
Mfr. Part No.:
RTD34024F
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Voltage

24V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

16A

Number of Poles

1

Terminal Type

Through Hole

Maximum Switching Voltage AC

400V

Length

29mm

Coil Resistance

1.44 kΩ

Coil Power

400mW

Maximum Operating Temperature

+85°C

Isolation Coil To Contact

5kV rms

Contact Material

Silver Alloy

Minimum Operating Temperature

-40°C

Series

RT1

Life

30000000 (Mechanical) Operations

Height

12.7mm

Depth

15.7mm

Maximum Switching Power AC

4 kVA

Application

General Purpose
