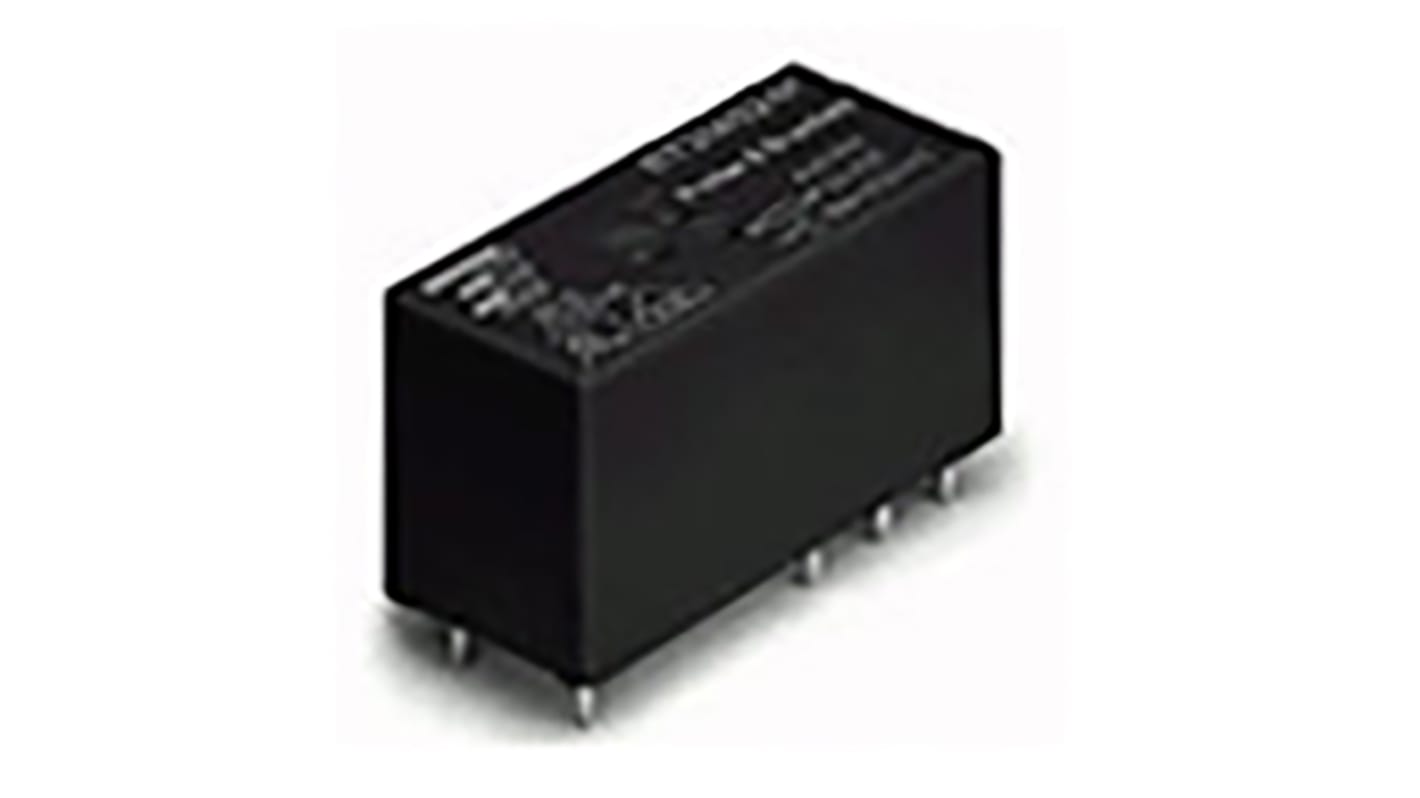

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 12A Switching Current, SPDT

View all Power Relays
Discontinued

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
TE Connectivity PCB Mount Non-Latching Relay, 9V dc Coil, 10A Switching Current, SPDT
RS Stock No.
680-3701

Each

£3.37

(exc. VAT)

£4.04

(inc. VAT)

RS Stock No.:
863-9993
Mfr. Part No.:
RT114024F
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Voltage

24V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

12A

Number of Poles

1

Latching

No

Terminal Type

Through Hole

Maximum Switching Voltage AC

400V

Length

29mm

Coil Resistance

1440Ω

Coil Power

400mW

Life

30000 (Electrical) cycles, 30000000 (Mechanical) Operations

Height

12.7mm

Contact Material

Silver Alloy

Minimum Operating Temperature

-40°C

Depth

15.7mm

Isolation Coil To Contact

5kVrms

Maximum Operating Temperature

+85°C

Series

RT1

Maximum Switching Power AC

3 kVA

Application

General Purpose

COO (Country of Origin):
AT

R10 Series Relay


R10 Series relay from TE Connectivity with transparent enclosures and solder terminals for stud or plug-in mounting

DPDT
UL, CS, RoHS Standard
