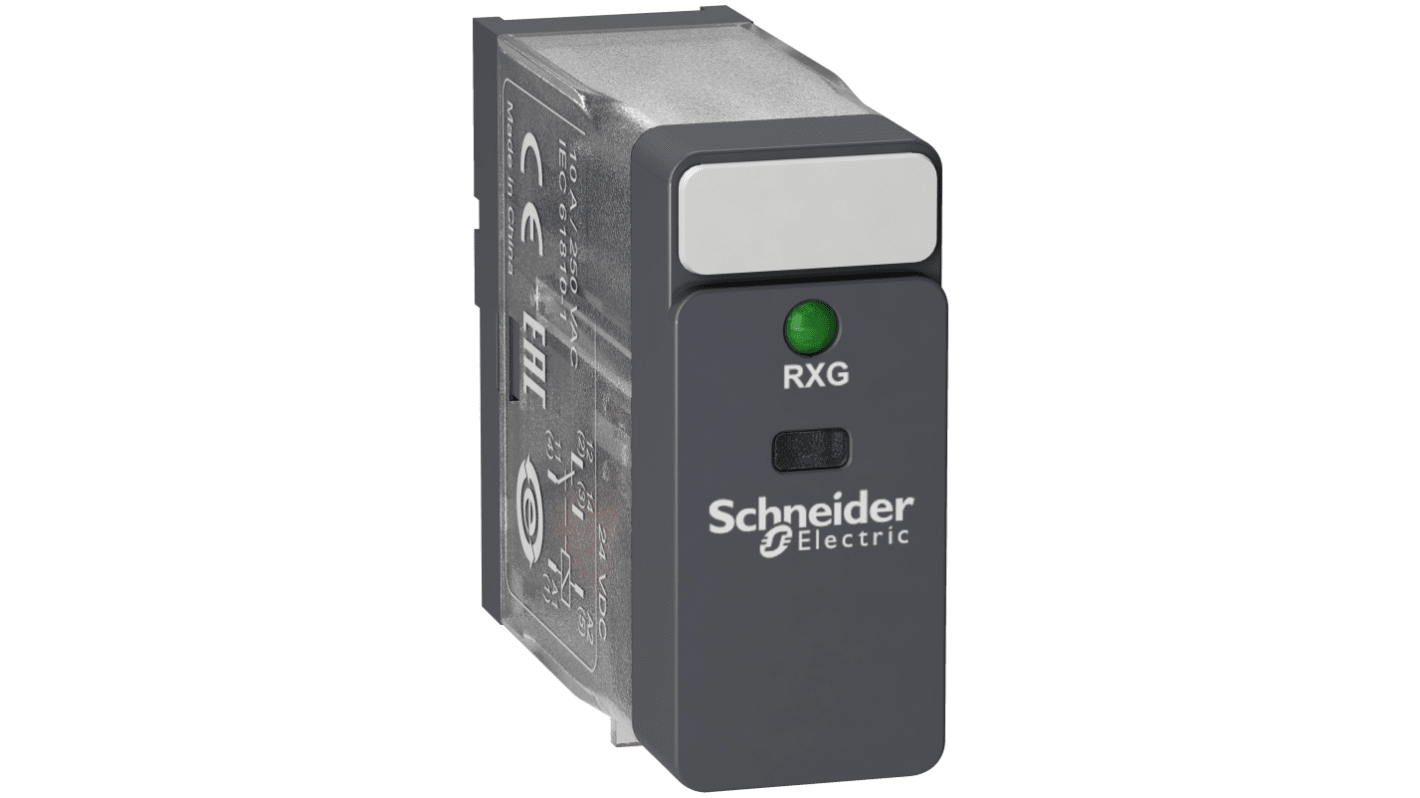

Schneider Electric Power Relay, 24V dc Coil, 10A Switching Current, SPDT

RS Stock No.:: 852-6850
Mfr. Part No.:: RXG13BD
Brand:: Schneider Electric

Schneider Electric Power Relay, 24V dc Coil, 10A Switching Current, SPDT

Subtotal (1 unit)*

£5.77

(exc. VAT)

£6.92

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

101 unit(s) ready to ship
Plus 45 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£5.77

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Learn more about RS Better World products

RS Stock No.:: 852-6850
Mfr. Part No.:: RXG13BD
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Coil Voltage	24V dc
	Product Type	Power Relay
	Contact Configuration	SPDT
	Series	Harmony Relay RXG
	Terminal Type	Plug-In
	Switching Current	10A
	Switching DC Voltage	30V dc
	Minimum Operating Temperature	-40°C
	Switching Power	2.5kVA
	Switching AC Voltage	30V ac
	Maximum Operating Temperature	70°C
	Coil Resistance	1.1kΩ
	Standards/Approvals	CSA, CE
	Height	37.1mm
	Coil Power	530mW
	Width	30.6mm
	Length	13mm
	Better World Claim	Designed for Disassembly
	Contact Material	Silver Alloy
	Better World Product	Yes
	Contact Resistance	100mΩ

	Select all
	Brand Schneider Electric
	Coil Voltage 24V dc
	Product Type Power Relay
	Contact Configuration SPDT
	Series Harmony Relay RXG
	Terminal Type Plug-In
	Switching Current 10A
	Switching DC Voltage 30V dc
	Minimum Operating Temperature -40°C
	Switching Power 2.5kVA
	Switching AC Voltage 30V ac
	Maximum Operating Temperature 70°C
	Coil Resistance 1.1kΩ
	Standards/Approvals CSA, CE
	Height 37.1mm
	Coil Power 530mW
	Width 30.6mm
	Length 13mm
	Better World Claim Designed for Disassembly
	Contact Material Silver Alloy
	Better World Product Yes
	Contact Resistance 100mΩ

COO (Country of Origin):: CN

Schneider Electric Power Relay, 250V AC/30V DC Maximum Switching Voltage, 20g Weight - Zelio Series - RXG13BD

Looking for an effective solution to control circuit traffic and prevent voltages from running amok? Use this power relay from Schneider Electric. It opens and closes PCB feeds, so you get optimal PLC performance. A plug-in terminal makes installation a breeze, while the operating and reset times of 20ms mean it's lightning-quick. For added reliability, the unit offers mechanical durability of 10 million cycles, so you can count on it for long-lasting use. Look to the green indicator to stay in the loop – it clearly displays your system's operating status.

• Compact dimensions of 13 (L) x 37.1 (H) x 30.6mm (D) to maximise space on densely packed PCBs

• Light weight of 20g adds minimal strain to your installation

• Broad operating temperature range between -40°C and +70°C for use in challenging conditions

Applications

• Automated assembly lines

• Medical imaging equipment

• Automatic doors

• Transport industry

What's the switching current of this power relay?

It has a switching current of 10A, so is ideal for use in demanding electrical applications.

Is this a latching or non-latching power relay?

It's non-latching, so it conveniently returns to its default NC contact configuration after activation. This means there's no need to manually reset it.
