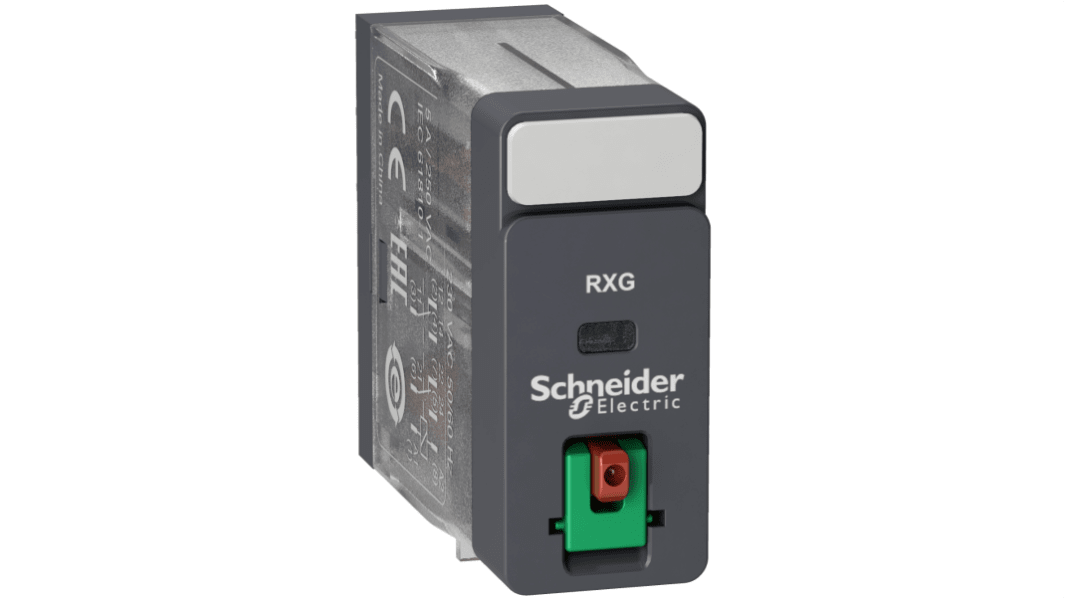

Schneider Electric Plug In Power Relay, 230V ac Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 852-6812
- Distrelec Article No.:
- 303-02-840
- Mfr. Part No.:
- RXG21P7
- Brand:
- Schneider Electric
Subtotal (1 unit)**
£10.74
(exc. VAT)
£12.89
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit |
|---|---|
| 1 - 4 | £10.74 |
| 5 - 9 | £10.41 |
| 10 + | £9.99 |
**price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 852-6812
- Distrelec Article No.:
- 303-02-840
- Mfr. Part No.:
- RXG21P7
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | Plug In | |
| Switching Current | 5A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 13mm | |
| Coil Resistance | 23500Ω | |
| Coil Power | 820mW | |
| Better World Verification | Green Premium | |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Height | 37.1mm | |
| Better World Product | Yes | |
| Isolation Coil To Contact | 5kV ac | |
| Maximum Operating Temperature | +70°C | |
| Series | Harmony Relay RXG | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Depth | 30.6mm | |
| Maximum Switching Power DC | 150 W | |
| Maximum Switching Power AC | 1.25 kVA | |
| Application | Interface | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 5A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 30V dc | ||
Length 13mm | ||
Coil Resistance 23500Ω | ||
Coil Power 820mW | ||
Better World Verification Green Premium | ||
Life 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Height 37.1mm | ||
Better World Product Yes | ||
Isolation Coil To Contact 5kV ac | ||
Maximum Operating Temperature +70°C | ||
Series Harmony Relay RXG | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Depth 30.6mm | ||
Maximum Switching Power DC 150 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Interface | ||
