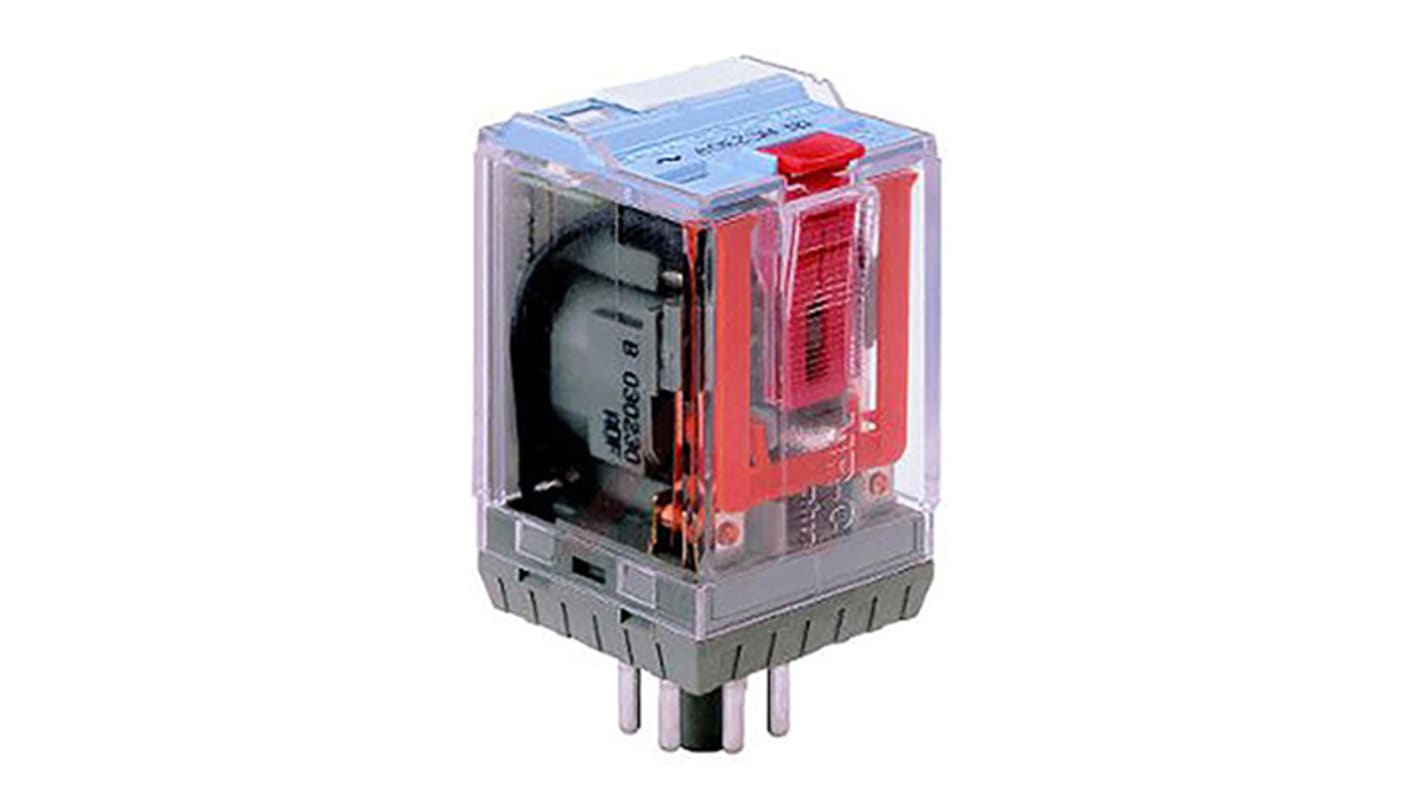

Turck Plug In Power Relay, 32V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 842-3530
- Mfr. Part No.:
- C2-A20FX/032VDC
- Brand:
- Turck
Bulk discount available
Subtotal (1 unit)*
£47.10
(exc. VAT)
£56.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 2 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £47.10 |
5 - 9 | £45.21 |
10 + | £42.85 |
*price indicative
- RS Stock No.:
- 842-3530
- Mfr. Part No.:
- C2-A20FX/032VDC
- Brand:
- Turck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Turck | |
Coil Voltage | 32V dc | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 10A | |
Number of Poles | 2 | |
Latching | No | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 250V | |
Maximum Switching Voltage DC | 220V dc | |
Length | 35mm | |
Coil Power | 1.3W | |
Life | ≥100000 (Electrical) Operations, 20000000 (Mechanical) Operations | |
Maximum Operating Temperature | +70°C | |
Series | C2-A20 | |
Minimum Operating Temperature | -40°C | |
Contact Material | Silver Alloy | |
Isolation Coil To Contact | 2.5kV | |
Depth | 35mm | |
Height | 58.5mm | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Turck | ||
Coil Voltage 32V dc | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 220V dc | ||
Length 35mm | ||
Coil Power 1.3W | ||
Life ≥100000 (Electrical) Operations, 20000000 (Mechanical) Operations | ||
Maximum Operating Temperature +70°C | ||
Series C2-A20 | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 2.5kV | ||
Depth 35mm | ||
Height 58.5mm | ||
Application General Purpose | ||
- COO (Country of Origin):
- ES
10A Plug-In Relays (8 or 11 Pin)
Dual function, colour coded test button push to test or lift to latch
Mechanical flag indicator and coil LED as standard
Operating Temperature Range -20 to +60°C
Contact material silver-nickel (AgNi)
H71, W35, D35mm
Mechanical flag indicator and coil LED as standard
Operating Temperature Range -20 to +60°C
Contact material silver-nickel (AgNi)
H71, W35, D35mm
