Omron Plug In Power Relay, 110V dc Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 841-1587
- Mfr. Part No.:
- MY2 DC100/110(S)
- Brand:
- Omron

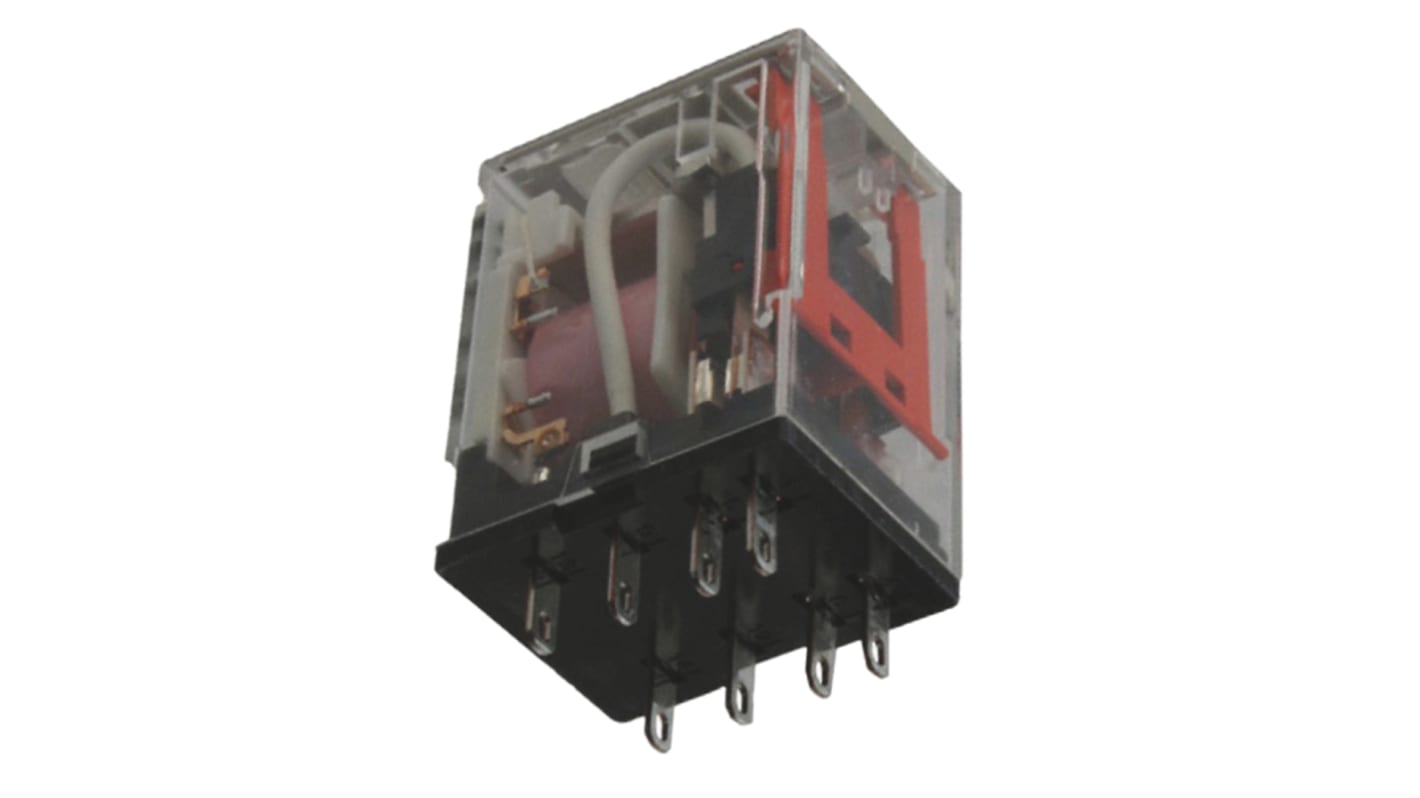

Image representative of range
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 841-1587
- Mfr. Part No.:
- MY2 DC100/110(S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 110V dc | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 5A | |
Number of Poles | 2 | |
Latching | No | |
Series | MY | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 125V dc | |
Length | 21.5mm | |
Coil Resistance | 11100Ω | |
Coil Power | 900mW | |
Isolation Coil To Contact | 2kV ac | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -55°C | |
Depth | 36mm | |
Height | 28mm | |
Life | 100000000 (Mechanical) Operations, 500000 (Electrical) Operations | |
Maximum Switching Power DC | 300 W | |
Maximum Switching Power AC | 2.5 kVA | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 110V dc | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 5A | ||
Number of Poles 2 | ||
Latching No | ||
Series MY | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 21.5mm | ||
Coil Resistance 11100Ω | ||
Coil Power 900mW | ||
Isolation Coil To Contact 2kV ac | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -55°C | ||
Depth 36mm | ||
Height 28mm | ||
Life 100000000 (Mechanical) Operations, 500000 (Electrical) Operations | ||
Maximum Switching Power DC 300 W | ||
Maximum Switching Power AC 2.5 kVA | ||
Application General Purpose | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
MY Series
Switch power: 10A version: 1100W, 5A version 660W
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm
Approvals
VDE, UL, CSA
When 8411587 is no longer for sale, please see RS article 2711909 for the updated version in the new range of relays from Omron.
Note
This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.
