- RS Stock No.:
- 828-7227
- Mfr. Part No.:

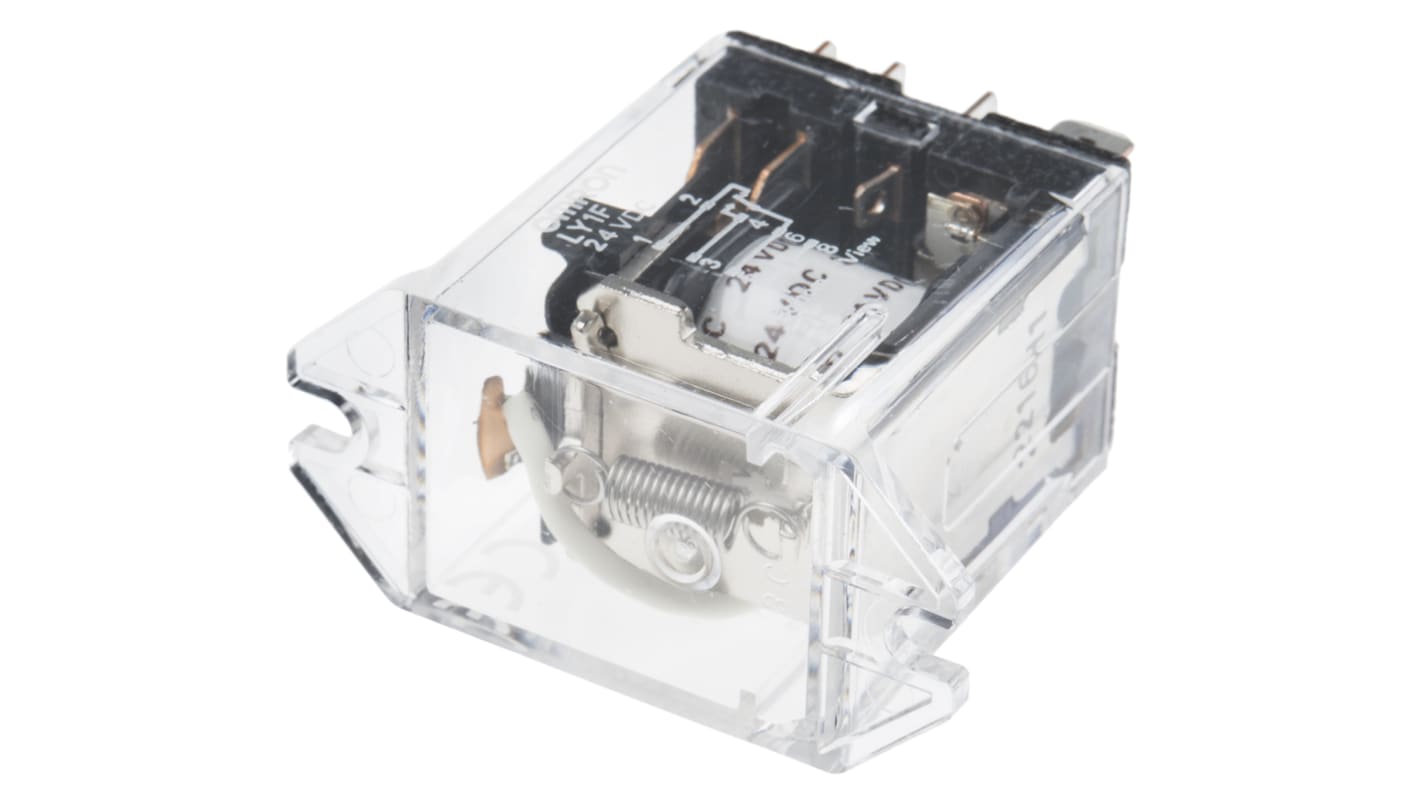

- LY1F DC24
- Brand:
- Omron
21 In stock - FREE next working day delivery available
Added
Price Each
£9.65
(exc. VAT)
£11.58
(inc. VAT)
Units | Per unit |
1 - 4 | £9.65 |
5 - 9 | £9.38 |
10 + | £8.96 |
- RS Stock No.:
- 828-7227
- Mfr. Part No.:
- LY1F DC24
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details
LY Series
Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm
Approvals
VDE, UL, CSA, TUV
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Contact Configuration | SPDT |
Mounting Type | Plug In |
Switching Current | 15A |
Number of Poles | 1 |
Latching | No |
Terminal Type | PCB Pin |
Maximum Switching Voltage AC | 250V ac |
Maximum Switching Voltage DC | 125V dc |
Length | 22.5mm |
Coil Resistance | 650Ω |
Coil Power | 900mW |
Series | LY1 |
Maximum Operating Temperature | +55°C |
Isolation Coil To Contact | 2kV ac |
Minimum Operating Temperature | -25°C |
Depth | 35.5mm |
Height | 44mm |
Contact Material | Silver Alloy |
Life | 100000000 (Mechanical) Operations, 200000 (Electrical) Operations |
Maximum Switching Power AC | 1.7 kVA |
Maximum Switching Power DC | 360 W |
Application | General Purpose, Power |
