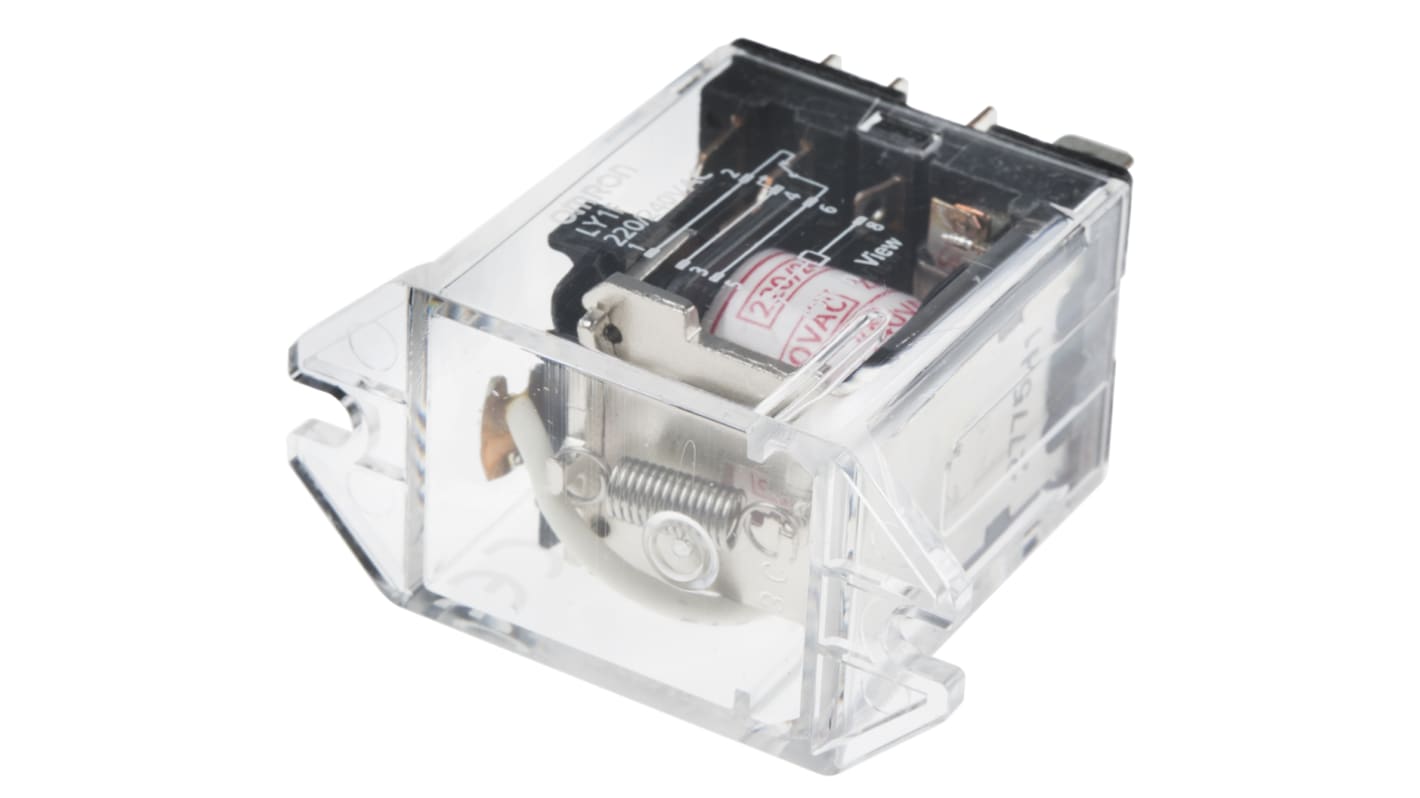

Omron Plug In Non-Latching Relay, 240V ac Coil, 15A Switching Current, SPDT
- RS Stock No.:
- 828-7211
- Mfr. Part No.:
- LY1F-AC220/240
- Brand:
- Omron
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 828-7211
- Mfr. Part No.:
- LY1F-AC220/240
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 240V ac | |
| Contact Configuration | SPDT | |
| Mounting Type | Plug In | |
| Switching Current | 15A | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 125V | |
| Length | 22.5mm | |
| Coil Resistance | 18.79 kΩ | |
| Coil Power | 1.1W | |
| Life | 200000 (Electrical) Operations, 50000000 (Mechanical) Operations | |
| Height | 44mm | |
| Depth | 35.5mm | |
| Contact Material | Silver Alloy | |
| Isolation Coil To Contact | 2kV ac | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -25°C | |
| Maximum Switching Power AC | 1.7 kVA | |
| Maximum Switching Power DC | 360 W | |
| Application | General Purpose, Power | |
