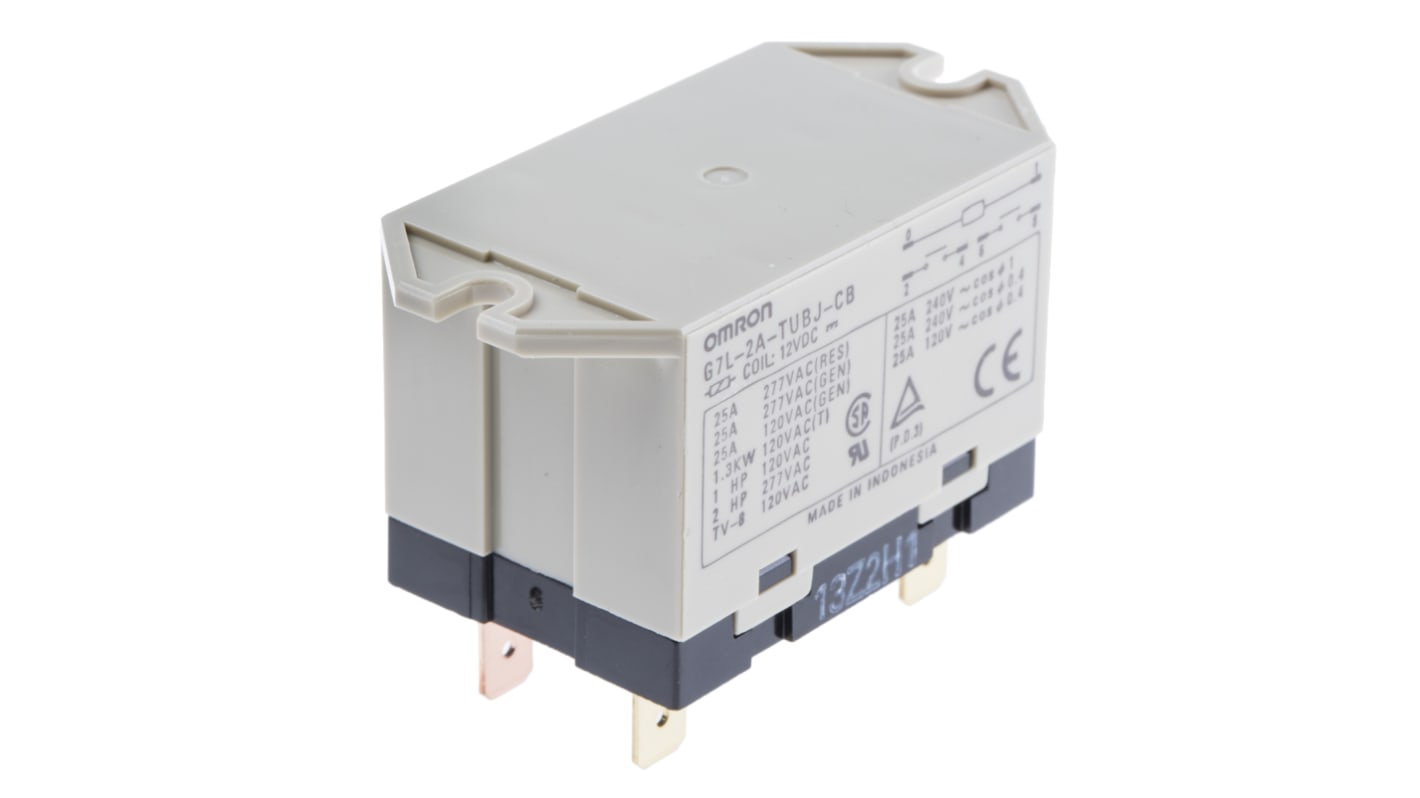

Omron Flange Power Relay, 12V dc Coil, 25A Switching Current, DPST
- RS Stock No.:
- 828-7117
- Mfr. Part No.:
- G7L-2A-TUB-J-CB-DC12
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£15.90
(exc. VAT)
£19.08
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 3 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 1 | £15.90 |
| 2 - 9 | £14.34 |
| 10 - 19 | £13.80 |
| 20 - 39 | £13.42 |
| 40 + | £13.13 |
*price indicative
- RS Stock No.:
- 828-7117
- Mfr. Part No.:
- G7L-2A-TUB-J-CB-DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPST | |
| Mount Type | Flange | |
| Series | G7L | |
| Terminal Type | Quick Connect | |
| Switching Current | 25A | |
| Switching AC Voltage | 125V ac | |
| Minimum Operating Temperature | -25°C | |
| Switching Power | 1.9W | |
| Maximum Operating Temperature | 60°C | |
| Coil Resistance | 75Ω | |
| Length | 68.5mm | |
| Coil Power | 1.9W | |
| Height | 36mm | |
| Standards/Approvals | UL, CSA | |
| Width | 33.5mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 50mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration DPST | ||
Mount Type Flange | ||
Series G7L | ||
Terminal Type Quick Connect | ||
Switching Current 25A | ||
Switching AC Voltage 125V ac | ||
Minimum Operating Temperature -25°C | ||
Switching Power 1.9W | ||
Maximum Operating Temperature 60°C | ||
Coil Resistance 75Ω | ||
Length 68.5mm | ||
Coil Power 1.9W | ||
Height 36mm | ||
Standards/Approvals UL, CSA | ||
Width 33.5mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 50mΩ | ||
G7L Series
The G7L Range of Omron general purpose relays
perfectly suited for high-inrush fluid pump controls: pool/spa, water
processing, chemical industry and others.
Quick-connect, screw, and PCB terminals also available.
All G7L models up to UL Class B construction standard.
