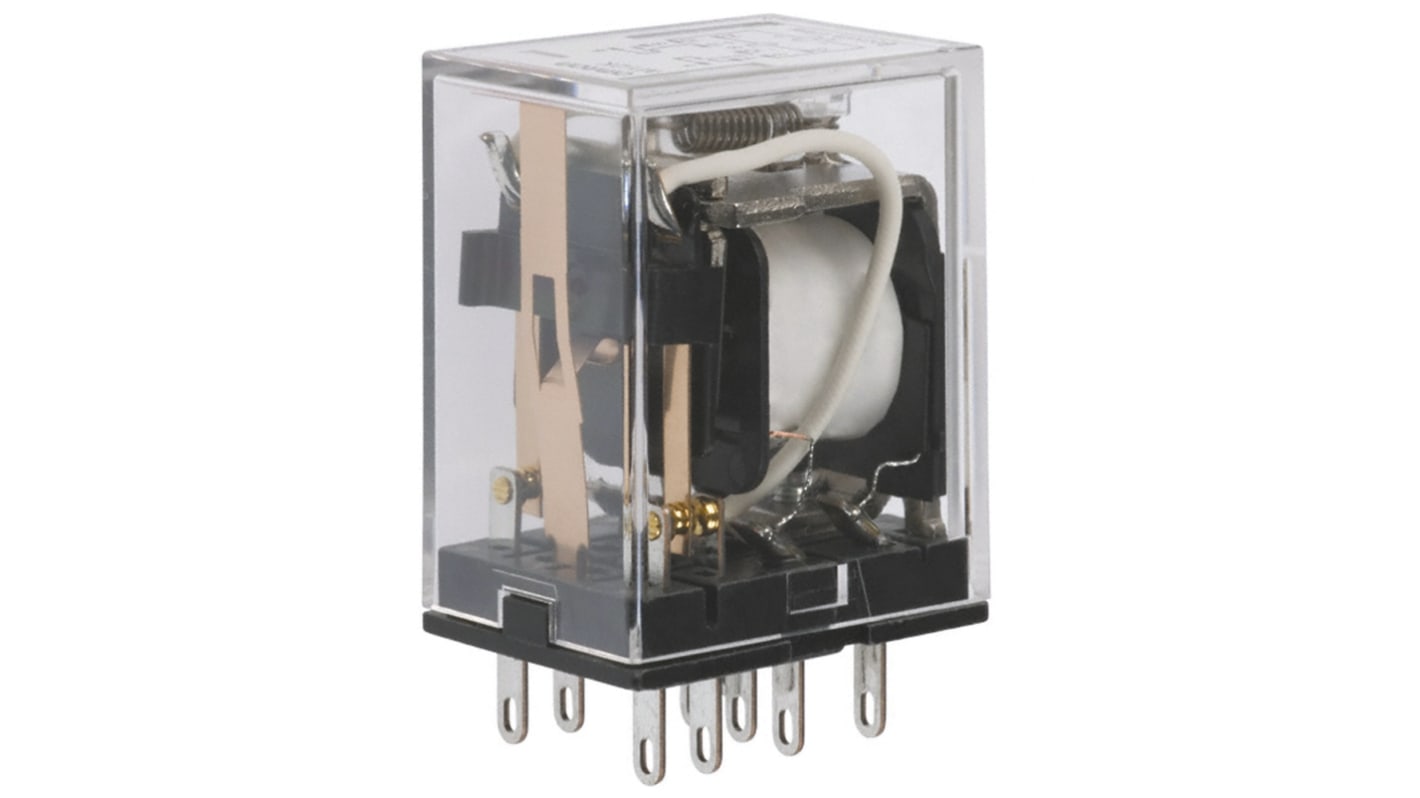

Omron Plug In Non-Latching Relay, 120V ac Coil, 3A Switching Current, DPDT
- RS Stock No.:
- 827-8232
- Mfr. Part No.:
- MY2K-AC120
- Brand:
- Omron
Discontinued
- RS Stock No.:
- 827-8232
- Mfr. Part No.:
- MY2K-AC120
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 120V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | Plug In | |
| Switching Current | 3A | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 125V | |
| Length | 21.5mm | |
| Life | 100000000 (Mechanical) Operations, 200000 (Electrical) Operations | |
| Depth | 36mm | |
| Height | 28mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -55°C | |
| Isolation Coil To Contact | 1.5kV ac | |
| Contact Material | Gold Plated | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 120V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 3A | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 125V | ||
Length 21.5mm | ||
Life 100000000 (Mechanical) Operations, 200000 (Electrical) Operations | ||
Depth 36mm | ||
Height 28mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -55°C | ||
Isolation Coil To Contact 1.5kV ac | ||
Contact Material Gold Plated | ||
Application Power | ||
MY2K Series
Magnetic Latching Relay Ideal for Memory and Data Transmission Circuits
Easy monitoring of ON/OFF operation thanks to the built-in operation indicator mechanism
Double-winding latch system that holds residual magnetism
Mechanical coil indicator
Latching
Use socket 196-6153 (PCB) or 196-6147 (DIN rail)
Switching current 3A
Switching voltage 220 V ac; 24 V dc
Dimensions: H36mm x W21.5mm x D28mm
Operating temperature range: -5 to +45°C
Easy monitoring of ON/OFF operation thanks to the built-in operation indicator mechanism
Double-winding latch system that holds residual magnetism
Mechanical coil indicator
Latching
Use socket 196-6153 (PCB) or 196-6147 (DIN rail)
Switching current 3A
Switching voltage 220 V ac; 24 V dc
Dimensions: H36mm x W21.5mm x D28mm
Operating temperature range: -5 to +45°C
Approvals
VDE, UL, CSA
