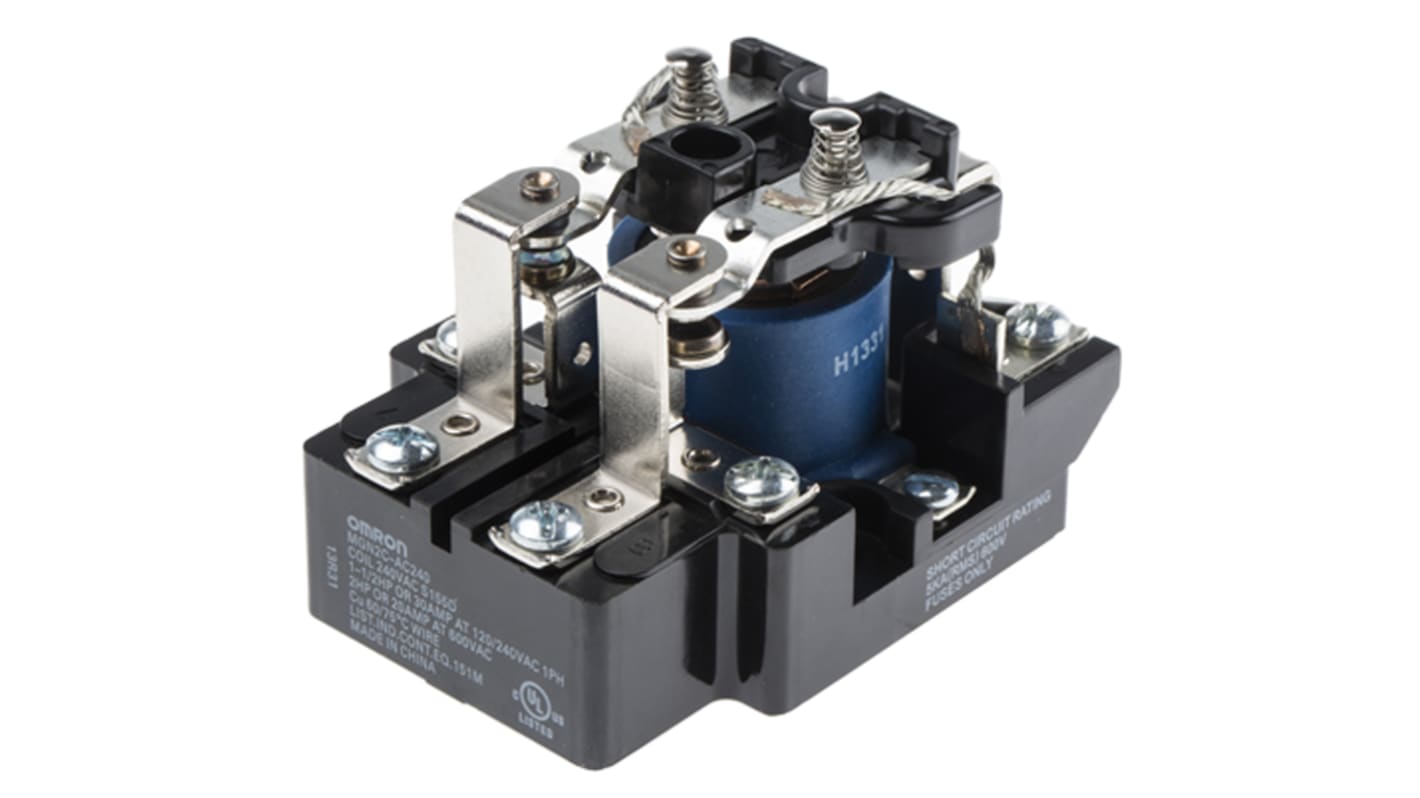

Omron Panel Mount Non-Latching Relay, 240V ac Coil, 30A Switching Current, DPDT
- RS Stock No.:
- 827-7946
- Mfr. Part No.:
- MGN2C-AC240
- Brand:
- Omron
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 827-7946
- Mfr. Part No.:
- MGN2C-AC240
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 240V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | Panel Mount | |
| Switching Current | 30A | |
| Terminal Type | Screw | |
| Maximum Switching Voltage AC | 600V | |
| Maximum Switching Voltage DC | 28V | |
| Length | 84.33mm | |
| Coil Resistance | 1.17 kΩ | |
| Coil Power | 9.5W | |
| Minimum Operating Temperature | -45°C | |
| Contact Material | Silver Alloy | |
| Life | 100000 (Electrical) Operations, 1000000 (Mechanical) Operations | |
| Height | 60.45mm | |
| Depth | 63.5mm | |
| Maximum Operating Temperature | +80°C | |
| Series | MGN2C | |
| Maximum Switching Power AC | 7.2 kVA | |
| Priced to Clear | Yes | |
| Maximum Switching Power DC | 840 W | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 240V ac | ||
Contact Configuration DPDT | ||
Mounting Type Panel Mount | ||
Switching Current 30A | ||
Terminal Type Screw | ||
Maximum Switching Voltage AC 600V | ||
Maximum Switching Voltage DC 28V | ||
Length 84.33mm | ||
Coil Resistance 1.17 kΩ | ||
Coil Power 9.5W | ||
Minimum Operating Temperature -45°C | ||
Contact Material Silver Alloy | ||
Life 100000 (Electrical) Operations, 1000000 (Mechanical) Operations | ||
Height 60.45mm | ||
Depth 63.5mm | ||
Maximum Operating Temperature +80°C | ||
Series MGN2C | ||
Maximum Switching Power AC 7.2 kVA | ||
Priced to Clear Yes | ||
Maximum Switching Power DC 840 W | ||
Application Power | ||
Non Compliant
