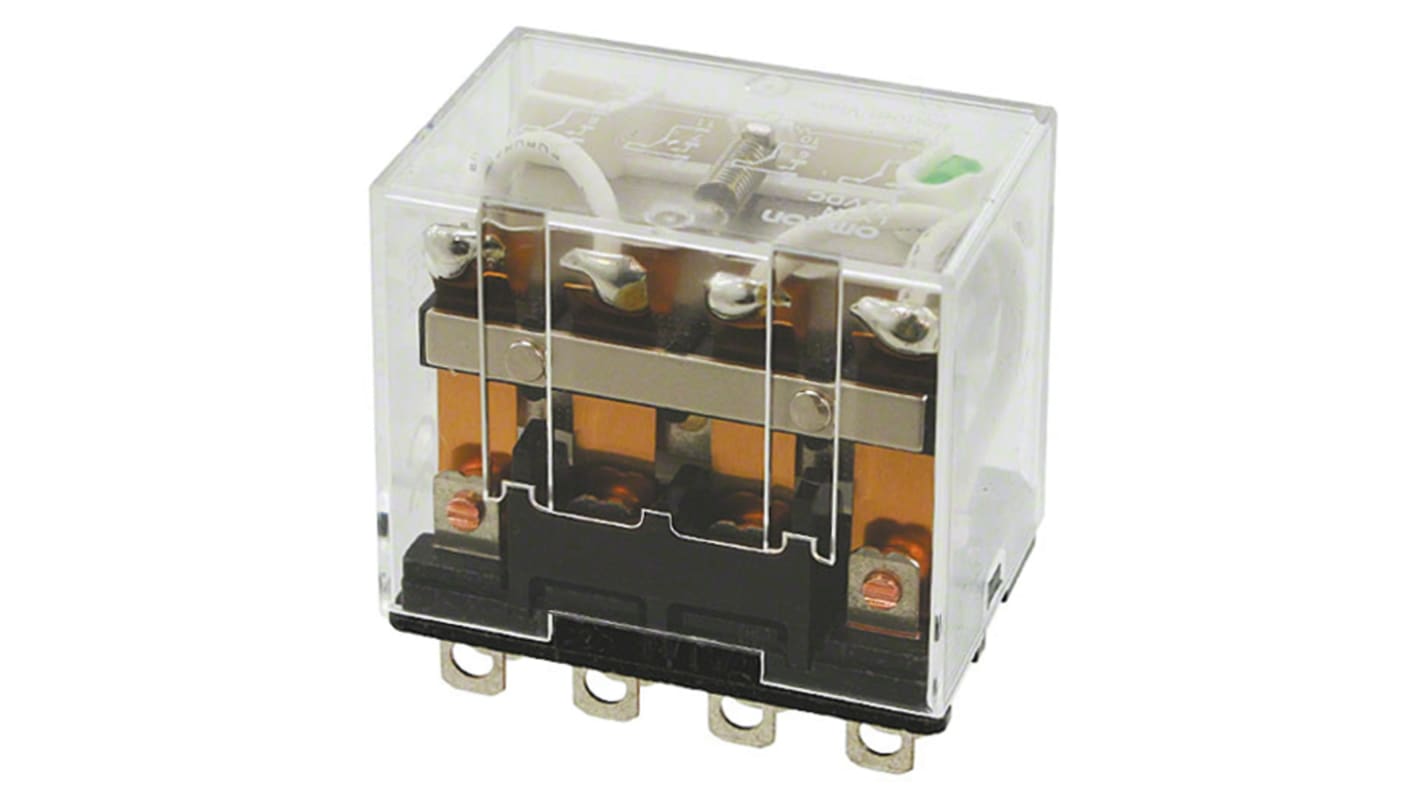

Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, 4PDT
- RS Stock No.:
- 827-7879
- Mfr. Part No.:
- LY4F-DC24
- Brand:
- Omron
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£39.89
(exc. VAT)
£47.87
(inc. VAT)
- RS Stock No.:
- 827-7879
- Mfr. Part No.:
- LY4F-DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Contact Configuration | 4PDT | |
| Mounting Type | Plug In | |
| Switching Current | 10A | |
| Number of Poles | 4 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 125V dc | |
| Length | 41.5mm | |
| Coil Resistance | 350Ω | |
| Coil Power | 1.5W | |
| Depth | 35.5mm | |
| Series | LY4F | |
| Maximum Operating Temperature | +55°C | |
| Isolation Coil To Contact | 2kV ac | |
| Minimum Operating Temperature | -25°C | |
| Contact Material | Silver Alloy | |
| Life | 100000000 (Mechanical) Operations, 200000 (Electrical) Operations | |
| Height | 44mm | |
| Maximum Switching Power AC | 1.1 kVA | |
| Maximum Switching Power DC | 240 W | |
| Application | General Purpose, Power | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 4 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 41.5mm | ||
Coil Resistance 350Ω | ||
Coil Power 1.5W | ||
Depth 35.5mm | ||
Series LY4F | ||
Maximum Operating Temperature +55°C | ||
Isolation Coil To Contact 2kV ac | ||
Minimum Operating Temperature -25°C | ||
Contact Material Silver Alloy | ||
Life 100000000 (Mechanical) Operations, 200000 (Electrical) Operations | ||
Height 44mm | ||
Maximum Switching Power AC 1.1 kVA | ||
Maximum Switching Power DC 240 W | ||
Application General Purpose, Power | ||
LY Series
Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm
Approvals
VDE, UL, CSA, TUV
