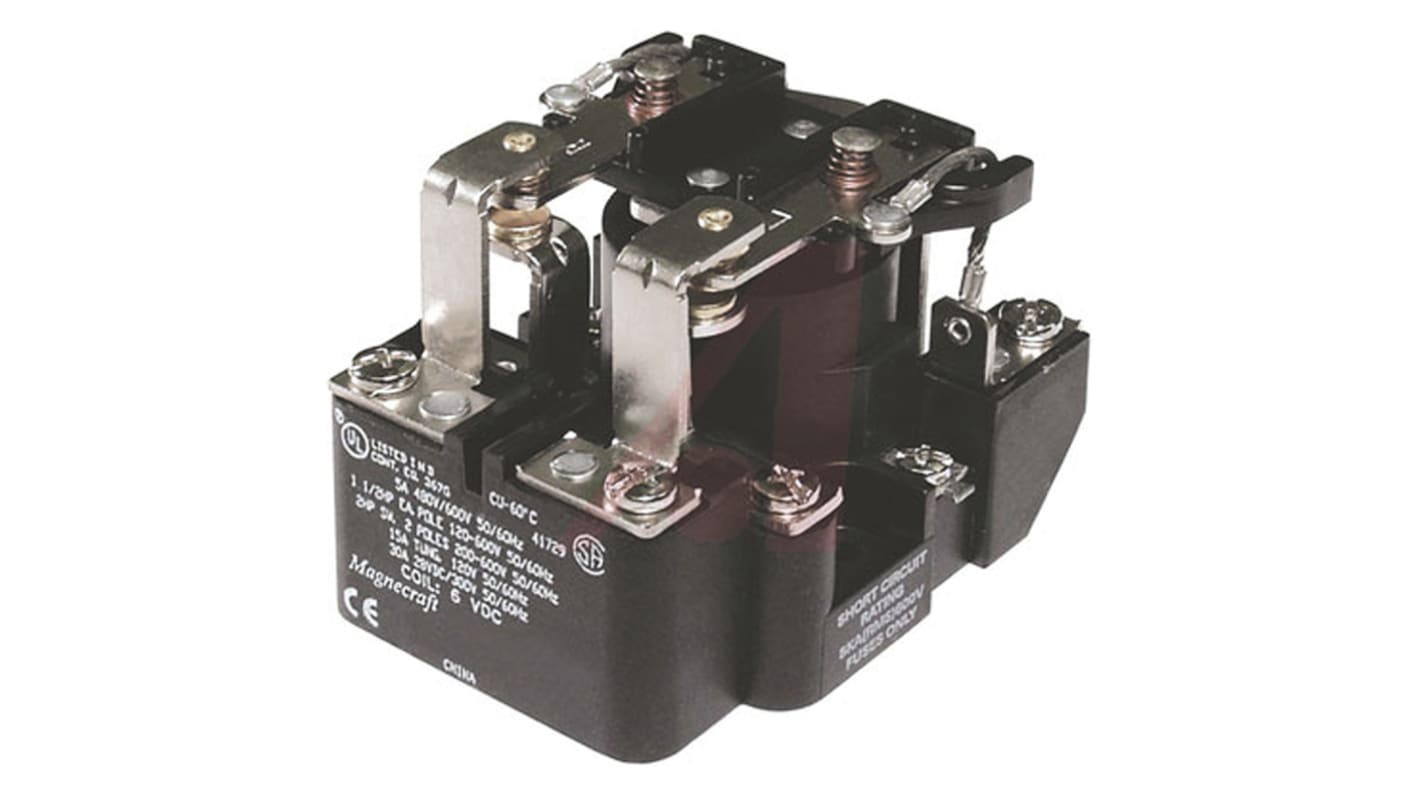

Schneider Electric Panel Mount Power Relay, 24V dc Coil, 40A Switching Current, DPDT
- RS Stock No.:
- 827-7062
- Distrelec Article No.:
- 304-02-106
- Mfr. Part No.:
- 199X-13
- Brand:
- Schneider Electric
Discontinued
- RS Stock No.:
- 827-7062
- Distrelec Article No.:
- 304-02-106
- Mfr. Part No.:
- 199X-13
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Panel Mount | |
| Switching Current | 40A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Screw | |
| Maximum Switching Voltage AC | 600V | |
| Maximum Switching Voltage DC | 28V dc | |
| Length | 79.2mm | |
| Coil Resistance | 290Ω | |
| Coil Power | 4W | |
| Life | 6000 (Electrical) Operations | |
| Height | 58.7mm | |
| Depth | 63.5mm | |
| Isolation Coil To Contact | 2.2kV ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +55°C | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 1-1/2 hp | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type Panel Mount | ||
Switching Current 40A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Screw | ||
Maximum Switching Voltage AC 600V | ||
Maximum Switching Voltage DC 28V dc | ||
Length 79.2mm | ||
Coil Resistance 290Ω | ||
Coil Power 4W | ||
Life 6000 (Electrical) Operations | ||
Height 58.7mm | ||
Depth 63.5mm | ||
Isolation Coil To Contact 2.2kV ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +55°C | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 1-1/2 hp | ||
Application Power | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
199 Series
The 199 series open type, heavy duty power relays offer high-capacity switching with high dielectric strength.
High-power contacts
Riveted construction
Blowout magnet option
RoHS compliant
Riveted construction
Blowout magnet option
RoHS compliant
