RS PRO PCB Mount Signal Relay, 24V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 819-8984
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 819-8984
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current AC | 2 A | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 220V dc | |
| Maximum Switching Power DC | 60 W | |
| Length | 15mm | |
| Latching | No | |
| Depth | 7.5mm | |
| Height | 9.4mm | |
| Terminal Type | PCB Pin | |
| Application | Small Signal Relay | |
| Switching Current | 2A | |
| Number of Poles | 1 | |
| Coil Resistance | 2880Ω | |
| Coil Power | 200mW | |
| Life | 2500000 Operations | |
| Maximum Switching Power AC | 125VA | |
| Features | Compact and Lightweight, Low Magnetic Interference, Low Power Consumption | |
| Isolation Coil To Contact | 1.5kV ac | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Standards Met | RoHS Compliant | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current AC 2 A | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Power DC 60 W | ||
Length 15mm | ||
Latching No | ||
Depth 7.5mm | ||
Height 9.4mm | ||
Terminal Type PCB Pin | ||
Application Small Signal Relay | ||
Switching Current 2A | ||
Number of Poles 1 | ||
Coil Resistance 2880Ω | ||
Coil Power 200mW | ||
Life 2500000 Operations | ||
Maximum Switching Power AC 125VA | ||
Features Compact and Lightweight, Low Magnetic Interference, Low Power Consumption | ||
Isolation Coil To Contact 1.5kV ac | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Standards Met RoHS Compliant | ||
- COO (Country of Origin):
- GB

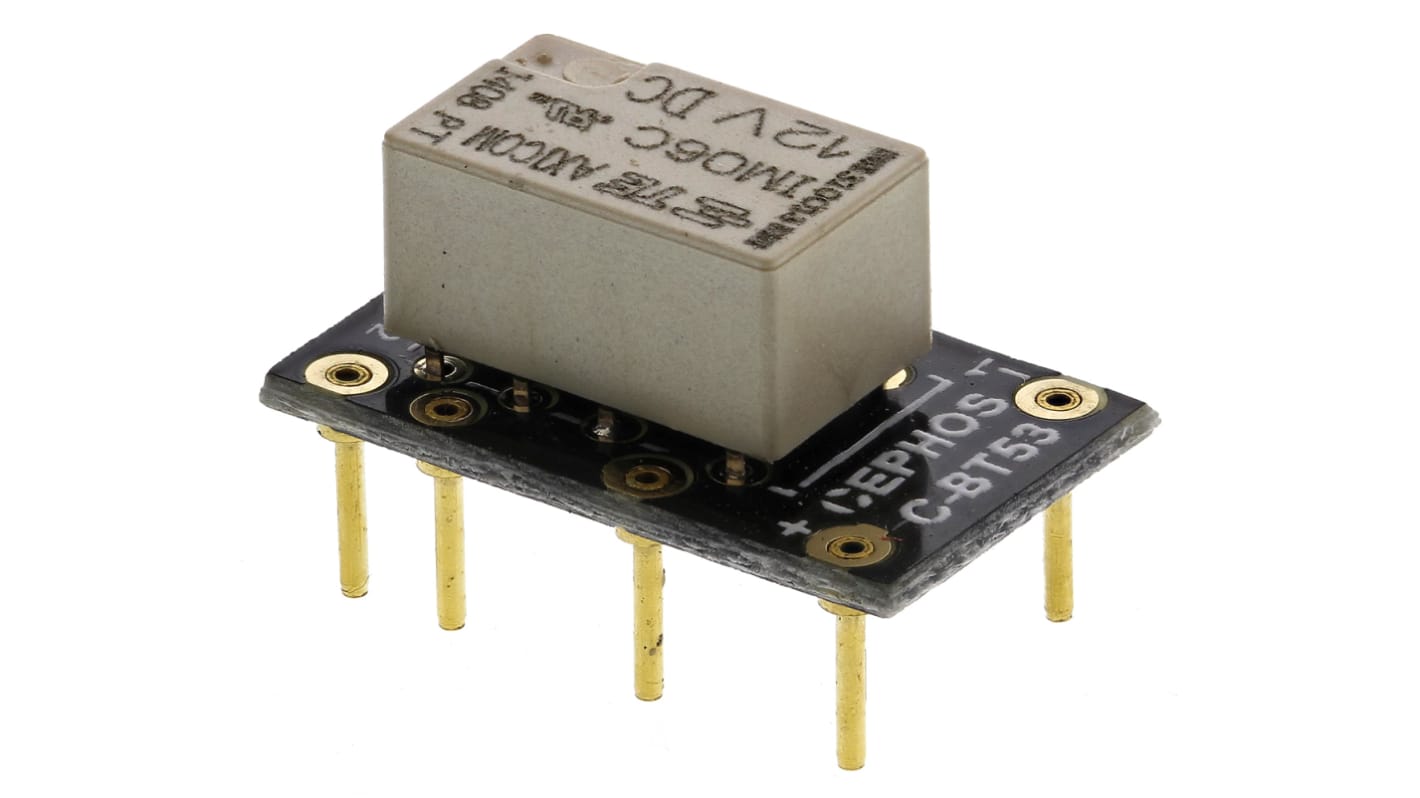

C-BT-53 Series Relay
Relay module to replace the obsolete BT53 series of small signal relays. The C-BT53 overall module dimensions are 16 x 10mm, identical to the original BT53, G5A-234P-53 and FBR46 footprints.
Direct replacement for the BT53 / BT53W series, Omron G5A-234P-53, Panasonic DF2 and Fujitsu FBR46 relays
Easy insertion into existing 12W dil socket, or direct soldering into printed circuit board
Easy insertion into existing 12W dil socket, or direct soldering into printed circuit board
