RS PRO PCB Mount Non-Latching Relay, 5V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 819-8981
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 100)
£36.887
(exc. VAT)
£44.264
(inc. VAT)
- RS Stock No.:
- 819-8981
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 2A | |
| Number of Poles | 2 | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 220V | |
| Length | 16mm | |
| Coil Resistance | 178 Ω | |
| Coil Power | 140mW | |
| Standards Met | RoHS Compliant | |
| Isolation Coil To Contact | 1.8kV rms | |
| Contact Material | PdRu | |
| Life | 2500000 Operations | |
| Height | 6.6mm | |
| Depth | 10mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Switching Power AC | 62.5VA | |
| Maximum Switching Power DC | 60 W | |
| Application | Small Signal Relay | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 2A | ||
Number of Poles 2 | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 220V | ||
Length 16mm | ||
Coil Resistance 178 Ω | ||
Coil Power 140mW | ||
Standards Met RoHS Compliant | ||
Isolation Coil To Contact 1.8kV rms | ||
Contact Material PdRu | ||
Life 2500000 Operations | ||
Height 6.6mm | ||
Depth 10mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Power AC 62.5VA | ||
Maximum Switching Power DC 60 W | ||
Application Small Signal Relay | ||
- COO (Country of Origin):
- GB

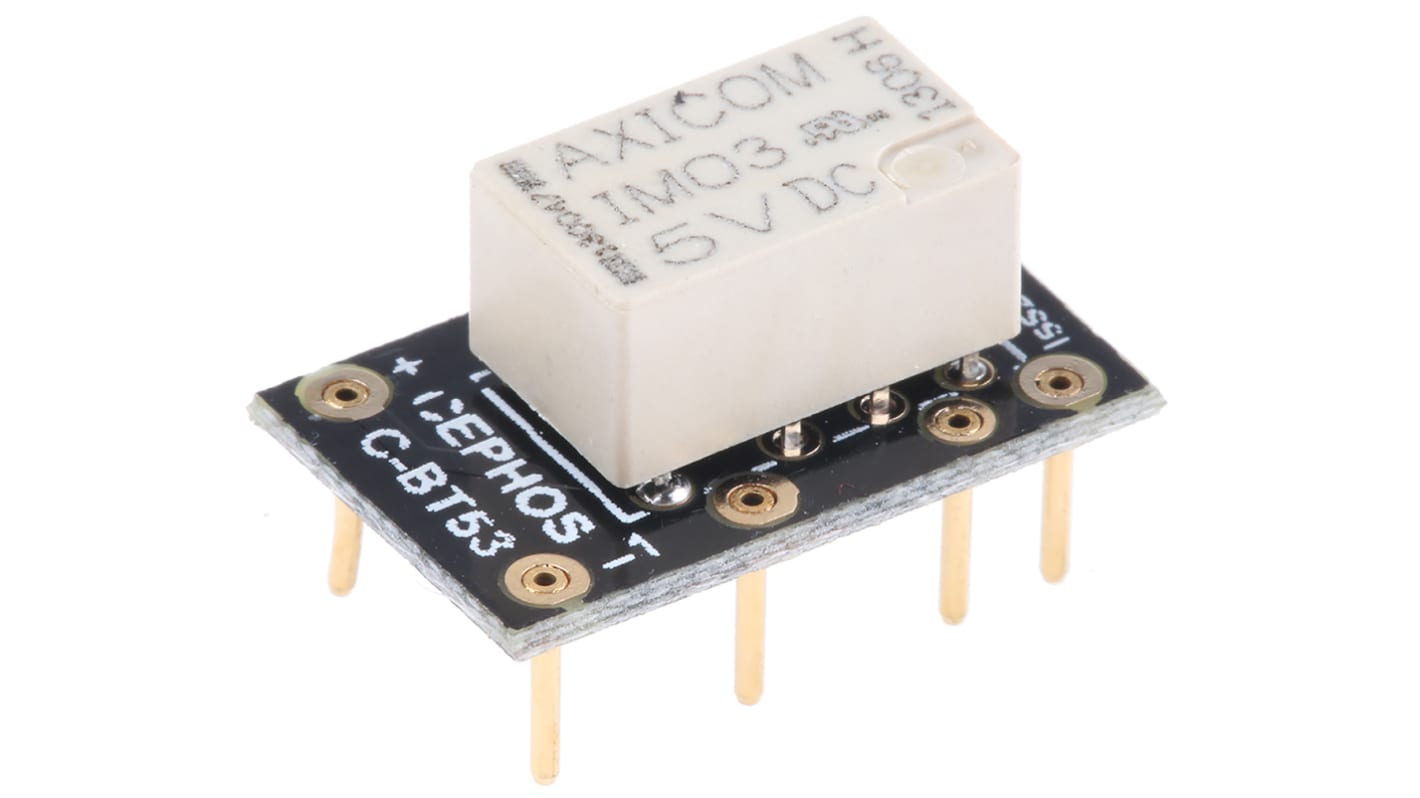

C-BT-53 Series Relay
Relay module to replace the obsolete BT53 series of small signal relays. The C-BT53 overall module dimensions are 16 x 10mm, identical to the original BT53, G5A-234P-53 and FBR46 footprints.
Direct replacement for the BT53 / BT53W series, Omron G5A-234P-53, Panasonic DF2 and Fujitsu FBR46 relays
Easy insertion into existing 12W dil socket, or direct soldering into printed circuit board
Easy insertion into existing 12W dil socket, or direct soldering into printed circuit board
