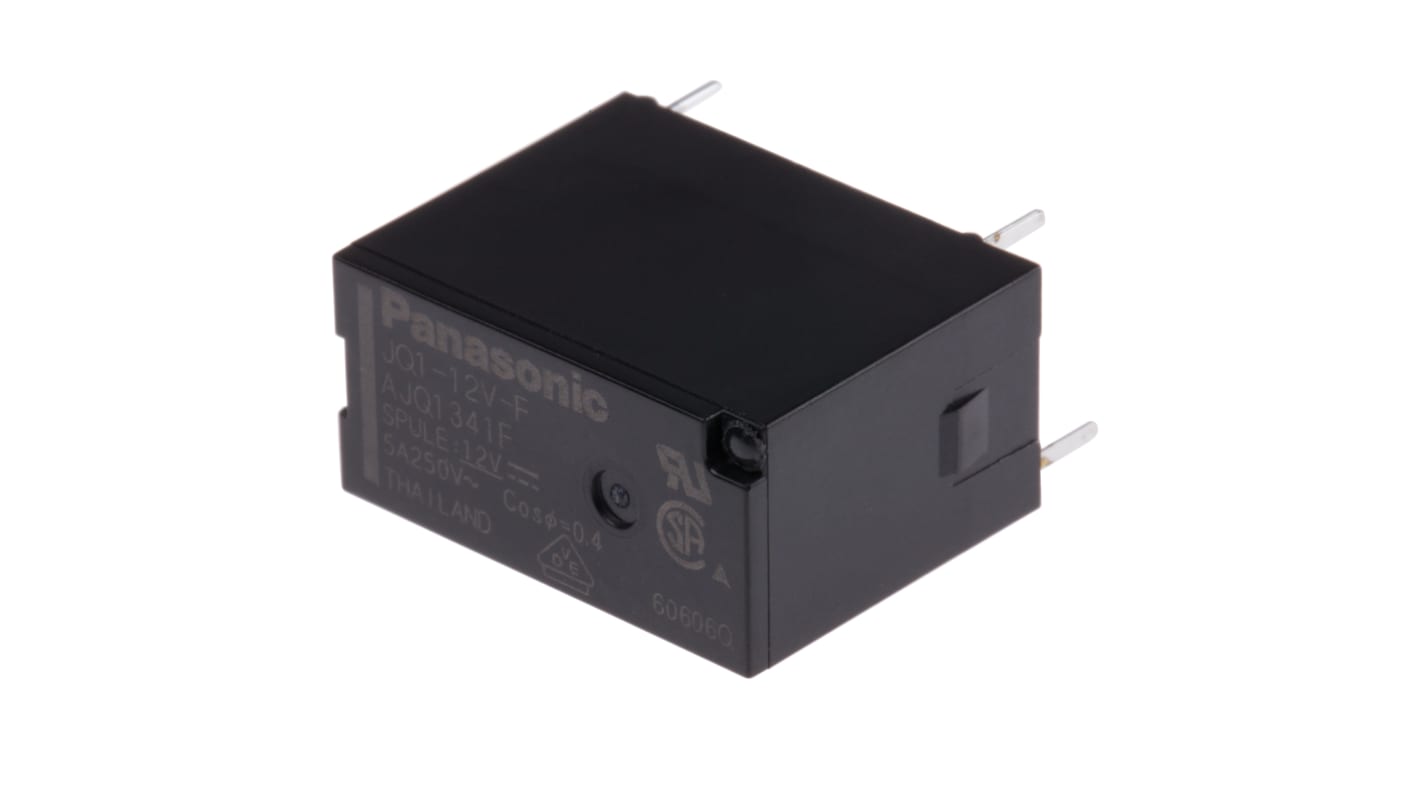

Panasonic PCB Mount Power Relay, 12V dc Coil, 5A Switching Current, SPDT
- RS Stock No.:
- 815-5127
- Mfr. Part No.:
- JQ1-12V-F
- Brand:
- Panasonic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.55
(exc. VAT)
£1.86
(inc. VAT)
- RS Stock No.:
- 815-5127
- Mfr. Part No.:
- JQ1-12V-F
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 5A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 110V | |
| Length | 10mm | |
| Coil Resistance | 360Ω | |
| Coil Power | 400mW | |
| Height | 16mm | |
| Maximum Operating Temperature | +70°C | |
| Life | 10^7 (Mechanical) Operations, 5 x 10^4 Operations | |
| Contact Material | Silver Alloy | |
| Minimum Operating Temperature | -40°C | |
| Isolation Coil To Contact | 4kVrms | |
| Depth | 20mm | |
| Maximum Switching Power DC | 625 W | |
| Maximum Switching Power AC | 90VA | |
| Application | Domestic Appliances, Heating Control | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 110V | ||
Length 10mm | ||
Coil Resistance 360Ω | ||
Coil Power 400mW | ||
Height 16mm | ||
Maximum Operating Temperature +70°C | ||
Life 10^7 (Mechanical) Operations, 5 x 10^4 Operations | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 4kVrms | ||
Depth 20mm | ||
Maximum Switching Power DC 625 W | ||
Maximum Switching Power AC 90VA | ||
Application Domestic Appliances, Heating Control | ||
- COO (Country of Origin):
- TH
JQ Series Relay
These PCB mount power relays offer a high electrical noise immunity, high switching capacity, high sensitivity and high surge voltage. Typical applications include air conditioners, refrigerators, microwave ovens and heaters.
High electrical noise immunity
High switching capacity in a compact package
High surge withstanding, 8000V between contact and coil
Dimensions, H15.6 x W20 x D10 mm
High switching capacity in a compact package
High surge withstanding, 8000V between contact and coil
Dimensions, H15.6 x W20 x D10 mm
Approvals
UL, CSA, VDE, SEMKO
