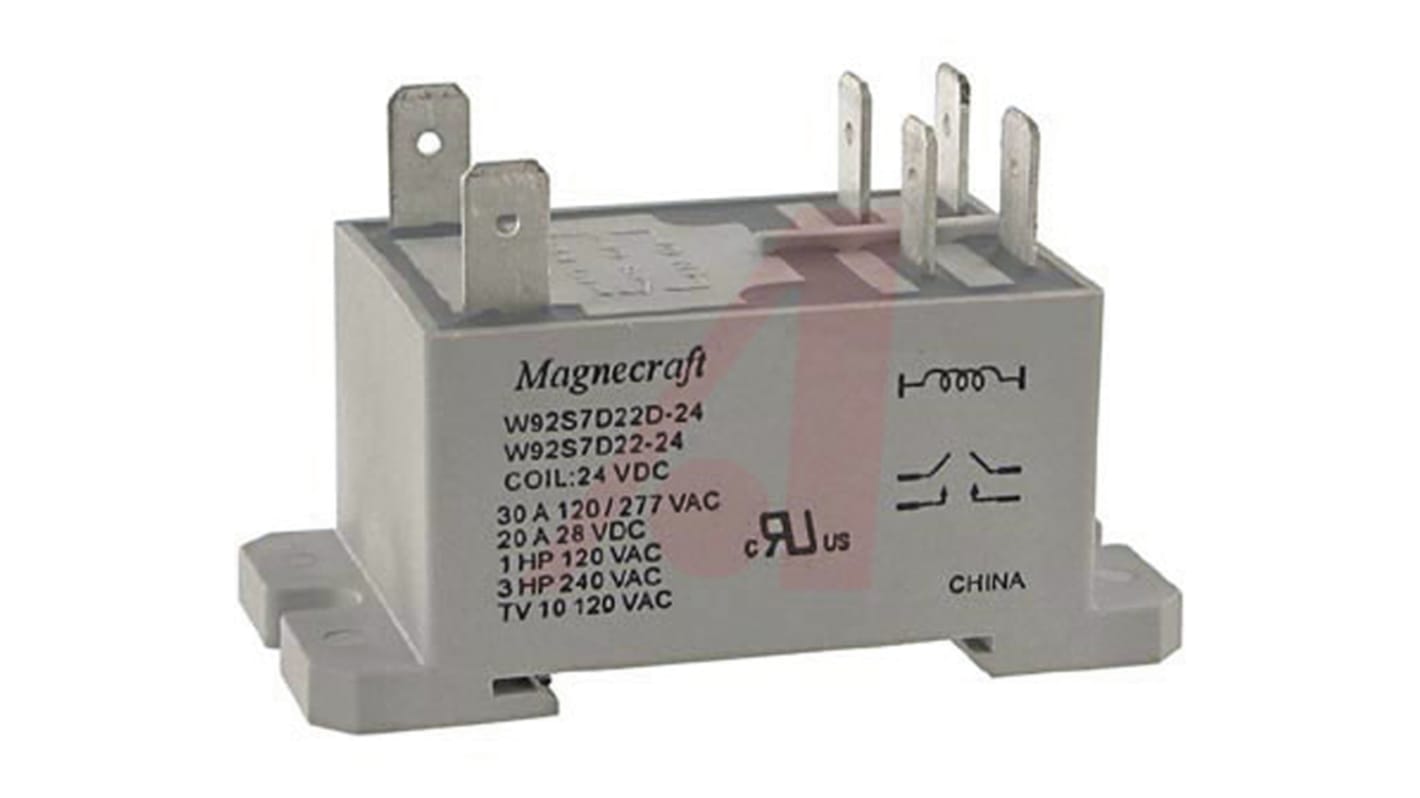

Schneider Electric Panel Mount Power Relay, 24V dc Coil, 20A Switching Current, DPST
- RS Stock No.:
- 814-8453
- Mfr. Part No.:
- 92S7D22D-24
- Brand:
- Schneider Electric
Discontinued
- RS Stock No.:
- 814-8453
- Mfr. Part No.:
- 92S7D22D-24
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPST | |
| Mounting Type | Panel Mount | |
| Switching Current | 20A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Quick Connect | |
| Maximum Switching Voltage AC | 300V | |
| Length | 33.7mm | |
| Coil Resistance | 350Ω | |
| Coil Power | 4W | |
| Life | 100000 cycles | |
| Contact Material | Silver Alloy | |
| Depth | 52mm | |
| Maximum Operating Temperature | +55°C | |
| Height | 30mm | |
| Isolation Coil To Contact | 4kV ac | |
| Minimum Operating Temperature | -40°C | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24V dc | ||
Contact Configuration DPST | ||
Mounting Type Panel Mount | ||
Switching Current 20A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 300V | ||
Length 33.7mm | ||
Coil Resistance 350Ω | ||
Coil Power 4W | ||
Life 100000 cycles | ||
Contact Material Silver Alloy | ||
Depth 52mm | ||
Maximum Operating Temperature +55°C | ||
Height 30mm | ||
Isolation Coil To Contact 4kV ac | ||
Minimum Operating Temperature -40°C | ||
Application Power | ||
- COO (Country of Origin):
- CN
92 Series Power Relays
The 92 series power relays offer a small package size and features Class F insulation for a maximum coil temperature of 155 ºC.
UL508 spacing
DIN and panel mount cover
Sealed construction
DIN and panel mount cover
Sealed construction
