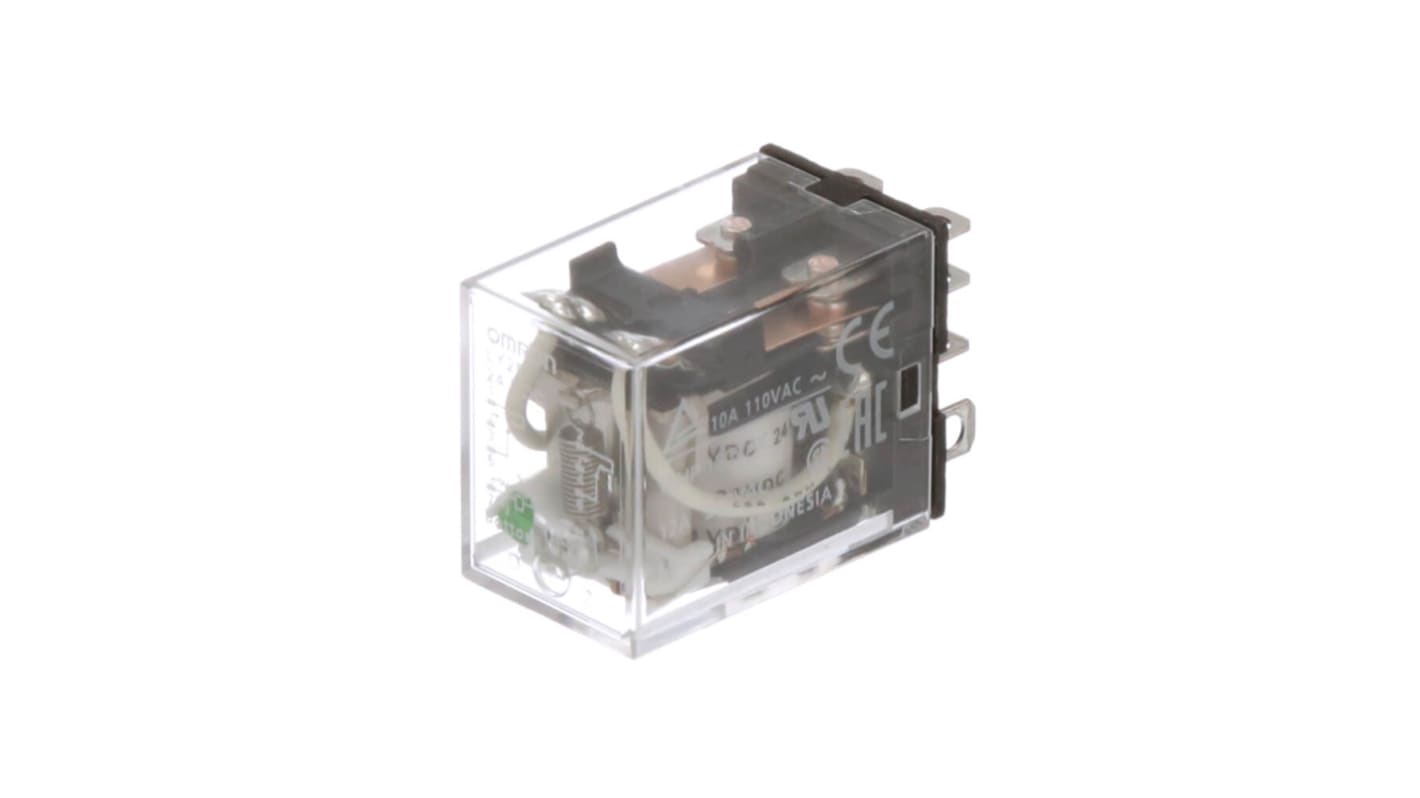

Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current
- RS Stock No.:
- 794-9334
- Mfr. Part No.:
- LY2N DC24
- Brand:
- Omron
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£19.51
(exc. VAT)
£23.41
(inc. VAT)
- RS Stock No.:
- 794-9334
- Mfr. Part No.:
- LY2N DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Mounting Type | Plug In | |
| Switching Current | 10A | |
| Latching | No | |
| Series | LY2N | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 125V dc | |
| Length | 28mm | |
| Coil Resistance | 650Ω | |
| Coil Power | 900mW | |
| Isolation Coil To Contact | 2kV ac | |
| Depth | 21.5mm | |
| Life | 1800 h | |
| Maximum Operating Temperature | +55°C | |
| Height | 36mm | |
| Minimum Operating Temperature | -25°C | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 1.1VA | |
| Maximum Switching Power DC | 900mW | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Latching No | ||
Series LY2N | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 28mm | ||
Coil Resistance 650Ω | ||
Coil Power 900mW | ||
Isolation Coil To Contact 2kV ac | ||
Depth 21.5mm | ||
Life 1800 h | ||
Maximum Operating Temperature +55°C | ||
Height 36mm | ||
Minimum Operating Temperature -25°C | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 1.1VA | ||
Maximum Switching Power DC 900mW | ||
Application Power | ||
- COO (Country of Origin):
- JP
Omron LY2N Series Power Relay, 24V DC Coil Voltage, 900mW Coil Power - LY2N DC24
This power relay is engineered for effective control within automation systems. Featuring a 24 V DC coil voltage, it is well-suited for applications that demand reliable switching operations. Its flexible contact arrangement makes it a valuable option for electrical and mechanical applications, ensuring stable performance across various conditions.
Features & Benefits
• DPDT contact configuration enables versatile circuit control
• Handles high relay switching voltages, offering increased adaptability
• Plug-in terminals simplify installation and relay replacement
• Supports currents up to 10 A, making it suitable for multiple uses
• Provides isolation between the coil and contact, enhancing safety
• Operates in temperatures ranging from -25 to +55°C, making it ideal for different environments
• Handles high relay switching voltages, offering increased adaptability
• Plug-in terminals simplify installation and relay replacement
• Supports currents up to 10 A, making it suitable for multiple uses
• Provides isolation between the coil and contact, enhancing safety
• Operates in temperatures ranging from -25 to +55°C, making it ideal for different environments
Applications
• Used for machinery control in industrial automation
• Applied in building management systems to improve energy efficiency
• Suitable for relay logic circuits in electronic equipment
• Employed in automotive systems for control and safety purposes
• Applied in building management systems to improve energy efficiency
• Suitable for relay logic circuits in electronic equipment
• Employed in automotive systems for control and safety purposes
How should I install the relay in my control panel?
Before installation, ensure that the power is turned off, plug the relay into its socket, and follow the circuit diagrams for proper configuration.
In which circuit conditions can it function?
It functions effectively in temperatures between -25°C and +55°C, allowing it to be used in both cooling and heating setups.
What is the maximum load capacity?
The relay can handle loads up to 10 A for both AC and DC circuits, provided you adhere to the switching voltage limits.
