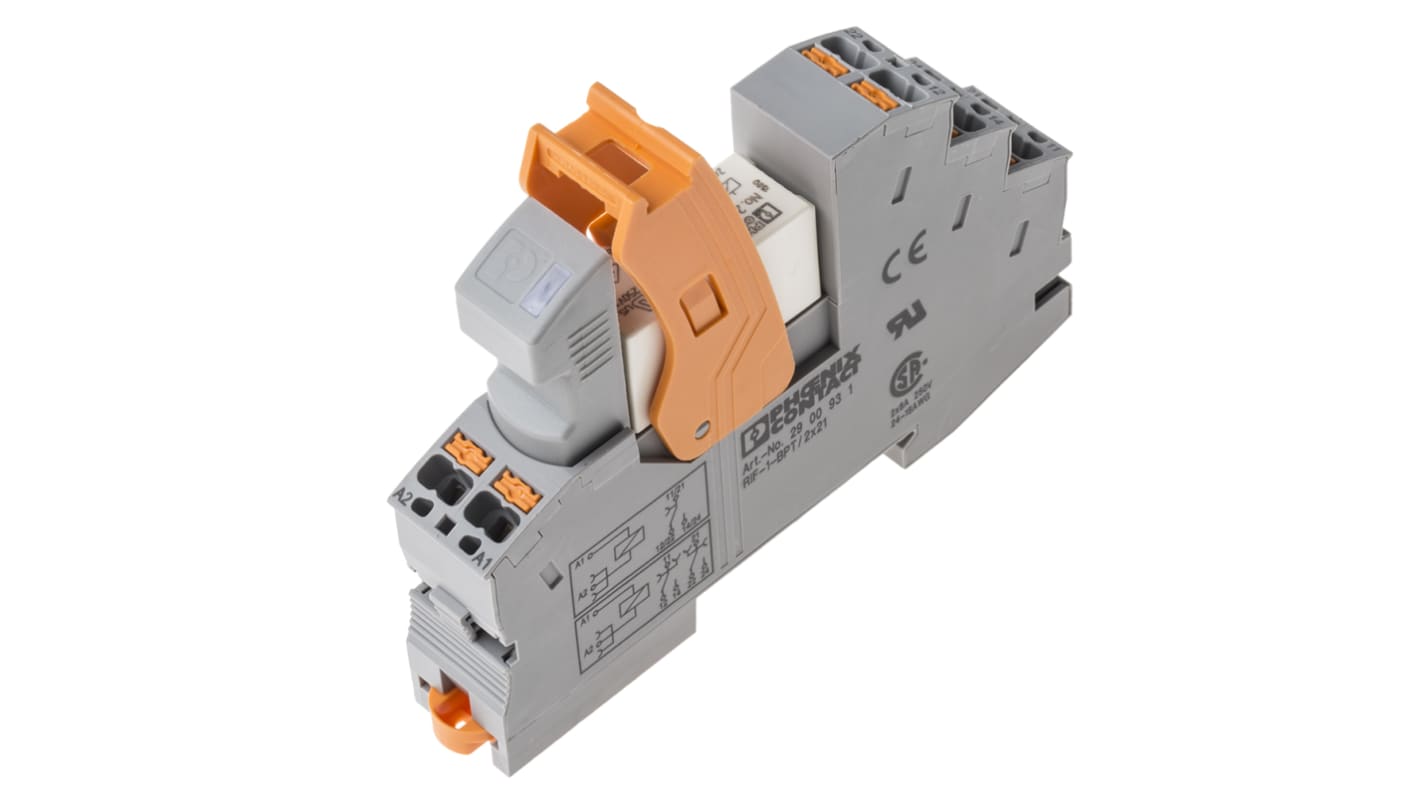

Phoenix Contact DIN Rail Non-Latching Relay, 24V dc Coil, 12A Switching Current, SPDT
- RS Stock No.:
- 794-3746
- Mfr. Part No.:
- 2903338
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 794-3746
- Mfr. Part No.:
- 2903338
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Switching Current | 12A | |
| Number of Poles | 1 | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 250V dc | |
| Length | 16mm | |
| Coil Resistance | 1.44 kΩ | |
| Coil Power | 400mW | |
| Height | 93mm | |
| Depth | 75mm | |
| Life | 10000000 (Mechanical) cycles | |
| Maximum Operating Temperature | +50°C | |
| Series | RIF-1-RPT-LDP-24DC/1X21AU | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power DC | 2 A | |
| Maximum Switching Power AC | 2 kVA | |
| Application | General Purpose | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Switching Current 12A | ||
Number of Poles 1 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 250V dc | ||
Length 16mm | ||
Coil Resistance 1.44 kΩ | ||
Coil Power 400mW | ||
Height 93mm | ||
Depth 75mm | ||
Life 10000000 (Mechanical) cycles | ||
Maximum Operating Temperature +50°C | ||
Series RIF-1-RPT-LDP-24DC/1X21AU | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Switching Power DC 2 A | ||
Maximum Switching Power AC 2 kVA | ||
Application General Purpose | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Phoenix Contact RIF1 Power Relay Module
A professional range of DIN rail mounting, power relays from Phoenix Contact that come with a base, suppressor and retaining bracket that benefits from a universal plug in design.
Features and Benefits
• Easy wiring due to push in connection technology
• Easy handling and extension of range
• Push-in connection
• AC and DC versions
• 1 and 2 contact options
• Yellow LED indicator
• Varistor or damping diode protective circuit
• DPDT and SPDT available
• Easy handling and extension of range
• Push-in connection
• AC and DC versions
• 1 and 2 contact options
• Yellow LED indicator
• Varistor or damping diode protective circuit
• DPDT and SPDT available
