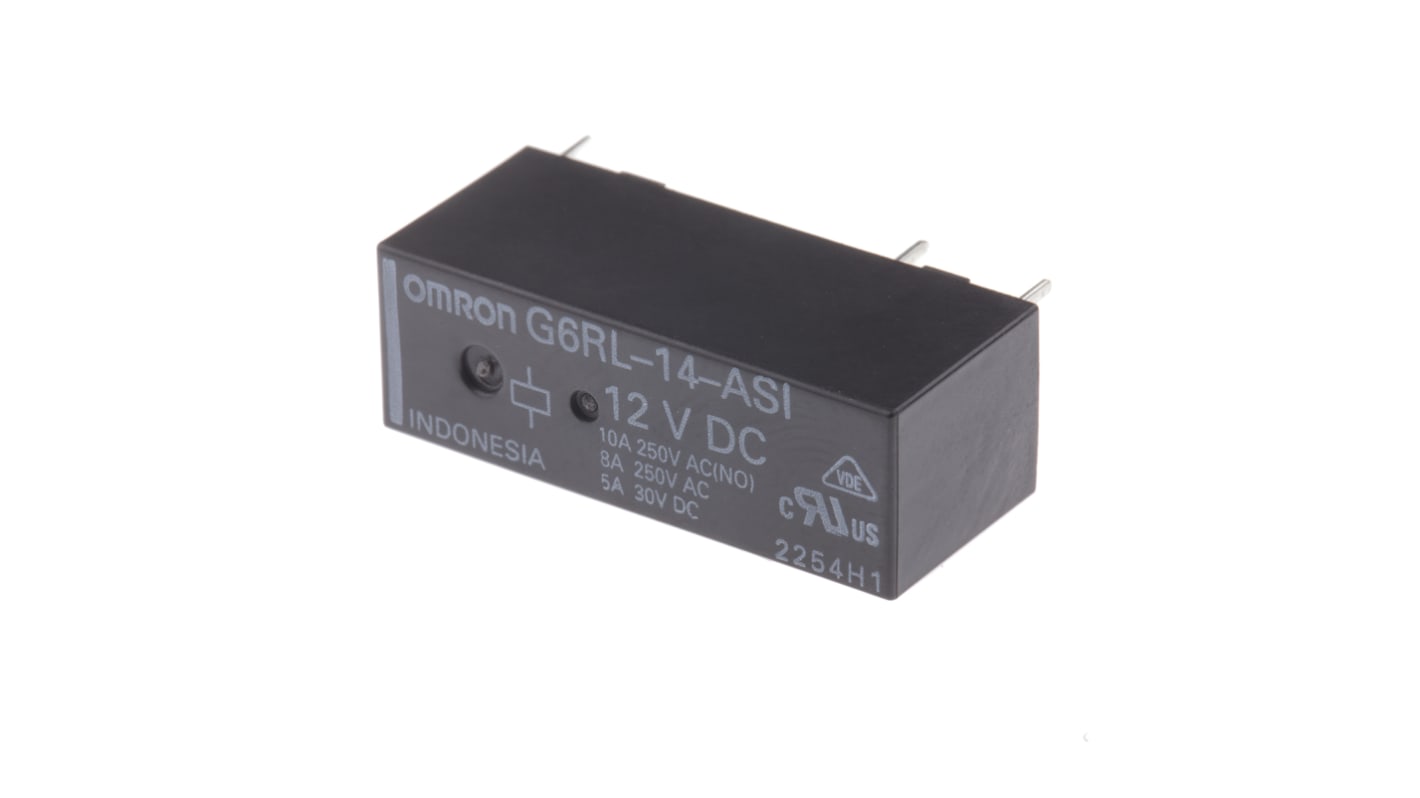

Omron PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 789-7545
- Mfr. Part No.:
- G6RL-14-ASI DC12
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£2.36
(exc. VAT)
£2.83
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 200 unit(s) shipping from 02 March 2026
- Plus 129 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.36 |
| 10 - 24 | £1.84 |
| 25 - 99 | £1.80 |
| 100 - 249 | £1.64 |
| 250 + | £1.51 |
*price indicative
- RS Stock No.:
- 789-7545
- Mfr. Part No.:
- G6RL-14-ASI DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 10A | |
| Number of Poles | 1 | |
| Latching | No | |
| Series | G6RL | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V ac | |
| Maximum Switching Voltage DC | 300V dc | |
| Length | 28.5mm | |
| Coil Resistance | 654Ω | |
| Coil Power | 220mW | |
| Isolation Coil To Contact | 5kV ac | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Silver Alloy | |
| Depth | 10mm | |
| Height | 12.3mm | |
| Minimum Operating Temperature | -40°C | |
| Life | 10000000 (Mechanical) Operations | |
| Maximum Switching Power AC | 2.5 kVA | |
| Maximum Switching Power DC | 150 W | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 1 | ||
Latching No | ||
Series G6RL | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 300V dc | ||
Length 28.5mm | ||
Coil Resistance 654Ω | ||
Coil Power 220mW | ||
Isolation Coil To Contact 5kV ac | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver Alloy | ||
Depth 10mm | ||
Height 12.3mm | ||
Minimum Operating Temperature -40°C | ||
Life 10000000 (Mechanical) Operations | ||
Maximum Switching Power AC 2.5 kVA | ||
Maximum Switching Power DC 150 W | ||
Application Power | ||
- COO (Country of Origin):
- ID
G6RL Series
Available in SPST-NO and SPDT contact forms
Low profile: 12.3mm max height
Flux proof
Clearance and creepage distance 10 mm
Low coil power consumption: 220mW (typical)
Low profile: 12.3mm max height
Flux proof
Clearance and creepage distance 10 mm
Low coil power consumption: 220mW (typical)
Approvals
UL 508 (File no. E41643), VDE
