- RS Stock No.:
- 775-5202
- Mfr. Part No.:
- 1SVR405600R3000 CR-P230AC1
- Brand:
- ABB
50 In stock - FREE next working day delivery available
Added
Price Each
£6.18
(exc. VAT)
£7.42
(inc. VAT)
Units | Per unit |
1 + | £6.18 |
- RS Stock No.:
- 775-5202
- Mfr. Part No.:
- 1SVR405600R3000 CR-P230AC1
- Brand:
- ABB
Technical Reference
Legislation and Compliance
Product Details

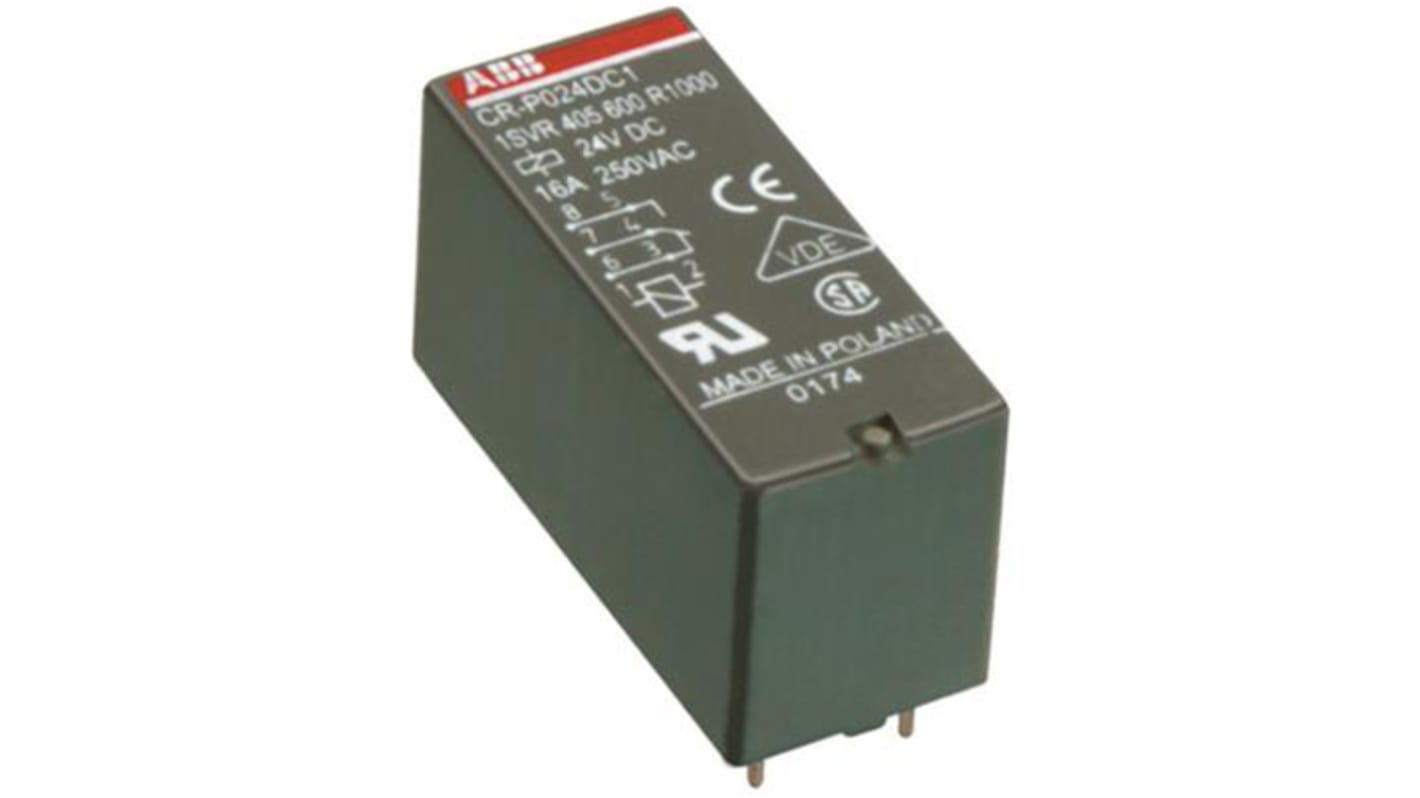

Pluggable Interface Relays CR-P Series
The CR-P series of pluggable interface relays from ABB are standard PCB relays that can be used for electrical isolation, amplification and signal matching between the electronic controlling, e.g. PLC (programmable logic controller), PC or field bus systems and the sensor/actuator level. These interface relays do not use additional internal protective circuits and therefore are overload-proof against short-time variations like current or voltage peaks.
Output contacts: 1 C/O (16 A) or 2 C/O (8 A)
Cadmium-free contact material
Suited for logical and standard sockets
Width on socket: 15.5 mm
Cadmium-free contact material
Suited for logical and standard sockets
Width on socket: 15.5 mm
Specifications
Attribute | Value |
---|---|
Coil Voltage | 230V ac |
Contact Configuration | SPDT |
Mounting Type | Plug In |
Switching Current | 16A |
Terminal Type | PCB Pin |
Length | 35mm |
Depth | 35mm |
Maximum Operating Temperature | +55°C |
Series | CR-P |
Contact Material | Silver Alloy |
Height | 54.4mm |
Minimum Operating Temperature | -40°C |
Dimensions | 35 x 35 x 54.4mm |
