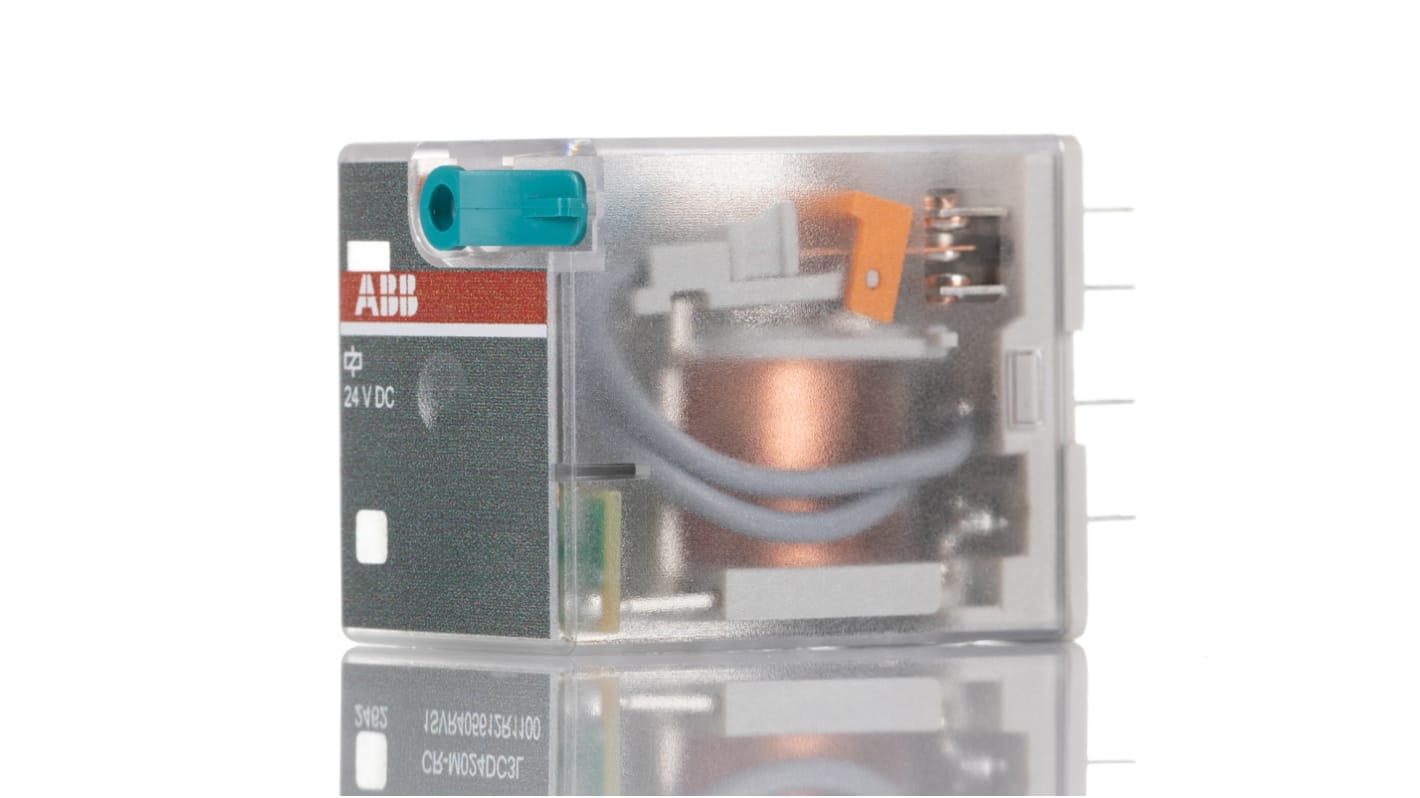

ABB Plug In Power Relay, 24V dc Coil, 12A Switching Current, SPDT
- RS Stock No.:
- 775-5081
- Mfr. Part No.:
- 1SVR405611R1000 CR-M024DC2
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£7.12
(exc. VAT)
£8.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £7.12 |
| 5 - 9 | £6.75 |
| 10 - 24 | £6.40 |
| 25 - 49 | £6.05 |
| 50 + | £5.71 |
*price indicative
- RS Stock No.:
- 775-5081
- Mfr. Part No.:
- 1SVR405611R1000 CR-M024DC2
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | Plug In | |
| Switching Current | 12A | |
| Series | CR-M | |
| Terminal Type | Cage Clamp, Fork, Screw | |
| Length | 21.2mm | |
| Height | 35.6mm | |
| Depth | 27.5mm | |
| Standards Met | CE, EAC | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Silver Alloy | |
| Minimum Operating Temperature | -40°C | |
| Width | 21.2mm | |
| Application | Interface | |
| Dimensions | 21.2 x 27.5 x 35.6mm | |
Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type Plug In | ||
Switching Current 12A | ||
Series CR-M | ||
Terminal Type Cage Clamp, Fork, Screw | ||
Length 21.2mm | ||
Height 35.6mm | ||
Depth 27.5mm | ||
Standards Met CE, EAC | ||
Maximum Operating Temperature +70°C | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Width 21.2mm | ||
Application Interface | ||
Dimensions 21.2 x 27.5 x 35.6mm | ||
ABB Power Relay, 21.2mm Length, SPDT Contact Configuration - CR-M Series - 1SVR405611R1000 CR-M024DC2
For reliable switching of your circuits, choose this power relay from ABB. It has a 24V DC coil voltage and 250V AC/DC switching voltage, so it's suitable for low to medium-voltage electrical setups. With its slim measurements of 21.2 (W) x 35.6 (H) x 27.5mm (D), this product fits easily into a small enclosure. Its wide operating temperature range between -40°C and +70°C makes it the ideal choice for harsh work environments. You'll find a relay like this one in industrial automation and control systems, as well as controlling HVAC components.
Features & Benefits
• DIN rail mounting ensures a simple, speedy setup
• Integrated test button makes maintenance and troubleshooting easy
• LED indicator for monitoring the status of the device
• Light weight of 33g won't strain the mounting surface
• Integrated test button makes maintenance and troubleshooting easy
• LED indicator for monitoring the status of the device
• Light weight of 33g won't strain the mounting surface
Applications
• Automotive electronics
• Audio amplification
• Computer systems
• Telecommunications equipment
• Audio amplification
• Computer systems
• Telecommunications equipment
How many output circuits can I control with this unit?
You can use it to control up to two circuits. It has two changeover (C/O) SPDT contacts, so it pulls double duty for you.
